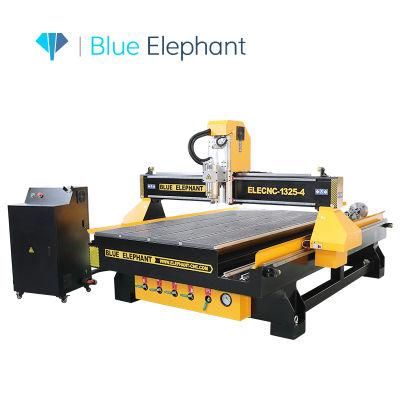

• Model NO.：ELE1325
• Customized：Customized
• Condition：New
• Color：Customized
• Working Area：1300*2500*200mm
• Control System：DSP A18 Controller
• Spindle：Italy Hsd Air Cooling Spindle
• Spindle Power：4.5kw
• Spindle Speed：0-18000rpm
• Motor：FL118 Stepper Motor
• Driver：Yako 2608 Driver
• Inverter：5.5kw Taiwan Delta Inverter
• Table Surface：T-Slot and Vacuum Working Table
• Application：Wood, MDF, Plywood, Acrylic, Soft Metal etc.
• Transport Package：Standard Export Wooden Case
• Specification：1300*2500*200mm
• Trademark：BLUE ELEPHANT
• Origin：Jinan City, Shandong Province, China
• Production Capacity：200set,Sets Per Month

Description

Parameter

X,Y,Z Working Area

1300x2500x200mm

Table Surface

Vacuum and T-slot working table,4 zones

Frame

New style heavy duty Welded Structure

X, Y Structure

Rack and Pinion Drive, #20 Hiwin Rail Linear Bearings

Z Structure

Hiwin Rail Linear Bearings and Ball Screw

Spindle Power

4.5kw Italy HSD air cooling spindle

Spindle Speed

0-18000RPM

Inverter

5.5kw Delta inverter

Drive Motors

Stepper

Working Voltage

380v, 3 phase, 50/60HZ(Option: AC220V/50/60Hz,3PH)

Command Language

G Code

Operating System

DSP A18

Computer Interface

USB

Rotary device

200mm diameter*2200mm length

Collet

ER32

X,Y Resolution

<0.01mm

Software Compatibility

Type3/UcancameV9 Software, (Option: Artcam Software)

Running Environment  Temperature

0 - 45 Centigrade

Relative Humidity

30% - 75%

PS:All the working area and specifications can be customized according to your requests.

Applicantions:

1. WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash,composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

2.Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting,crystal word making, blaster molding, and other advertising materials derivatives making.

3.Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting,PVC pipe, wooden planks and other non-metallic mold.

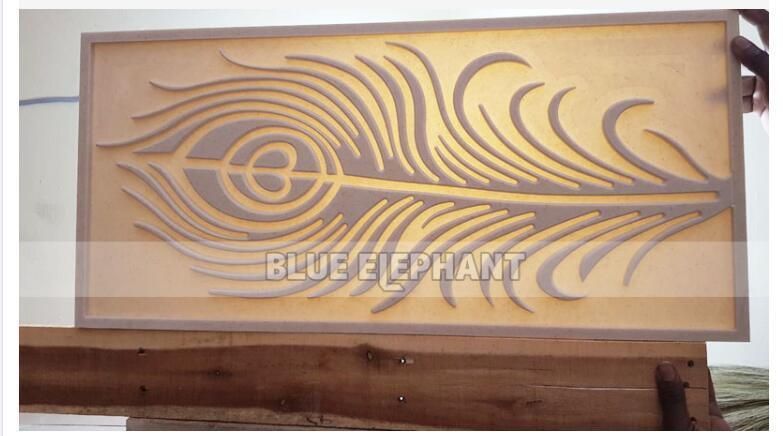

4.relief sculpture and 3D engraving

5.Cylindrical object

Packaging and shipping:

1.Outside Package: Standard export wooden case .
2.Inner package: strech film .
For shipping, you can choose the sea shipping,air shipping or the transmission of expressage: DHL/TNT/Fedex.

For terms of payment, you can choose the EXW/FOB/CIF/DDP/DDU.It depends on what you would like better.

Our Service:
1, Within 7 days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or MSN) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered, operation disk/CD was included.

Welcome to our factory:

• Jinan Blue Elephant CNC Machinery Co., Ltd is located in Jinan City, Shandong Province. We have always been developed to the research and manufacturer of CNC router machine and laser cutting engraving machine.
• We have our R & D department, Quality control department, and after sale & service department.
• Our products are widely used in Woodworking, Advertising, Model, Electric, CAD/CAM Industry model, Clothing, Package Printing, Marking, Laser sealing and so on.
• We had got CE and ISO9001 certification always offer best quality machine.
• Our Philosophy: To Be First Brand -- CNC Manufacturer & wholesaler Platform!

• Just looking forward to service every customer, like you.

Contact us:

Web: blueelephant-cnc.en.made-in-china.com
