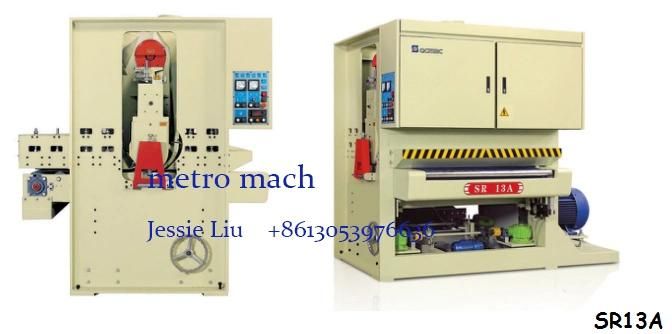

• Model NO.：SR13A
• Color：Customized
• Transport Package：Standard Export Packaging or as Per Your Request
• Specification：2120x2980x2440mm
• Trademark：METRO MACH
• Origin：Shandong, China (Mainland)
• Production Capacity：10~70m,Min

Basic Info.

Model NO. SR13A Color Customized Transport Package Standard Export Packaging or as Per Your Request Specification 2120x2980x2440mm Trademark METRO MACH Origin Shandong, China (Mainland) Production Capacity 10~70m/Min

Product Description

       The machine frame adopts welding integral structure to improve the machine's rigidity and service life of the machine. The roller is made of steel and has been dynamic balance precisely,which makes running smoothly and improves the sanding power. The feeding drive adopts frequency-controller and conveyer belt, than can get high precise thickness. The beam is strong and reliable, which supplies a stable sanding precision.

Working Width	40~1300mm
Working thickness	3~110mm
Working Length	≥750mm
Abrasive belt speed	20m/s
Feed speed	10~70m/min
Size of abrasive belt(W x P)	1300x2615mm
Total motor power	64kw
Main motor power	55kw
Working air pressure	0.55Mpa
Consumption of compressed air	0.1m³/min
Volume of sucked air	10000m3/h
Speed of sucked air	25-30m/s
Overall dimension (L x W x H)	2120x2980x2440mm
Net Weight	6500kg












Pre-sale services:
1) Provide the free consultation of the equipment
2) Provide the standard device and the flow chart
3) According to the clients' special requirement, offering the reasonable plan and free design to help to select the equipment.
4) Welcome to visit our factory
Services during the sales:
1) Inspect the machine before leaving the factory.
2) Oversea install and debug the equipment
3) Train the first-line operator.
After sale services:
1) 24 hours online service
2) Provide the video  with Install and debug the equipment
3) Provide technical exchanging
