• Model NO.：GLMC-3
• Working Platform Size：2700*1370mm
• Raw Material：Q235 Steel
• Power：26kw
• Opening Space：500mm*3
• Upper and Bottom Beam Height：1000mm
• Voltage：380V
• Color：Sky-Blue
• Weight：28000kgs
• Condition：New
• Warranty：1 Year
• Transport Package：Standard Packaging
• Specification：4*8 feet
• Trademark：Geelong
• Origin：Shandong, China
• HS Code：8401200000
• Production Capacity：20 Sets Per Month

Multi-Layer Cold Press Machine ParameterModelGLMC-3Layer3Pressure600TWorking Platform Dimension 2700*1370mmTotal Dimesion3750*2000*5140Raw MaterialQ235 SteelEach Layer Opening Space400mm-500mmEach Layer Motor Power1.5kWFeedeing Speed12m/minHydrulic Station Power22.5kWMain Hydrulic Cyliner 360mm*1500mm*2PcsLift Hydrulic Cyliner 180mm*1PcsTotal Power27.5ColorSky-buleDirection for use
Cold presses are used for pre-compression work after veneer gluing. Our multi-layer cold presses are simple to use, highly automated, and capable of rapid veneer forming. When the glued veneer is transferred, the automatic feeder will rise to the corresponding layer for feeding. When the feeding is completed, the cold press will automatically close, and then the cold press will work according to the set time. After the work is finished, Open automatically, and then each layer will be unloaded automatically.


Single-Layer Transmission
Separate transmission system on each floor for automatic loading and unloading.

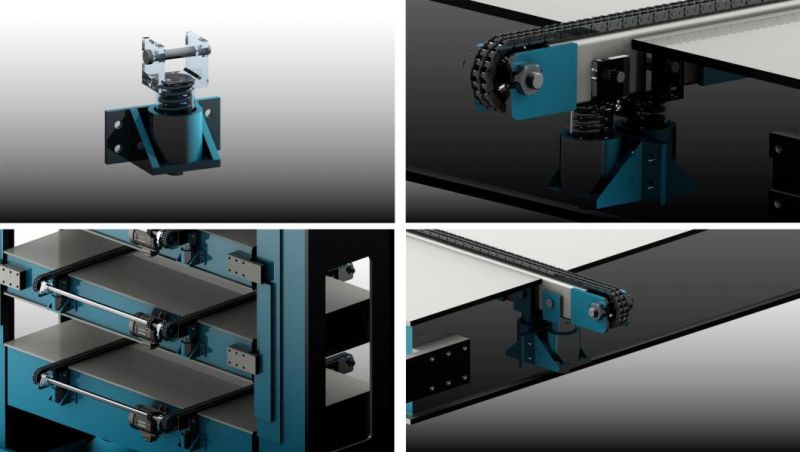

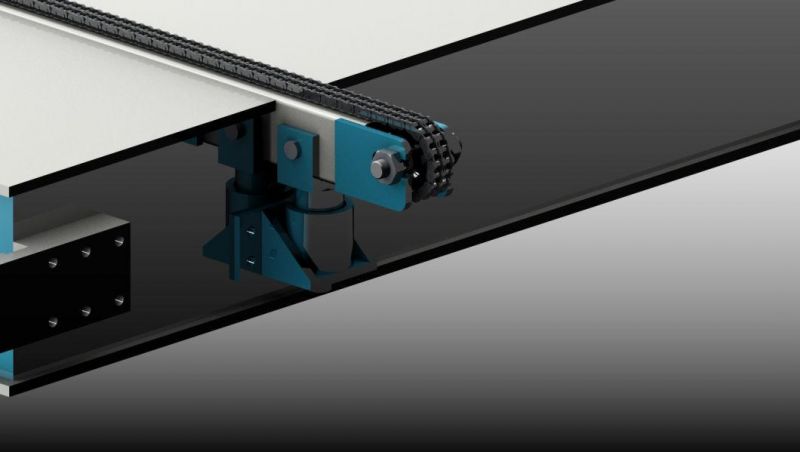

Buffering and Transmission
Spring buffer and chain transmission system. When the press is feeding, the chain will transfer the veneer into the cold press under the drag of the motor. When the press is closed, the spring is compressed. After the work of the cold press is completed, the oil cylinder will drop. The pressure between each layer decreases while the springs stretch.

Detailed Images
Multi-layer Pre-press machine are used for hight quality plywood board making process, looking the machine details.

Packing&Shipping

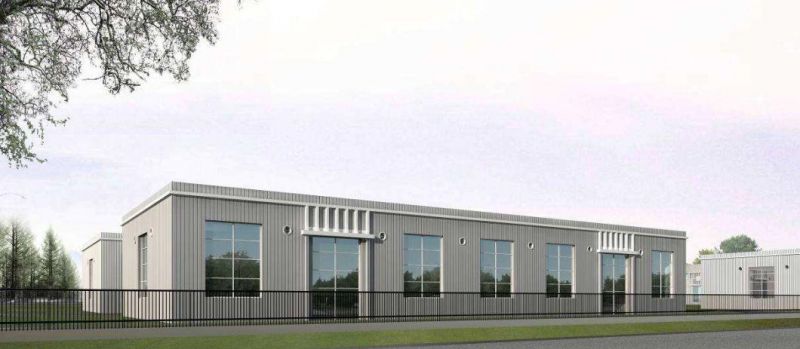

Our company


China Geelong Machinery Manufacture Company Limited.(Linyi Geelong Imp. & Exp.Co., Ltd.) is a professional machinery company in producing and selling plywood machine, particle board machine, MDF/HDF machine, flooring machine, lamination press, located in beautiful logistics city "LINYI", and also won license for direct import and export by the state government.

After 20 years' experience and development, it always adheres to the independent innovation and scientific development way. Now leading products and auxiliary products follow the market demand and upgrade uncreasingly. Specializing in the production of various professional plywood, flooring, laminated board, particle board, MDF/HDF, OSB complete lines and equipment. Machines are also exported to 20 countries and districts in Asia, Europe, Africa and America with high-quality products and best service, it has won the recognition of customers inner China and abroad.

Geelong machinery, hailed in wood-based machinery, flight being as leading manufacturers and exporters in same industry, one time cooperation, whole life friends.
