• Model NO.：DW1590
• Customized：Customized
• Condition：New
• Color：Customized
• Table：T-Slot Use Material Hold to Fix Raw Material
• Spindle Power：6kw
• OEM：Accepted
• Customization：Accepted
• Machine Structure：Aluminium Alloy and Cast Steel
• Working Area：1500X900mm
• Control System：Nc Studio,DSP
• Motor：Leadshine Stepper Motor and Driver
• Rail：Hiwin Square Rail
• Warranty：18 Months
• Transport Package：Plywood Box, Free From Fumigation
• Specification：CE
• Trademark：dwin made in china
• Origin：Jinan, Shandong, China
• HS Code：846599
• Production Capacity：50 Sets Per Month

Number
Description
Parameter
1
X,Y,Z Working Area
900x1500x200mm
3
X,Y,Z Traveling Positioning Accuracy
±0.03/300mm
4
X,Y,Z Repositioning Accuracy
±0.03mm
5
Table Surface
Vacuum&T-slot Table
6
Frame
Welded Structure,heavy duty T-structure
7
X, Y Structure
Helical Rack gear,
Taiwan Hiwin/PMI Rail Linear Bearings
8
Z Structure
Taiwan TBI Ball Screw
Taiwan Hiwin/PMI Rail Linear Bearings
9
Max. Power Consumption
2.0KW
10
Max. Rapid Travel Rate
45000mm/min
11
Max. Working Speed
30000mm/min
12
Spindle Power
3KW HSD air cooling spindle(optional)
13
Spindle Speed
0-24000RPM
14
Drive Motors
Delta servo motor (optional)
15
Working Voltage
AC380V/50/60Hz,3PH (Option: 220V)
16
Command Language
G Code
17
Operating System
DSP  (Options: Ncstudio /Mach3 Software)
18
Computer Interface
USB
19
Flash Memory
128M(U Disk)
20
Collet
ER25
21
X,Y Resolution
<0.01mm
22
Software Compatibility
Type3 Software, (Option: Artcam Software)
23
Running Environment  Temperature
0 - 45 Centigrade
24
Relative Humidity
30% - 75%

Features of  metal cnc router:

1. DW-9015 is an economic processing center, with a row of knife. It is equipped with leading international components.

2. The work table is international leading vacuum adsorption. It is made from bakelite with high-strength, vacuum adsorption. It can adsorb different size materials.

3. Optional wheels help move the machine,more convenient.  Optional air gun help clean theworktable.

4. With DSP control system, It can support offline operation.

5. HIWIN/PMI linear rail from Taiwan for 3 axes, more stable and precise,low noise,and its lifetimeis 10 times longer than common rail way.

6.Standard configured with Italy HSD air cooling spindle, high power and efficient. Very famous brand,has after-sale service all over the world. Matched with Taiwan DELTA inverter.

7.Helical rack gear transmission,which can ensure faster speed,higher efficiency,stronger power,longerlifetime,and it makes the machine more stable.

8.Standard configured with stepper motor FL118 and YAKO 2811 big driver,very powerful. For option,we can change toJapan YASKAWA servo or Taiwan DELTA servo motors and drivers.


Applications of metal cnc router:

1). WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

2).Advertising Industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal word making,blaster molding, and other advertising materials derivatives making.

3). Die Industry:A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand,plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.

4). Relief Sculpture and 3D Engraving

5).Cylindrical object

Our service:

1. Professional English speaking engineers are online ready for your troubleshooting service. It is reachable in an easy way.

2. We guarantee prompt warranty service for main parts repairmen and replacement by international courier. (DHL, FEDEX, UPS, TNT)

3. We can give quick response for on site overseas service requests and offer 7 days' free training and installation service when customer bear the traveling expense including visa, round trip tickets, boarding and lodging at service place.

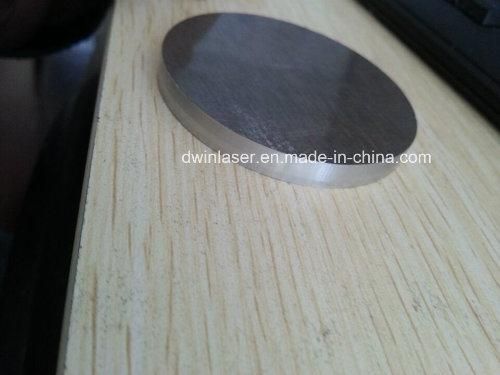

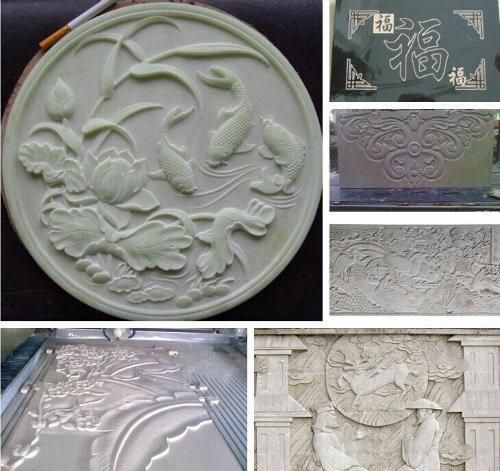

Samples and customers:
