• Model NO.：SMV8D
• Certification：CE, ISO
• Customized：Customized
• Condition：New
• Color：Customized
• Transport Package：Wood Box
• Specification：3250*3150*900 mm
• Trademark：ZhongDing
• Origin：China
• HS Code：84659100
• Production Capacity：200 Set,Month

Basic Info.

Model NO. SMV8D Certification CE, ISO Customized Customized Condition New Color Customized Transport Package Wood Box Specification 3250*3150*900 mm Trademark ZhongDing Origin China HS Code 84659100 Production Capacity 200 Set/Month

Product Description

Product Description

Table Saw Type	SMV8D
Dimension of sliding table	3200x375 mm
Gross cut capacity	3200 mm
Width of cut between saw blade and rip fence	1250 mm
Tilting saw group	45-90°
Diameter of main saw blade	300 mm
Max cutting height (90°)	80 mm
Speed of main saw spindle	4000/6000 r.p.m
Main saw motor power	5.5 kw
Main spindle diameter	30 mm
Diameter of scoring saw blade	120 mm
Speed of scoring saw spindle	8000 r.p.m
Scoring saw motor power	1.1 kw
Scoring saw spindle diameter	20 mm
Weight	760 KGS
Overall dimension	3250x3150x900 mm
Motor	380v, 3 phase 50Hz  (Customized)

Feature:

1. Apply to processing all kinds of density boards, shaving boards, artificial board, ABS board, PVC board, organic glass plates and solid wood and others with wood structure and similar hardness.
2. Moveable table guide track is chromium steel bar structure, exact and durable
3. The sliding table is made of high strength extruded aluminum alloy, and it is high in strength and won't bent
4. With oxidation treatment, the sliding table surface is beautiful and durable
5. The body is welded with heavy-duty steel and with special heat treatment, better stability and lower noise

The saw blade lifting is electrical controlled with titling digital display to make the operation

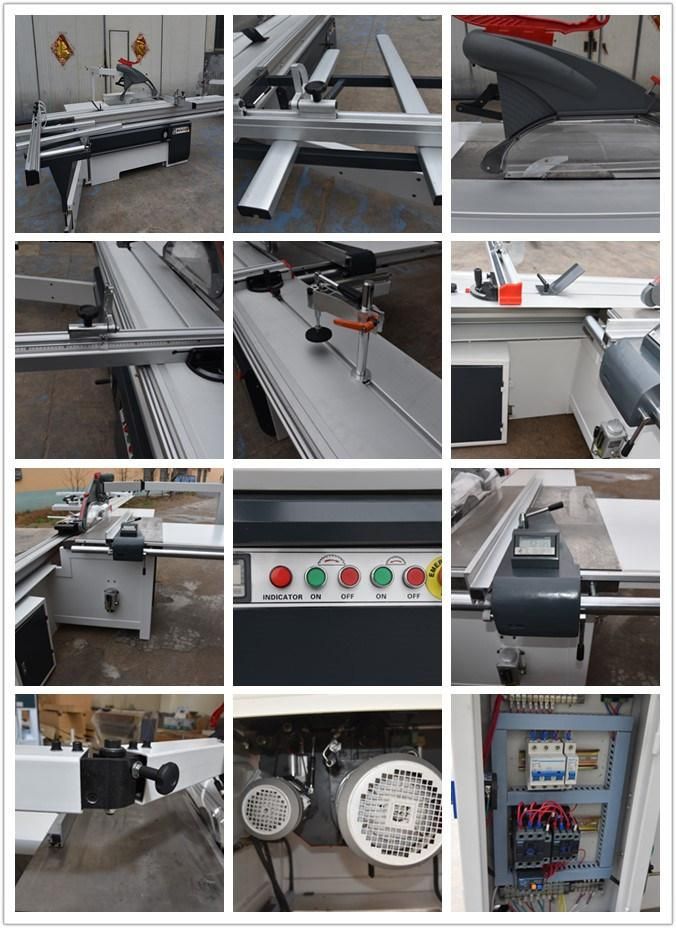

Product details:







Other information:
1) Term of payment: T/T, 30% deposit and the balance is paid before delivery
2) Delivery: 25days
3) Machine voltage: optional
4) Warranty: 1 year
5) MOQ: 1 Set
6) OEM service is ok
7) HS code: 84659100
8) Certificate: CE&ISO 9000 Certificate
