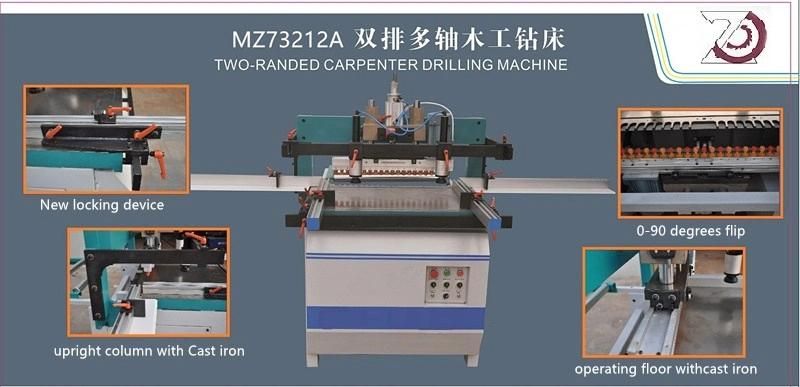

Hot Sale Woodworking Machine Double Row Multiple Drilling Machine
Qingdao Zhongding Machinery Co., Ltd.- Structure：Horizontal Drilling Machine
- Layout：Horizontal
- Controlling Mode：CNC
- Automatic Grade：Automatic
- Precision：Precision
- Certification：CE, ISO
Base Info
- Model NO.：MZ73212A
- Energy Saving：Energy Saving
- Warranty：1 Year
- Customized：Customized
- Condition：New
- Transport Package：Wooden Case
- Specification：2.4CBM
- Trademark：QDZD
- Origin：China
- HS Code：84659500
- Production Capacity：500sets,Year
Description
Basic Info.
Model NO. MZ73212A Energy Saving Energy Saving Warranty 1 Year Customized Customized Condition New Transport Package Wooden Case Specification 2.4CBM Trademark QDZD Origin China HS Code 84659500 Production Capacity 500sets/YearProduct Description
hot sale Woodworking machine double row multiple drilling machineTechnical Specification:
| Max. diameter of holes | 35 mm |
| Depth of drilled holes | 0-60 mm |
| The number of spindles | 21*2 |
| Center distance between spindles | 32 mm |
| Rotation of spindle | 2840 r/min |
| Max dimensions of piece to be drilled | 2500*920*70 mm |
| Total power | 3 kw |
| Air pressure | 0.5-0.8 Mpa |
| Gas consumption of drilling 10 panels per minute | 10L/min approximately |
| Suitable voltage | ~380 V |
| Max distance of the two longitudinal heads | 380 mm |
| Min distance of the two longitudinal heads | 0 mm |
| Height of working plat form off ground | 900 mm |
| Weight of the whole machine | 680 kg |
| Over size | 1900*2600*1600 mm |
| Packing size | 1100*1300*1700 mm |

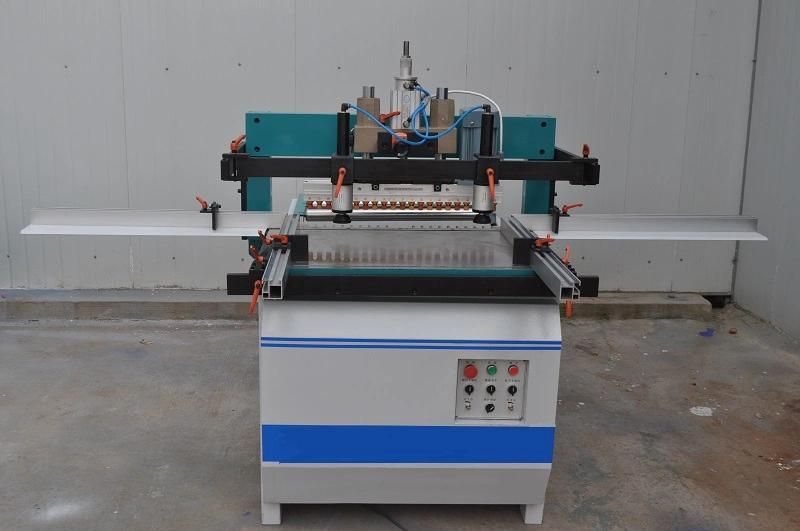

Product Details:
Our Services:
(1) Pre-sale services:
* Provide the free consultation of the equipment .
* Provide the standard device and the flow chart.
* According to the clients' special requirement, offering the reasonable plan and free design helping to
select the equipment.
* Welcome to visit our factory.
(2)Services during the sales:
* Inspect the machine before leaving the factory.
* Oversea install and debug the equipment.
* Train the first-line operator.
(3)After sale services:
* 24 hours online service.
* Provide the VIDEO with Install and debug the equipment.
* Provide technical exchanging
Our company:
Certificate:
Qingdao Zhongding Machinery Co., Ltd is professional at manufacturing woodworking machines. Our main products includes: sliding table saw(panel saw), edge banding machine, hydraulic cold press, hot press, carpenter drilling machine ( boring machine), etc. We are factory, we provide the machine with reasonable price and high quality, and welcome to visit our factory and our products.
