• Model NO.：MF450C
• Panel Thinkness：10-60mm
• Min.length panel：100mm
• Min.width panel：50mm
• Manufacturing Principles：Glue Tank Underneath
• Customized：Customized
• After-sales Service：Overseas Third Party Services
• Transport Package：Wood Carton
• Specification：6730*880*1580mm
• Trademark：ZhongDing
• Origin：China
• HS Code：84659400
• Production Capacity：200 Set,Month

Basic Info.

Model NO. MF450C Panel Thinkness 10-60mm Min.length panel 100mm Min.width panel 50mm Manufacturing Principles Glue Tank Underneath Customized Customized After-sales Service Overseas Third Party Services Transport Package Wood Carton Specification 6730*880*1580mm Trademark ZhongDing Origin China HS Code 84659400 Production Capacity 200 Set/Month

Product Description

Qingdao Zhongding Woodworking Machinery Co.,Ltd is a leading factory Specilizing in Manufature and Export Woodworking Machine more than 15 Years as the Golden Supplier.
Our Products Mainly Including the Precise Sliding Table Panel Saw, Edge Banding Machine, Board Drilling Machine.,Which have been export to 55 Countries and Region Customers. We ship our machines worldwide and provide installation, training, repairs and services.
In order to serve Worldwide WoodWorking Industry with our quality product. Our Modernization Factory Passed The ISO9001:2008 Quality Management Systems Check, Our Machine own the CE Certificate. Be Assured of our Machine Quality.

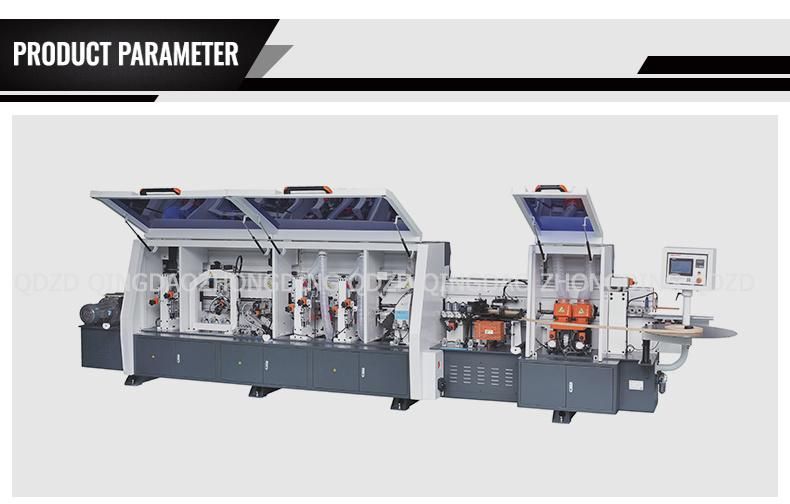

Full-Automatic edge banding machine.

Function: premilling- gluing- end cutting- rough trimming- fine trimming- corner rounding- scraping- buffing.

Type	ZD450A
Banding tape thickness/Épaisseur du ruban adhésif	0.4-3 mm
Banding tape width/Largeur de bande de bande	12-65 mm
Work piece thickness/Épaisseur de la pièce de travail	10-60 mm
Work piece length/Longueur de la pièce de travail	>=100 mm
Work piece width/Largeur de la pièce de travail	>=50 mm
Heating power/Puissance de chauffage	1.8 KW
Feeding motor power/Alimentation du moteur	3.7 KW
Pre-milling/Pré-fraisage	0.75 KW x 2
Glue spreading power/Pouvoir d'étalement de la colle	0.75 KW
End trimming power/Fin de la puissance de coupe	0.5 KW x 2
Rough trimming motor power/Puissance du moteur de coupe grossière	0.75 KW x 2
Fine trimming power/Fine puissance de coupe	0.75 KW x 2
Corner rounding motor power/Puissance du moteur d'arrondi d'angle	0.5 KW x 2
Polishing motor power/Puissance du moteur de polissage	0.37 KW x 2
Feeding speed/Vitesse d'alimentation	10-23 m/min
Air pressure/Pression de l'air	0.8 Mpa
Overall dimension/Dimension globale	6200x850x1520 mm
Packing size/Taille d'emballage	6300x880x1580 mm
N.W.	2300 KGS
G.W.	2450 KGS

Edge banding is used to cover the exposed sides of materials such as plywood, particle board or MDF, increasing durability and giving the appearance of a solid or more valuable material. Common substitutes for edgebanding include face frames or molding. Edge banding can be made of different materials including PVC, ABS, acrylic, melamine, wood or wood veneer.
