• Model NO.：DW3030 Mini
• Customized：Customized
• Condition：New
• Color：Customized
• Working Arae：300mm*300mm
• Z Axis Working Area：60mm
• Working Speed：0 - 3000mm,Min
• Software：Type 3 Software, Artcut Software, Artcam
• Driver Type：Leadshine Stepper Motor and Driver
• Spindle Speed：0 - 24000rpm
• Spindle Power：1.5kw
• Control System：March3(Option:DSP Control System)
• Command：G Code, U00, Mmg, Plt
• Machine Structure：T-Slot Table
• Transport Package：Playwood Box
• Specification：300x300mm
• Trademark：DWIN
• Origin：Jinan City Shandong Province China
• HS Code：8465990000
• Production Capacity：50 Sets,Month

Basic Info.

Model NO. DW3030 Mini Customized Customized Condition New Color Customized Working Arae 300mm*300mm Z Axis Working Area 60mm Working Speed 0 - 3000mm/Min Software Type 3 Software, Artcut Software, Artcam Driver Type Leadshine Stepper Motor and Driver Spindle Speed 0 - 24000rpm Spindle Power 1.5kw Control System March3(Option:DSP Control System) Command G Code, U00, Mmg, Plt Machine Structure T-Slot Table Transport Package Playwood Box Specification 300x300mm Trademark DWIN Origin Jinan City Shandong Province China HS Code 8465990000 Production Capacity 50 Sets/Month

Product Description

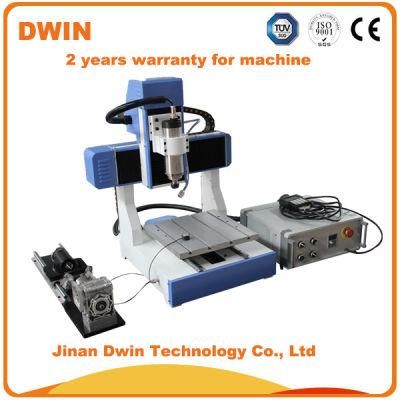

                 300X300mm 1.5kw Spindle Metal Wood Engraving Cutting Mini CNC Router

This machine belongs to mini desktop cnc router, controlled with mach3 system, can be used do many kinds of work, like wood processing, metal processing.



Features:

1.The machine adopts international advanced accurate guide rail,slide pre-tight installment (guaranteed no space is between the slides) and German original ball screw to realize steady movement ,high precision and small vibration.
2.March 3 control system that adopted by the machine has the advantages of break point and break power continue engraving,assisned G code engraving ,etc.(The DSP handle operation system which enables the machine work without the computer can be choosen .)

Applicable materials:
PVC board,ABS, double-color board,acrylic,MDF,stainless steel,copper,alumnium, zinc etc materials.

Technical parameters:

Machine body:	DW3030  Whole cast iron
Work dimensions:	300 x 300 x 60mm
Body dimensions:	600 x 600 x 600mm
Z-axis working area:	60mm
Max. Feeding height:	60mm
Cut thickness of material:	<20mm
Max.Speed:	4200mm/min
Working speed:	0 - 3000mm/min
Mechanical precision:	0.01mm
Software:	Type 3 software, Artcut software, Artcam software
Max. Power consumption:	900W
Power supply :	AC 220/50Hz
Driver type:	Stepper motor
Memory:	1MB
Spindle:	1.2KW variable speed, water cooled motor
Spindle speed:	0 - 24000RPM
Blade diameter:	1 - 6m
Control system:	March3 or Wei hong (NCSTUDIO) or DSP (USB interface)
Command:	G code, u00, mmg, plt
Interface:	RS232

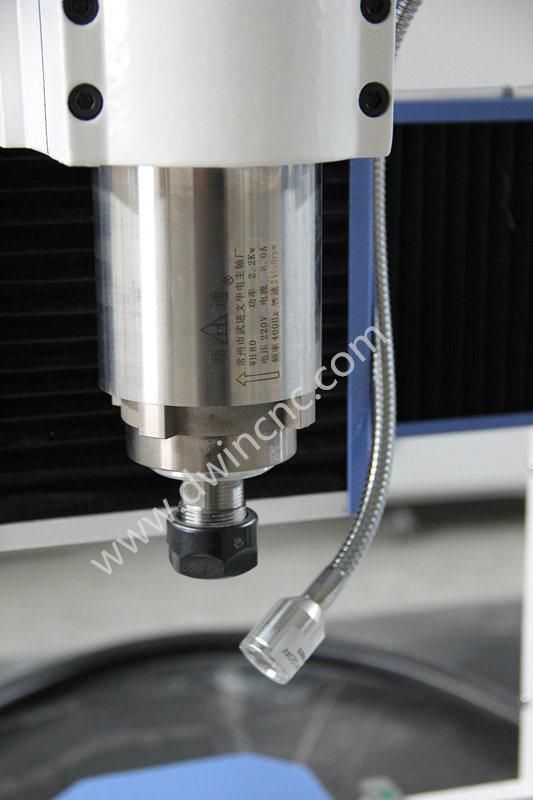

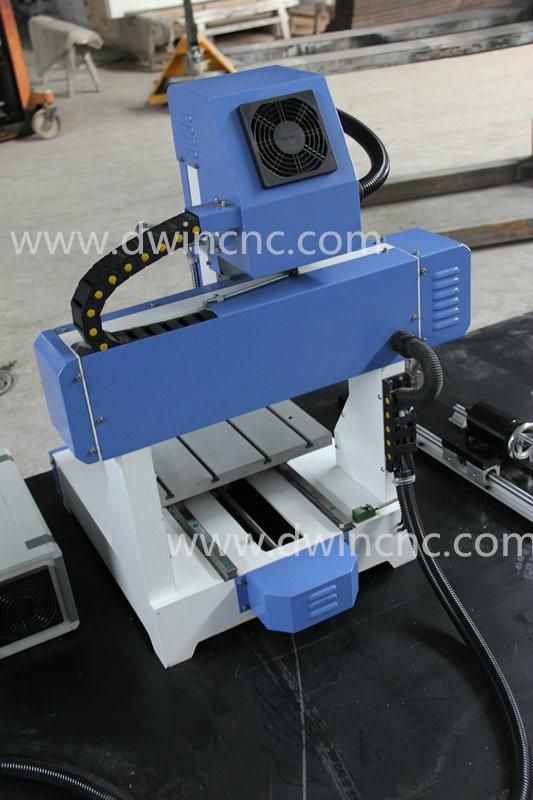

Machine details

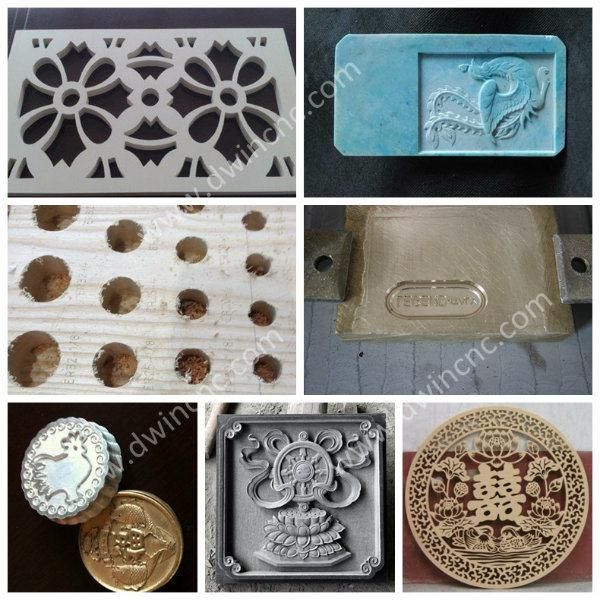

Samples:


Company and Certification
