• Model NO.：DW1325
• Customized：Customized
• Condition：New
• Color：Customized
• OEM：Accepted
• Customization：Accepted
• X,Y,Z Working Area：1300 X 2500 X 200mm
• Table Size：1380×3040mm
• X,Y,Z Traveling Positioning Accuracy：±0.05,300mm
• Table Surface：Bakelite Vacuum Ttable (Option:T-Slot Table)
• Frame：Welded Strucutre
• X, Y Structure：Rack and Pinion Drive,Hiwin Rail Linear Bearings
• Z Structure：Ball Screw, Hiwin Rail Linear Bearings
• Spindle Power Motor：4.5kw Water Cooling or Hsd for Choice
• Transport Package：Plywood Box, Free From Fumigation
• Specification：CE FDA
• Trademark：DWIN
• Origin：Jinan, Shandong, China
• HS Code：846599
• Production Capacity：50sets Per Month

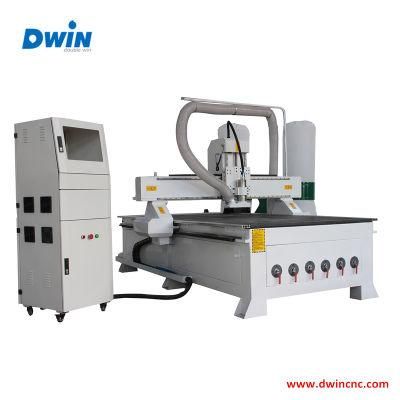

specifications:ModelDW1325 cnc wood router
1
X,Y,Z Working Area1300x2500x200mm
2
Table Size1380×3040mm
3
X,Y,Z Traveling Positioning Accuracy±0.05/300mm
4
X,Y,Z Repositioning Positioning Accuracy±0.05mm
5
Table SurfaceBakelite Vacuum Ttable (Option:T-slot table)
6
FrameWelded strucutre
7
X, Y StructureRack and Pinion Drive,Hiwin Rail Linear Bearings
8
Z StructureBall Screw, Hiwin Rail Linear Bearings
9
Max.Power Consumption (Without spindle)3.0Kw
10
Max.Rapid Travel Rate50000mm/min
11
Max.Working Speed25000mm/min
12
Spindle Power Motor4.5kw water cooling  or HSD for choice
13
Spindle Speed0-24000RPM
14
Drive MotorsStepper system(Option:Servo System)
15
Working VoltageAC220V/50/60Hz,1PH (Option: 380V 3PH)
16
Command LanguageG Code
17
Operating SystemDSP System (Option: Mach3 PC Software)
18
InterfaceUSB
19
Flash Memory128M(U Disk)
20
ColletER25
21
X,Y Resolution<0.02mm
22
Software CompatabilityType3 software,Ucancam software(Option:Artcam software)
23
working temperature0ºC~45ºCpACKAGING AND SHIPPING
 All cnc router machine are packed with standards inner plastic wrap and outer plywood case, inner package would be help to tight all the machine samll parts in the package. And the plywood is firm enough to protect the cnc router machine during shipping

1. Gurantee for cnc router are two years excluding consumable parts. Extra fee is paid if out of date. Any damage to the machine caused by improper use will be charge.
2. Free training course at our plant.
3.We will provide the consumable parts at an agency price when you need replacement.
4.Machine has been debugging before delivery, operation disk was included. If there is also any questions, pls kindly tell me
5.12 months quality guaranty, the cnc router machine with main parts(excluding the consumables)shall be changed free of charge when if there is any problem during the warranty period.
