• Model NO.：ZD450A
• Certification：CE, ISO
• Panel Thinkness：10-60mm
• Min.length panel：100mm
• Min.width panel：50mm
• Manufacturing Principles：Glue Tank Underneath
• Customized：Customized
• After-sales Service：Video Technical Support
• Transport Package：Plywood Case
• Specification：6700*850*1520mm
• Trademark：ZD
• Origin：China
• HS Code：84659400
• Production Capacity：2 Sets,Week

Basic Info.

Model NO. ZD450A Certification CE, ISO Panel Thinkness 10-60mm Min.length panel 100mm Min.width panel 50mm Manufacturing Principles Glue Tank Underneath Customized Customized After-sales Service Video Technical Support Transport Package Plywood Case Specification 6700*850*1520mm Trademark ZD Origin China HS Code 84659400 Production Capacity 2 Sets/Week

Product Description

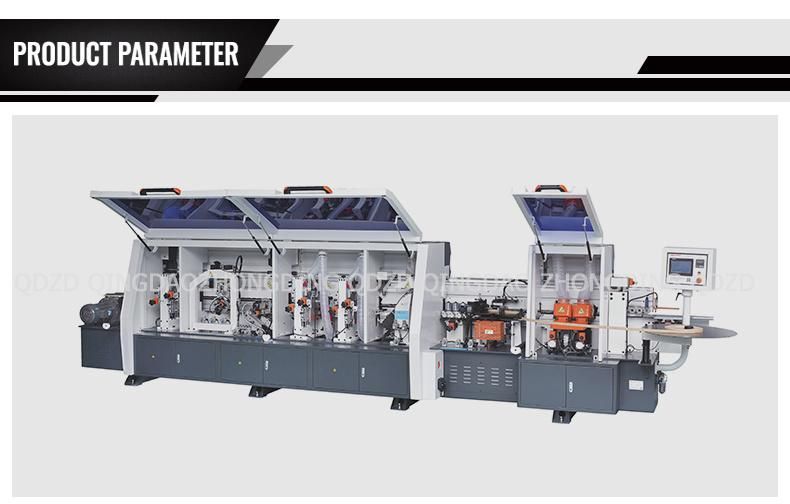

Woodworking Edge Bander Pre-milling Automatic Edge Banding Machine for Wood Veneer PVC Edge Banding






Technical Specifications:

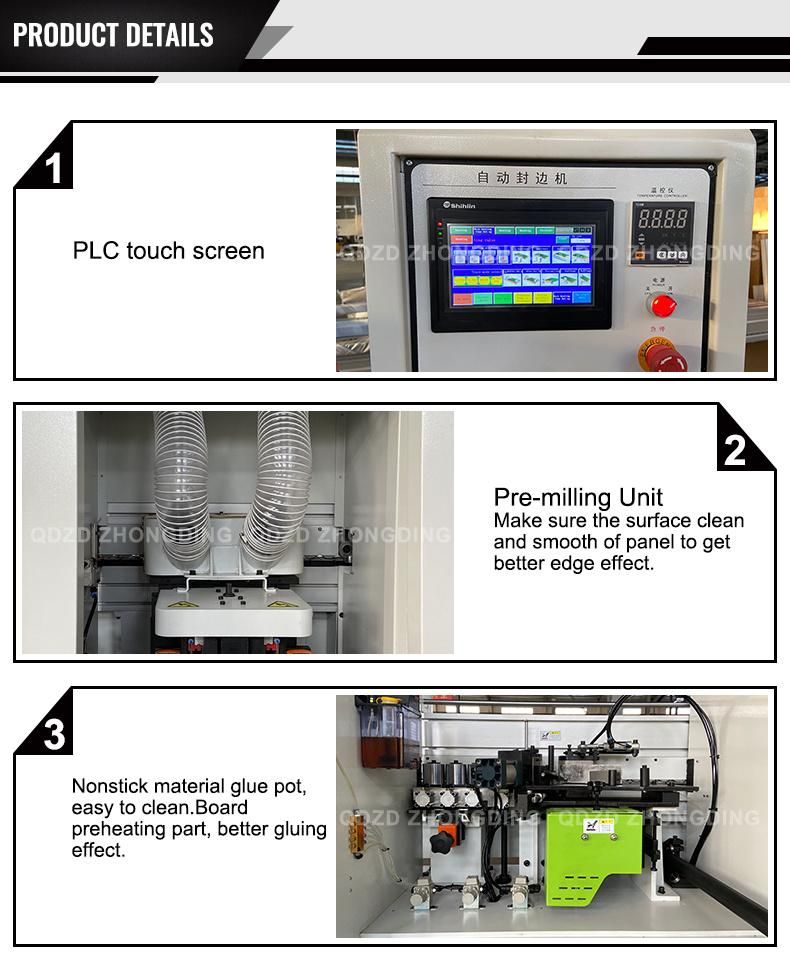

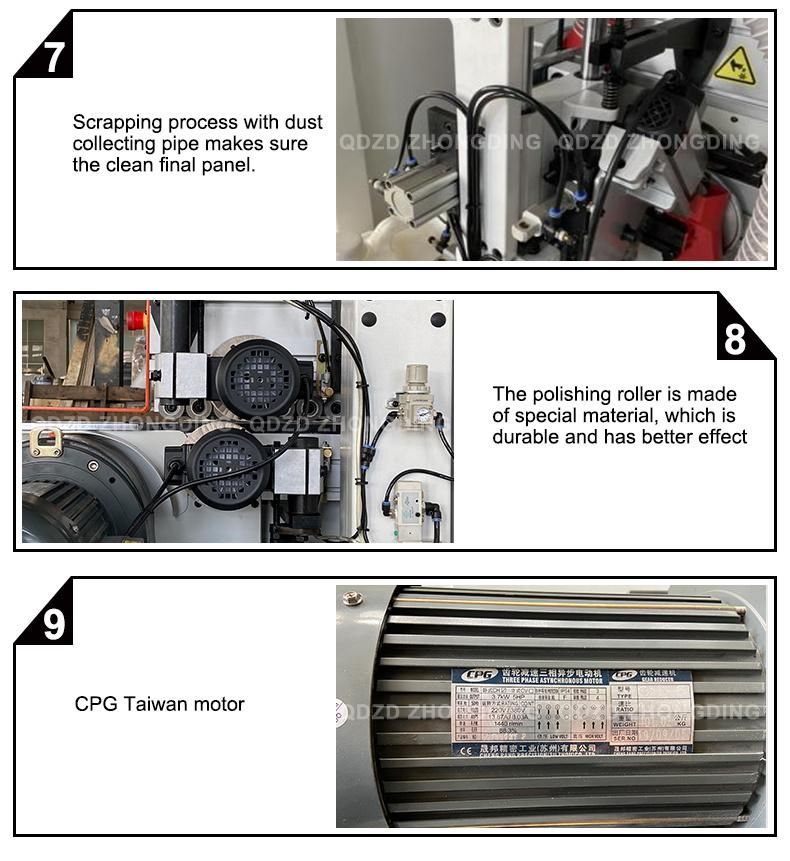

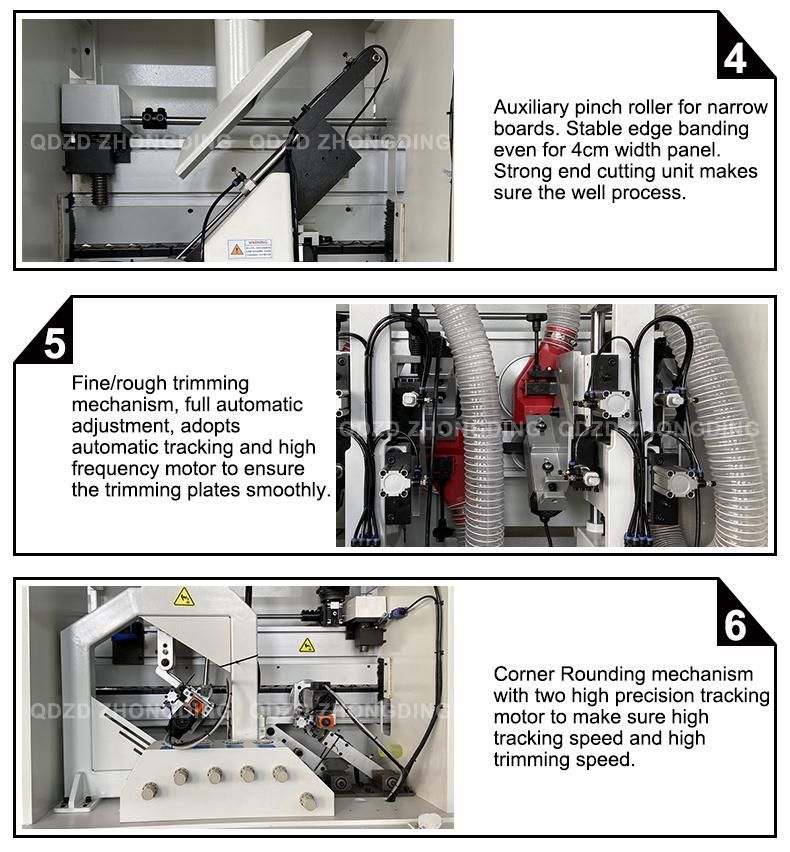

Functions: Pre-milling, Gluing, edge banding, end trimming, rough trimming, fine trimming, corner trimming, scraping, buffing.


Model	ZD450A
Banding tape thickness	0.4-3mm
Banding tape width	12-65mm
Workpiece thickness	10-60mm
Workpiece length	>=100mm
Workpiece width	>=50mm
Heating power	1.8kw
Feeding motor power	3.7kw
Pre-milling motor power	2.2kw*2
Glue spreading motor power	0.75kw
End trimming motor power	0.5kw*2
Rough trimming motor power	0.75kw*2
Fine trimming motor power	0.75kw*2
Corner rounding motor power	0.5kw*2
Polishing motor power	0.37kw*2
Feeding speed	10-23m/min
Air pressure	0.8Mpa
Overall dimension	6700*850*1520mm
