Heavy Duty Single-Sided Pressure Thicknesser

Qingdao Samac International Trading Co., Ltd.
  • Type：Four-Side Planer
  • Working Depth：＞200mm
  • Working Width：35-200
  • Drivetrain：Worktable Elevating Drivetrain
  • Enter Method：Pushing
  • Motor Power：＞10Kw

Base Info

  • Model NO.：RMB106T
  • Cutter Shaft：10
  • Spindle Speed：＜5000rpm
  • Process Type：Heavy Processing
  • Certification：CE, ISO
  • Transport Package：Standard Packing
  • Trademark：SAMACH
  • Origin：China
  • HS Code：84659902

Description

Basic Info.

Model NO. RMB106T Cutter Shaft 10 Spindle Speed ＜5000rpm Process Type Heavy Processing Certification CE, ISO Transport Package Standard Packing Trademark SAMACH Origin China HS Code 84659902

Product Description

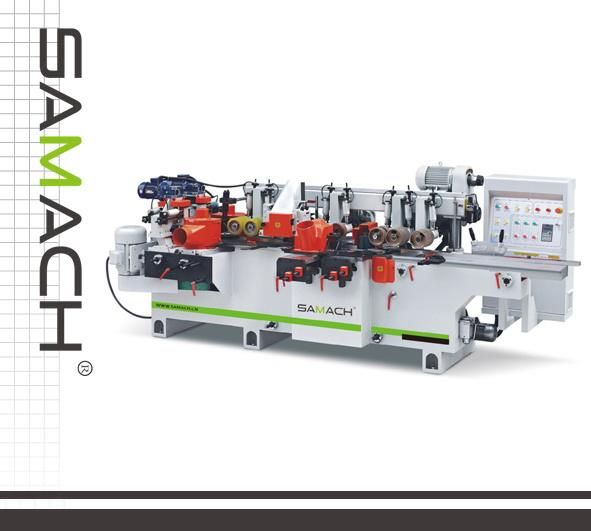

RMS620SM Saw Machine Four Sides Planer

Heavy Duty Single-Sided Pressure Thicknesser

ModelsRMS9520SM
Processing width35-200mm
Processing thickness20-100mm
The shortest processing length650mm
Feeding speed (frequency conversion)5-25m/min
Saw shaft diameter50mm
Shaft diameter50mm
Blade specifications205x50mm
Planer specifications125x40mm
Upper knife motor power7.5kw
Under the knife motor power5.5kw
Left knife motor power4kw
Right knife motor power4kw
Saw shaft motor power22kw×2pcs
Feed motor power5.5kw
Beam lift motor power0.75kw
Total power60.62kw
Dimensions3900x1350x1600mm

Details

1.By adopting left-right double side cut and the surface of material will be more smoothly.

2.High efficiency large-scale planing saw processing of solid wood materials such as wall
 panels, anti-corrosion templates.

3. The flat tooth type steel roller with special treatment will durable in use.

4.Adjustable worktable and backup plate for easy trimming.

5. Installed with anti-rebound device on the work table to avoid any material kickback
for safety purpose.

6.The bearing brand such as TR. NSK. SNR.

7. Smoothed conveying roller to ensure smooth feeding.

8.Feeding speed is controlled by VFD, feeding speed can be selected according to request.

Packing & Delivery of SAMACH woodworking Machines

Heavy Duty Single-Sided Pressure Thicknesser
Heavy Duty Single-Sided Pressure Thicknesser

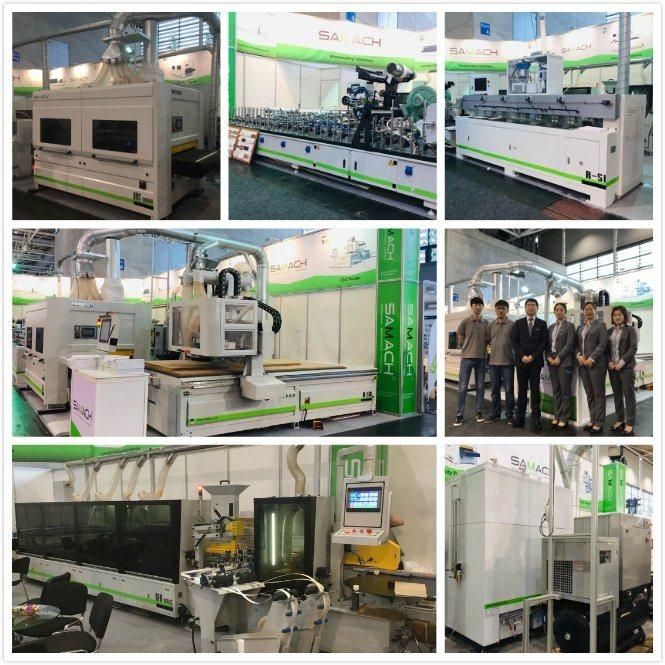

LIGNA GERMAN, World Top Level Exhibition of Woodworking Machinery.

Heavy Duty Single-Sided Pressure Thicknesser


Heavy Duty Single-Sided Pressure Thicknesser
Samach'S Service and dominant:

1: Professional team of techniques study and research, guarantee the Machine latest and improving efficiency.

2.Knowing China and world markets well, offer professional soluttions.

3.Fast market reaction,  guarantee our partners always in front edge.

4.Supeiror Guarantees,quality of our machine and sell-after service.

5.OEM/ODM are available.

6.Principle: One cooperation, forever partners.

Contact us and Enjoy our Happy Coopperation Together.  Thank you for your time!
