Woodworking Machinery CNC Double End Mortise Machine for Solid Wood Furniture

Qingdao Samac International Trading Co., Ltd.
  • Type：Wooden Mold Router
  • Spindle Layout：Horizontal
  • Spindle Number：Single-Spindle
  • Feed Mode：Mechanical
  • Controlling Mode：CNC
  • Certification：ISO

Base Info

  • Model NO.：RSK-2218A-2218B
  • Customized：Customized
  • Condition：New
  • Color：Customized
  • Transport Package：Soft Package
  • Specification：4600*2000*1850mm
  • Trademark：SAMACH
  • Origin：China
  • Production Capacity：400 Sets,Month

Description

Basic Info.

Model NO. RSK-2218A-2218B Customized Customized Condition New Color Customized Transport Package Soft Package Specification 4600*2000*1850mm Trademark SAMACH Origin China Production Capacity 400 Sets/Month

Product Description

Woodworking Machinery CNC Double End Mortise Machine for Solid Wood Furniture

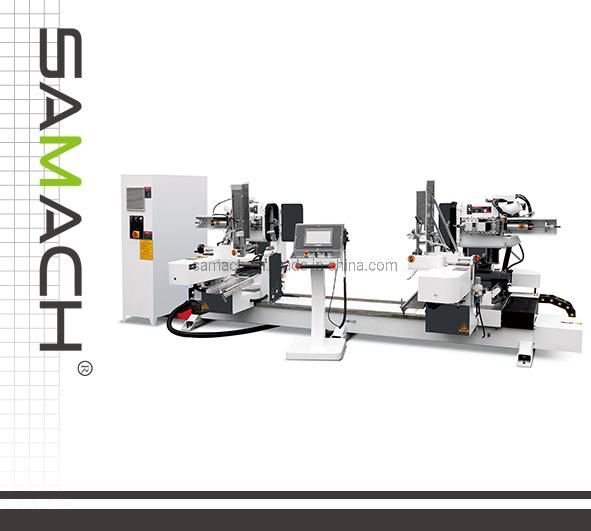

CNC Double End Mortise Machine RSk-2218A

Woodworking Machinery CNC Double End Mortise Machine for Solid Wood Furniture

Characteristic

1. Automatic feeding and discharging; advanced numerical control system, simple
operation, easy adjustment, high degree of automation.2. Automatic clamping positioning, double end simultaneous processing, efficient and accurate,

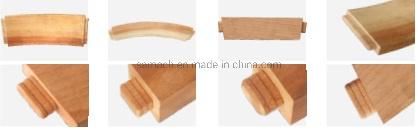

reduce labor intensity of workers.3. The separation of the knives effectively prevented the workers from industrial accidents.4. Production of square, rectangular tenon, waist circle, circular, oblique tenon shapes are widely
used in door, table, The chair and other furniture tenon processing.
5. Technical breakthrough the vertical swing angle, (+45)(-12), the horizontal swing angle(+13)
(23.5)range, 5-6 times the single head tenon work efficiency, saving labor costs.


Major parts suppliers
CNC system: Taiwan Yitu
Servo motor: Taiwan Delta
Inverter: Taiwan Delta
Spindle motor: Peng Fa Motor
Ball screw: Taiwan TBI ball screw
TBI Guide rail
Electrical system components: German Schneider brand

Woodworking Machinery CNC Double End Mortise Machine for Solid Wood Furniture

Parameter

SpecificationsRSK-2218A
Max. work boards size2000×200×80m
Work tenons distance2000mm-170mm
Max. working Width180mm
Max. working Thickness70m
Max. Wwork Tenons size40mm
Total motor power15.3kW
Spindle speed10000r/min
Rated current28A
Working pressure0. 6M Pa
Weight 2200kg
Dimensions4600×2000×1850mm


CNC Double End Mortise Machine RSk-2218B

Woodworking Machinery CNC Double End Mortise Machine for Solid Wood Furniture

Woodworking Machinery CNC Double End Mortise Machine for Solid Wood Furniture        With corner trim       Woodworking Machinery CNC Double End Mortise Machine for Solid Wood Furniture

Parameter

SpecificationRSK-2218B
Max. Work boards size2000×200×80m
Work Tenons distance2000mm-195mm
Max. working Width150mm
Max. working Thickness70m
Max. work Tenons size40mm
Total Motor Power19.7kW
Spindle speed12000r/min
Rated Current28A
Working Pressure0. 6M Pa
Weight 2200kg
Dimensions4600×2000×1850mm

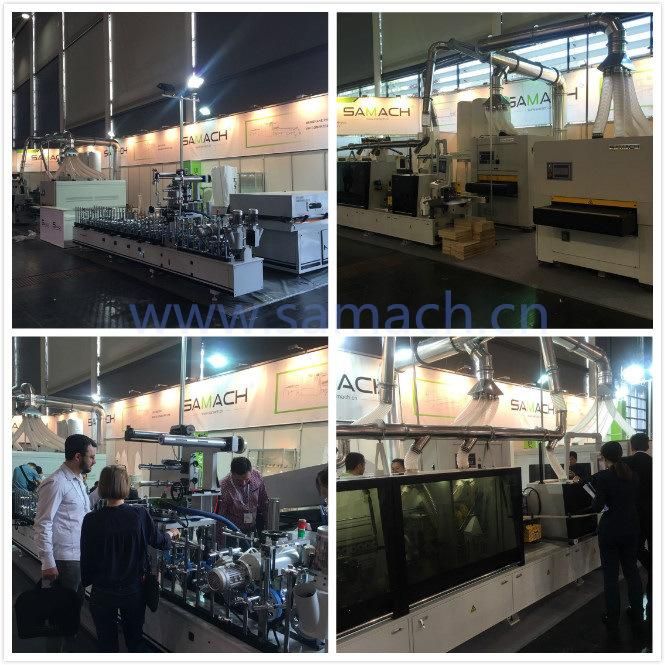

Exhibition

Woodworking Machinery CNC Double End Mortise Machine for Solid Wood Furniture

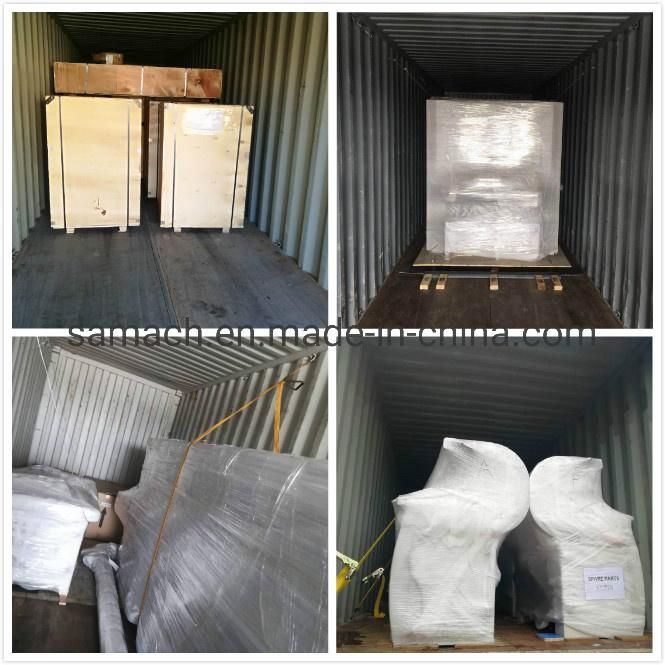

Packing and transportation

Woodworking Machinery CNC Double End Mortise Machine for Solid Wood Furniture

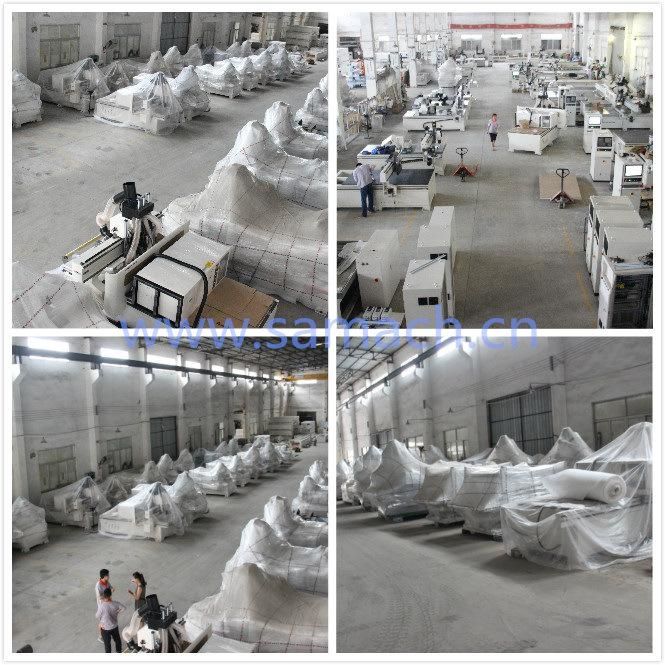

Factory

Woodworking Machinery CNC Double End Mortise Machine for Solid Wood Furniture

Samach'S Service and dominants:

1: Professional team of techniques study and research, guarantee the Machine latest
and improving efficiency.

2.Knowing China and world markets well, offer professional soluttions.

3.Fast market reaction,  guarantee our partners always in front edge.

4.Supeiror Guarantees,quality of our machine and sell-after services.

5.OEM/ODM are available.

6.Principle: One cooperation, forever partners.

Contact us and Enjoy our Happy Coopperation Together.  Thank you for your time ^_^ !
