Woodworking Machinery

Tenon CNC Mortise Machines

Qingdao Samac International Trading Co., Ltd.
  • Type:Wooden Mold Router
  • Spindle Layout:Horizontal
  • Spindle Number:Double-Spindle
  • Feed Mode:Manual
  • Controlling Mode:CNC
  • Certification:ISO

Base Info

  • Model NO.:R200-CNC
  • Customized:Customized
  • Condition:New
  • Color:Customized
  • Transport Package:Standard Packing or Packing According to Customer
  • Specification:R200-CNC
  • Trademark:SAMACH
  • Origin:China
  • Production Capacity:60sets,Month

Description

Basic Info.

Model NO. R200-CNC Customized Customized Condition New Color Customized Transport Package Standard Packing or Packing According to Customer Specification R200-CNC Trademark SAMACH Origin China Production Capacity 60sets/Month

Product Description

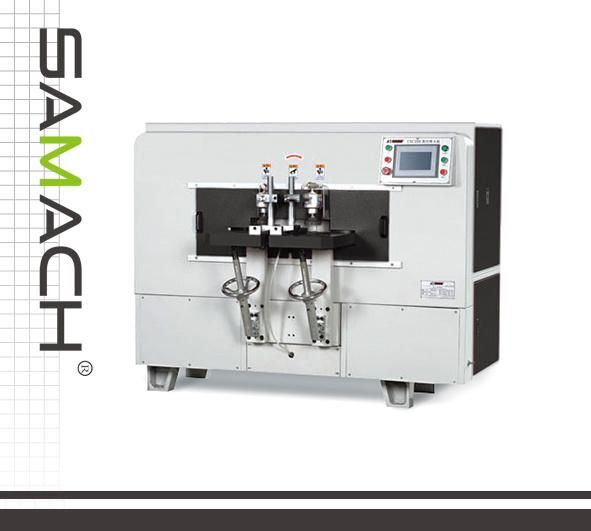

Male and Female Tenon CNC Mortise Machine

CNC Tenon machine
R
200-CNC

Tenon CNC Mortise Machines



Tenon CNC Mortise Machines
Tenon CNC Mortise Machines
Tenon CNC Mortise Machines

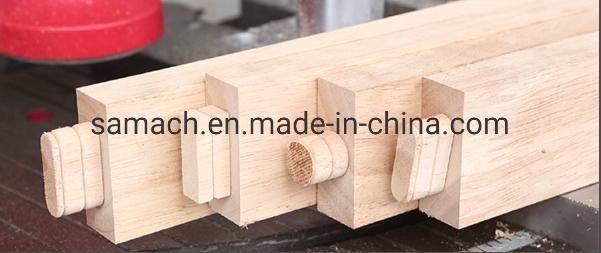

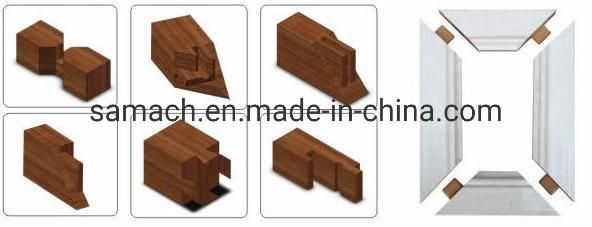

It is the essential tenon machine for dining chair ,table and solid wood furniture industry,has the advantage of high efficient.it can process square tenon and oval tenon.round tenon,mitre tenon, High production rate up to 16 pcs/min.

Features

1.Built with two tables for higher efficiency operations
2. Adjustable tenon width and depth
3. continuous tenoning motion
4. Miter gauge provided on the table allows for cutting bevel tenons
5. Feeding speed is adjustable  for cutting various wood materials
6.10"HMI touch screen provides user-friendly operations and allow for selection of various tenon shapes.
7. X,Y Axis employ servo motor for directly driving the ball screw through a coupling,which features low backlash and high positioning accuracy
8. Equipped with air pressure protection switch ,achieve machine stop protection  in deficiency,safety to operate.
9. Motion simulation function ensures the correct selection of tenon shape and avoid a danger of cutterhead bumping
10.The work table and machine frame adopt quality castings ,which can keep the stable Performance and good accuracy

Spindle motor: 3KW
Spindle speed 9100rpm
X-axis servo motor and stroke1.0KW/180mm(right table)200mm(left table)
X-axis servo motor and stroke1.0KW/180mm
Table lift(down): 0-30°
Machine Dimension(L*W*H): 1780*1125*1425mm
 Packing Dimension(L*W*H): 2030*1370*1800mm
 Gross weight: 1450kg
