Small/Manual Single Spindle Router/Vertical Axis Engraving and Milling Machine
Qingdao Samac International Trading Co., Ltd.- Type:Engraving Router
- Spindle Layout:Spindle Over
- Spindle Number:Double-Spindle
- Feed Mode:Manual
- Controlling Mode:Artificial
- Certification:ISO
Base Info
- Model NO.:RMX5117B1,RMX5115A-T
- Customized:Customized
- Condition:New
- Color:Customized
- Transport Package:Plastic Film
- Specification:RMX5068
- Trademark:SAMACH
- Origin:China
- Production Capacity:80sets,Month
Description
Basic Info.
Model NO. RMX5117B1/RMX5115A-T Customized Customized Condition New Color Customized Transport Package Plastic Film Specification RMX5068 Trademark SAMACH Origin China Production Capacity 80sets/MonthProduct Description
Single spindle router RMX5117B1
Size of working table | 1150X680mm |
Max.thickness of milling and scraping | 120mm |
Diameter of main shaft'axis | 35mm |
Rotating speed of main shaft | 8000-10000R/MIN |
Pressing hole of table | Min. Hole 225mm;middle hole of 160mm; small hole of 110mm |
Dimensions | 1150X680X1100mm |
Weight | 320KG |

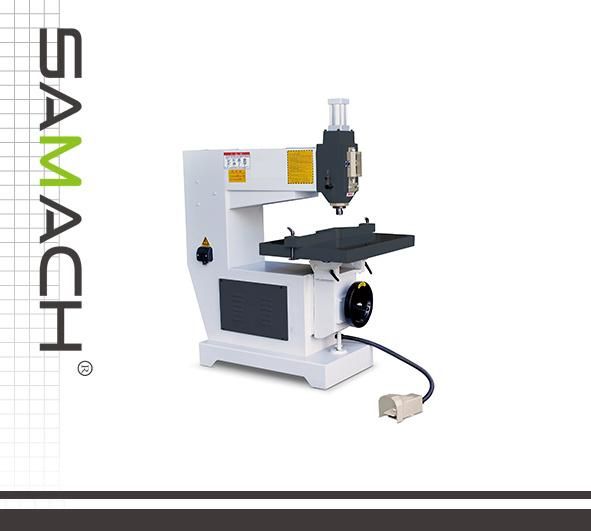

Vertical axis engraving and milling machine RMX5115A-T

Size of working table | 650x580MM |
Length of lead rail | 1200MM |
Routing of working tables' lifting | 100MM |
Inclination angle of working table | 45'' |
Max.thickness of milling and scraping | 50MM |
Diameter of Cutter folder | 12.7MM |
Rotating speed of main shaft | 15000R/MIN;18000R/MIN |
Installed power | 2.2KW/3KW |
Weight | 170KG |

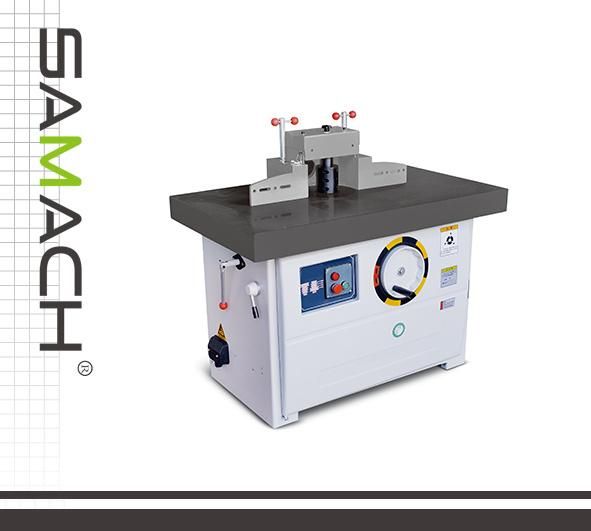

Vertical single-axis precision table milling machine RMX5116T

Size of working table | 1600x730mm |
Max. Thickness of milling and scrapping | 120MM |
Stroke of cutting and scrapping | 850mm |
Diameter of spindle | 35'' and 40''(optional) |
Rotating speed of main shaft | 8000-10000R/MIN |
Installed power | 5.5kw |
Weight | 430kg |

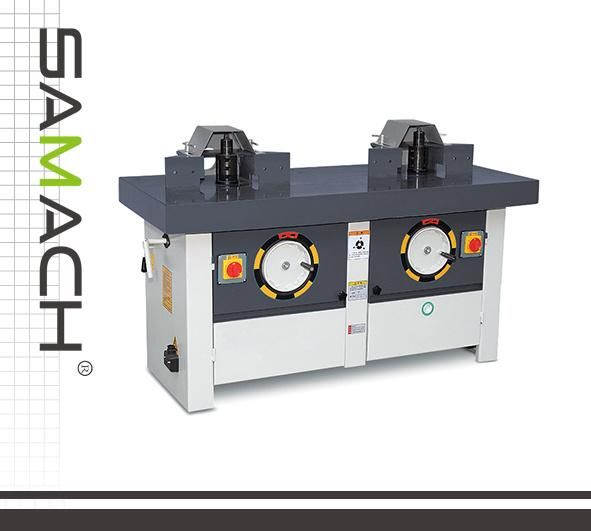

Vertical double-axis woodworking milling machine RMX1052

Size of working table | 1600x960mm |
Max. Thickness of milling and scrapping | 120MM |
Diameter of spindle | 35'' and 40''(optional) |
Rotating speed of main shaft | 8000-10000R/MIN |
Installed power | 4kw |
Weight | 680kg |
Woodworking boring and milling machine RMX5068

Size of working table | 800x600MM |
Routing of lifting working table | 180MM |
Max board thickness | 150MM |
Max.routing of main shaft | 65MM |
Distance between main shaft and pole | 730MM |
Diameter of Cutter's folder | 12.7MM |
Rotating speed of main shaft | 18000R/MIN |
Installed power | 3KW/4KW |
