• Model NO.：PM-JDJ-T
• Pressing Layer：Single Layer
• Work Mode：Continuous
• Controlling Mode：CNC
• Automatic Grade：Automatic
• Certification：CE
• After-sales Service：Installation & Maintenance
• Transport Package：Wooden Case
• Origin：China
• Production Capacity：60 Pieces,Year

Product ParametersModelPM-JDJ-SPM-JDJ-DPM-JDJ-TSize (mm)4800*780*13204800*780*13204800*900*1420Length and width of block (mm)75-145Power (kW)16.8622.2630.26Density (kg/m³)550-600Production efficiency (m³/24h)2-53-65-9Dimension with saw (mm)8000*600*15008000*700*15008000*700*1500Weight (kg)100015002000Block size: 75-145 mm in width, 75-145 mm in length. Customized by customers required. Working Principle

1. The hydraulic cylinder provides high pressure and pushes the piston to extrude and mold the materials.

2. The heating of the heating plate at a high temperature promotes the solidification and molding of urea-formaldehyde glue.

3. Cutting according to a certain length (usually around 1.2 meters).

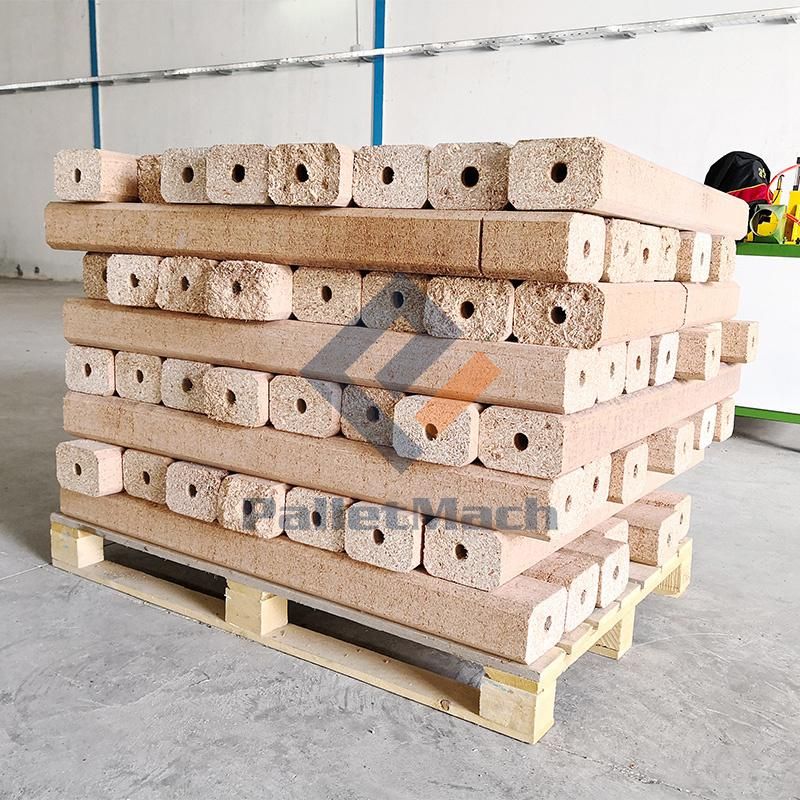

4. After cooling, the compressed sawdust pallet block machine for block pallet cut the long wood strips of half-finished products to the final size.


1. Simple machine. The whole machine is very simple and occupies a small space.

2. High efficiency. The capacity of a triple-head pallet block machine is more than 8 m³/24h.

3. Low production cost. The raw materials are the leftover materials of wood processing factories, so they are free. Therefore it lows the production cost.

4. Environmental friendly. The machine helps to dispose of the wood waste, so as to reduce pollution. It also meets the requirements of environmental protection and sustainable development.

5. Free fumigation. The pallet block is made by hot pressing, so it is free fumigation.

6. Different size in one machine. One machine can make two-size blocks.
