F3200 Woodworking Panel Saw 3200mm Sliding Table Saw Wood Cutting Machine

Shanghai Win Star Woodworking Machinery Co., Ltd.
  • Warranty:1 Years
  • Type:Table Panel Saw
  • Power Type:Electric
  • Layout:Horizontal
  • Controlling Mode:CNC
  • Automatic Grade:Automatic

Base Info

  • Model NO.:F3200
  • Precision:High Precision
  • Certification:CE, ISO
  • Customized:Customized
  • Condition:New
  • Color:Customized
  • After-sales Service:1 Years
  • Name:Sliding Table Saw
  • Model:F3200
  • Main Motor:5.5kw
  • Scoring Motor:1.1kw
  • Titing Saw Blade:45°,90°
  • Max Cutting Length:3200mm
  • Cutting Thickness:75-95mm
  • Max Cutting Width:1250mm
  • Max Cutting Thickness:70-95mm
  • Weight:800kg
  • MOQ:1set
  • Overal Dimensions:2850,3050,3250*3130*1100mm
  • Transport Package:Wooden Case
  • Specification:2850,3050,3250*3130*1100mm
  • Trademark:HiWinstar
  • Origin:China
  • Production Capacity:100set,Month

Description

model noF3200main saw spindle speed4000/56000rpmscoring saw spindle speed9000rpmmain motor 5.5kwscoring motor 1.1kwmain saw blade diameter300mmscoring saw blade diameter120mmtilting saw blade90°/45°cutting length2800/3000/3200mmmax cutting width1250mmmax cutting thickness70-95mmweight800kgoverall dimensions2850/3050/3250*3130*1100mm

The difference between 45 degree panel saw and 90 degree panel saw
1,90 degree panel saw can only cut 90 degree right angle.
2,45 degree panel saw blade can be tilted, not only can cut right angle but also can effectively cut 0-45° sheet, used for solid wood furniture, panel furniture, and other manufacturers.

Features
1,Europe type round stick rail, stable structure, high bearing pressure, stable operation when cutting heavy plates, can effectively guarantee the service life of the machine and the precision of the plate.
2,Main and scoring saw blade, first lined by a scoring saw blade, followed by a main saw blade can cut the plate with high precision and prevent burrs.
3,Upgrade large motor, main saw motor 5.5kw, scoring saw motor 1.1kw, strong power, long service life.
4,Big ruler, strong by foot, strong stability, wear resistance, high precision.

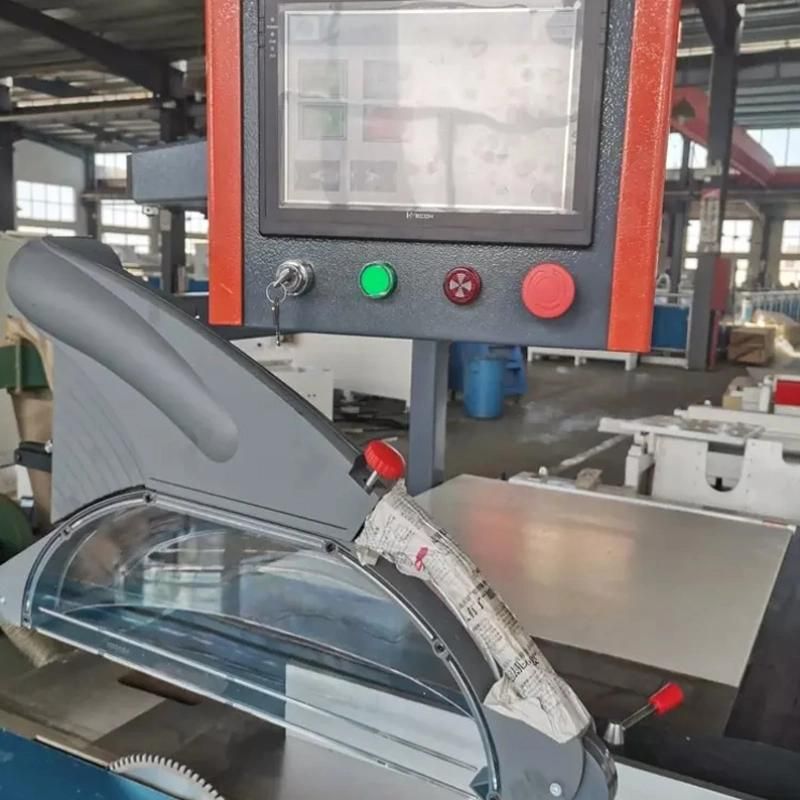

5,First-class internal electric system, the machine has electric lifting, digital display function. The electric lift is more accurate than the height of the hand crank.
6,Using a thicker 45mm rip fence to increase the bearing pressure of the plate during the vertical cutting process.
7,Aluminum tube feeding frame, compared to the traditional iron pipe, the bearing pressure is higher.
8,Electric lifting.

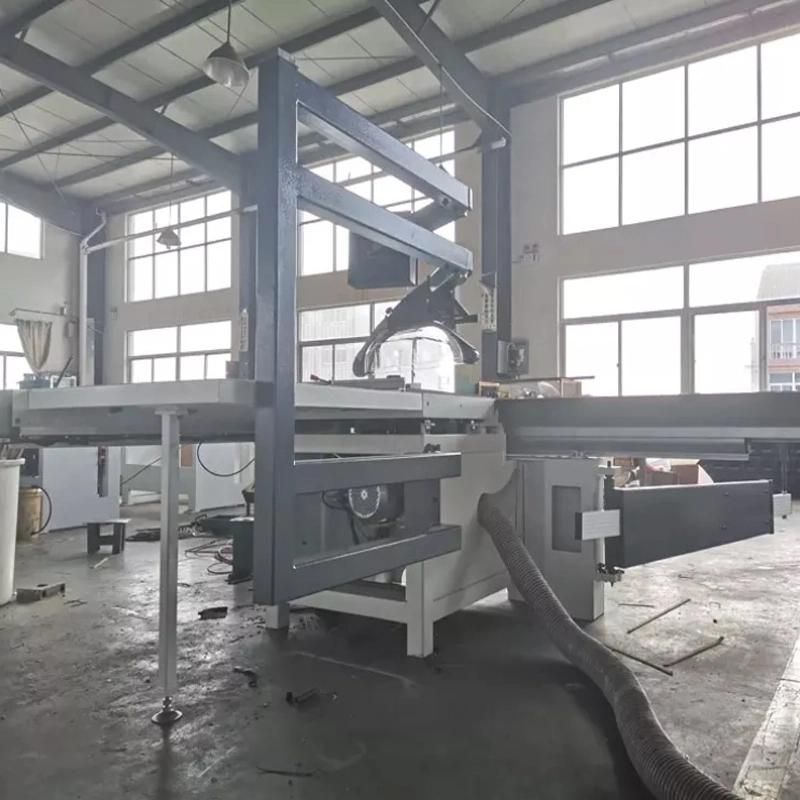

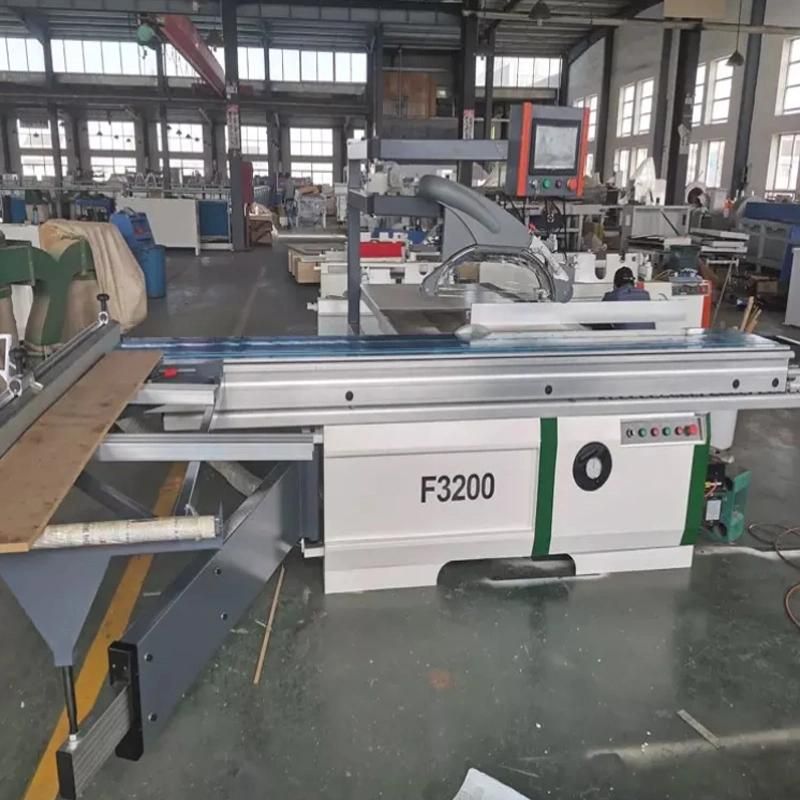

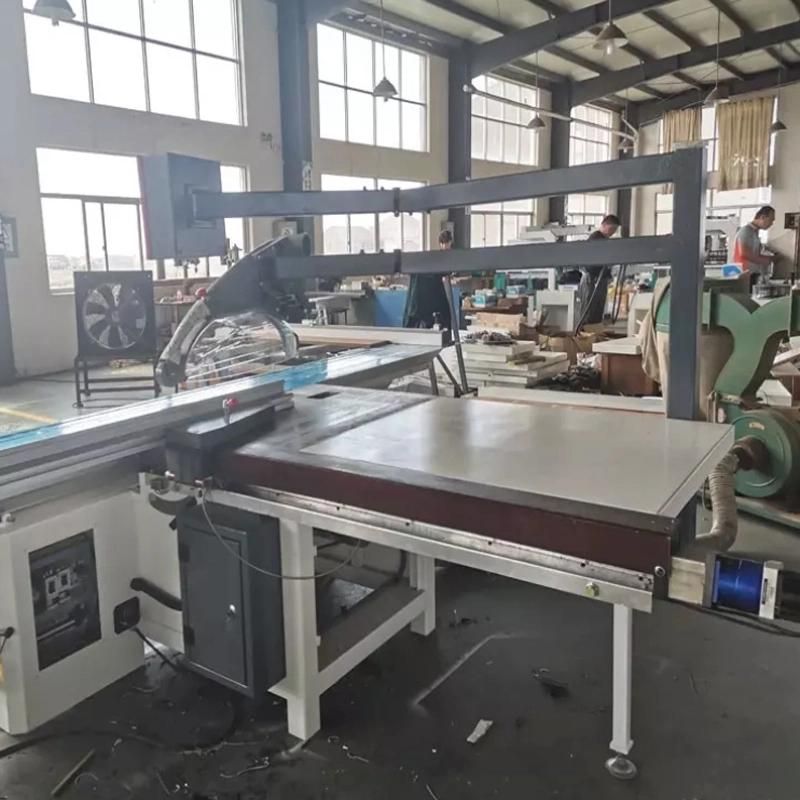

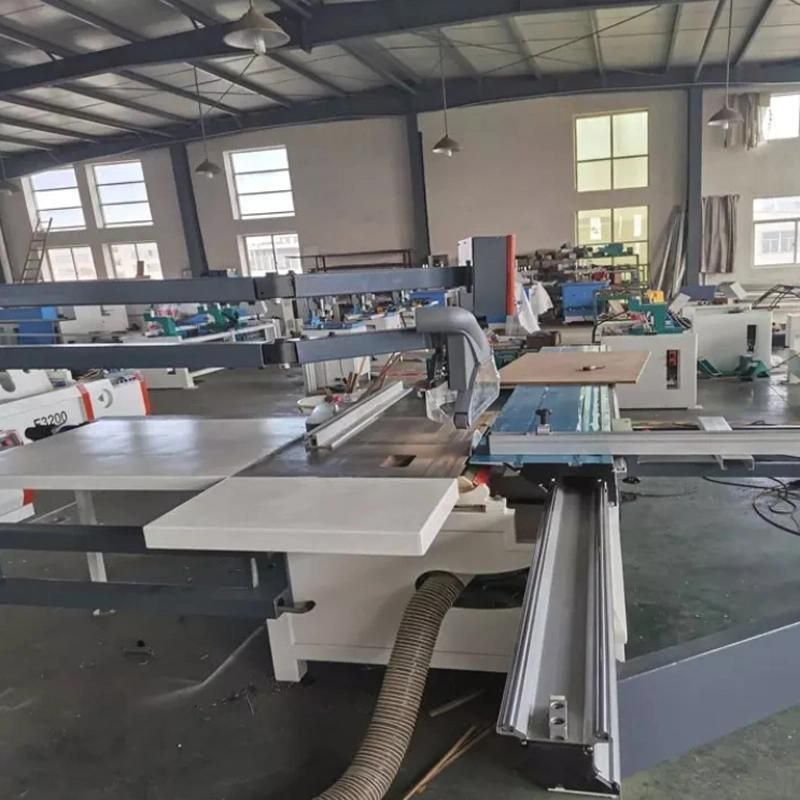

Detailed Pictures
F3200 Woodworking Panel Saw 3200mm Sliding Table Saw Wood Cutting MachineF3200 Woodworking Panel Saw 3200mm Sliding Table Saw Wood Cutting MachineF3200 Woodworking Panel Saw 3200mm Sliding Table Saw Wood Cutting MachineF3200 Woodworking Panel Saw 3200mm Sliding Table Saw Wood Cutting MachineF3200 Woodworking Panel Saw 3200mm Sliding Table Saw Wood Cutting Machine
Application
It is used for cross-cutting of various kinds of wood-based panels, such as veneers, particleboards, fiberboards, plywood and solid wood panels, aluminum alloys, plexiglass panels, etc.
F3200 Woodworking Panel Saw 3200mm Sliding Table Saw Wood Cutting MachinePackaging & Shipping
F3200 Woodworking Panel Saw 3200mm Sliding Table Saw Wood Cutting MachineF3200 Woodworking Panel Saw 3200mm Sliding Table Saw Wood Cutting Machine

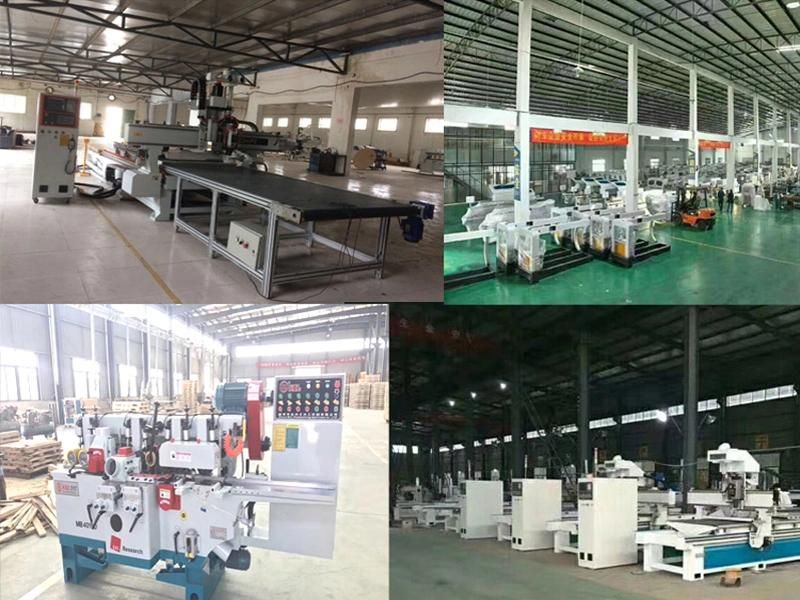

Company Information
F3200 Woodworking Panel Saw 3200mm Sliding Table Saw Wood Cutting MachineF3200 Woodworking Panel Saw 3200mm Sliding Table Saw Wood Cutting MachineFAQ

1,Can you offer good price with fine quality also?

Surely,if without quality,we cannot win long market.we will loose long-terms customers.Quality is our responsibility.we must produce and test machine well.Becasue we are always expecing long term business.Regarding the price.
we are not sure if it is lowest or highest,But we will be offering reasonble.We don't want heavy profits,we want a acceptable price to you,and we are expecting a bigger quantities of sales for different wood machines.

2,We will be protetcted if we are paying for orders?

Surely yes,we have been exported 1000000$ different wood machine every year,We received the payment,we should produce for you and ship to you without delay. It is honesty and reputy.We could understand that you paid,you want to see machines soon and use soon. and these years alibaba trade assurance you could rely on,you will be protected very well.

3,What's your warranty? can you do more service for us? we wish woud be protected after purchasing machine.

We are pleased to give life continious aftersales service. within 12 months, if spareparts broken,we will send you new for change. we would like to help to solve any troubles when you use machine at any time.and don't be worried,we will keep opening 24 hours for all customers problem or difficilaty. we must help to make solutions within 48 hours.

4,What's your production time? we want faster shipping time also.

Mostly machine we have in stock, some machine we produce need about 7-10days. make fast shipment always. shipping time depends on shipping company.
