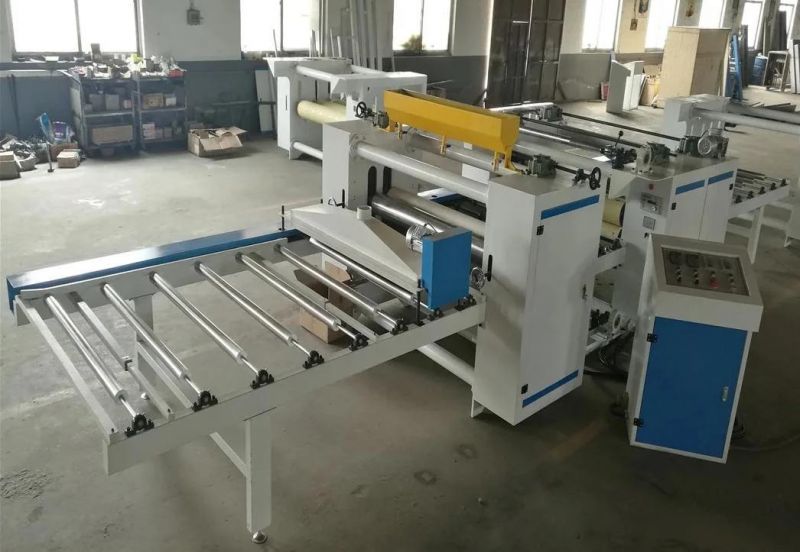

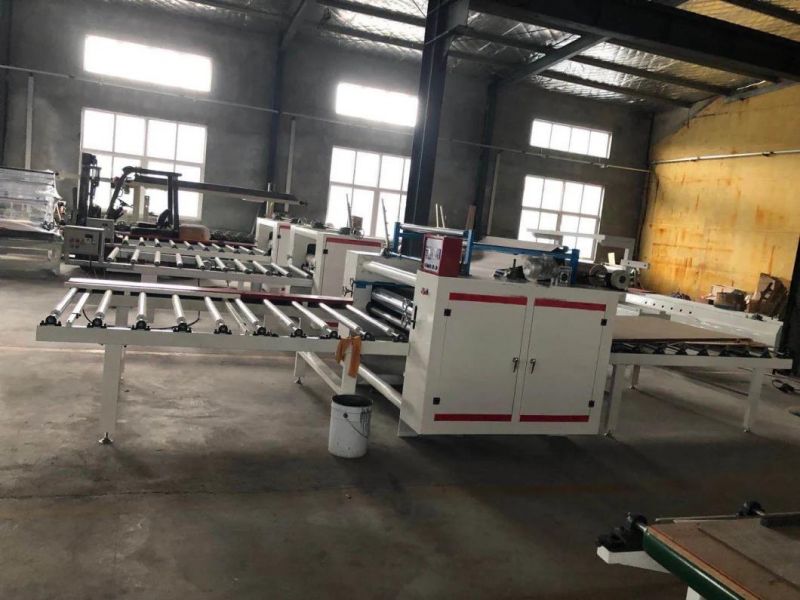

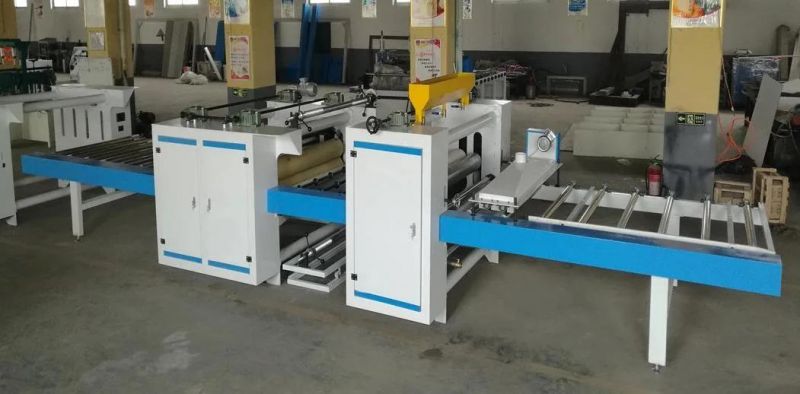

High Efficient Capability Paper PVC Film Plywood MDF Chipboard Woodworking Laminating Machine
Shanghai Win Star Woodworking Machinery Co., Ltd.- Warranty：12 Months
- Certification：CE, ISO, FDA
- After-sales Service：12 Months
- Name：MDF PVC Laminating Machine
- Model：Ws1350
- Working Width：1300mm
Base Info
- Model NO.：WS1350
- Working Height：900mm
- Feeding Speed：8-20m,Min
- Working Material：MDF,HDF, Solid Wood Boards
- Pressing Sheet：Acrylic Pet PVC HPL
- Voltage：380V,220V
- Certificate：CE
- Color：as Required
- Usage：Surface Laminating
- Length：500-2450mm
- Coating：40-80G,M2
- Operation Side：Right Hand
- Working Thickness：3-100mm
- Transport Package：Plywood
- Specification：11000x2100x2550mm
- Trademark：HIWINSTAR
- Origin：China
- Production Capacity：100 Set,Year
Description
Features
1.Infeed transport track with cleaning and preheating unit.
2.Glue spreading machine for hot melt with thermal oil heated applying and doctor rollers(up to 160ºC)
3.Automatic glue supply by a 200L drum melting device.
4.Lay-up belt with lay-up rack for the feed of material in longitudinal and transverse decoration.
5.Roller press with uncoiling station for material from the roll.
6.Outfeed transport.
Application
Manufacture of lightboards,composite boards and insulation elements.
