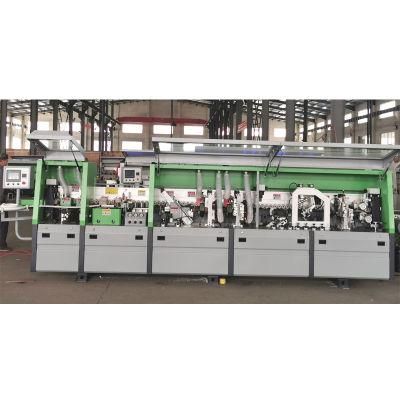

Zsf-70dl Woodworking Machinery CNC Edge Banding Machine

Hefei Aquila CNC Equipment Co., Ltd.
  • Function:Pre Milling, Gluing, Edge Banding, End Trimming, Rough Trimming, Fine Trimming, Contour Tracking, Scraping, Buffing
  • Type:Linear Edge Banding Machine
  • Edging thickness:0.4-3mm
  • Automatic Grade:Automatic
  • Panel Feeding Speed:17-25m,Min
  • Certification:CE, ISO

Base Info

  • Model NO.:ZSF -70DL
  • Panel Thinkness:10-60mm
  • Min.length panel:150mm
  • Min.width panel:60mm
  • Manufacturing Principles:Glue Tank Overhead
  • Customized:Non-Customized
  • Transport Package:Plywood Boxes
  • Specification:6640*910*1540mm
  • Trademark:Mars
  • Origin:China
  • HS Code:84659900
  • Production Capacity:300 Sets Per Month

Description

Basic Info.

Model NO. ZSF -70DL Panel Thinkness 10-60mm Min.length panel 150mm Min.width panel 60mm Manufacturing Principles Glue Tank Overhead Customized Non-Customized Transport Package Plywood Boxes Specification 6640*910*1540mm Trademark Mars Origin China HS Code 84659900 Production Capacity 300 Sets Per Month

Product Description

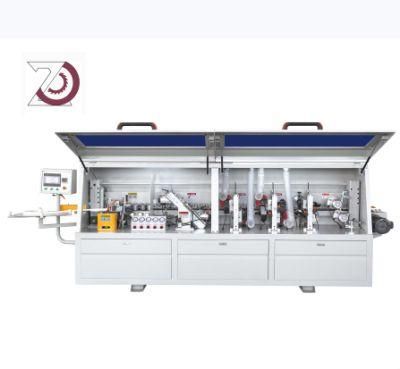

Automatic Wood Edge Banding Machine

1,Technical Parameter
Overall dimensions(L*w*H mm)6640*910*1540mm
Motor power15.8kw Total power
Feed speed17-25m/min
Edge thickness0.4-3mm
Panel thickness10-60mm
Panel Length>=150
Panel Width>=60
Working press0.6-0.8Mpa
Mini Panel Size300(L)*60(W) mm & 150(L)*150(W)mm
Total weight2450KGS

2,Applicable Scope
ProcessingPre-milling, gluing, edge cutting, end trimming, rough trimming, fine rimming, corner trimming, scr aping, buffing, slotting and so on
MaterialMDF, block board, solid wood board, particleboard, polymer door plates, plywood etc, straight line e dging and trimming
ApplicationIt is especially suitable for large and medium-sized furniture manufacturers
StrengthFlexible, advantages of high performance, easy debugging, convenient in maintenance and easy to operate


3,Performance Feature
1This edge bander is ideal for building an automatic production line. Stability and controlled ability ar e the most important factors for an equipment to be part of production line
2Pre-milling equipment with double trim-blades works on the waved effect that is caused by precise saw
3The glue mechanism adopts a special structure to gelatinize the plates and coating materials uniformly, ensure a more solid conglutination
4End-trimming mechanism through a precise guide track movement, adopt automatic tracking and hi gh-frequency motor fast cutting structure to ensure the cutting surface smoothly
5Rough &Fine Trimming unit, with two individual high frequency motors, trim the exceeding edge on t he top and bottom side of the panel, ensure the top and bottom side of the edge smooth and even
6Scraping unit for a perfect finishing of the applied edge
7The buffing device adopt the board processed by cotton polishing wheel, by end-polishing to make a more smooth surface
8Grooving is a optional function for edge banding machine. It's used to slot out one groove on panel to install glass, back panel etc

4,Warranty Information
Warranty and Service:Guarantee:12 months for the whole machine.
Within 12 months under normal use and maintenance, if something is wrong with machine, you will get spare part for free.
Out of 12 months, you will get spare part at cost price.

Technical support: You will also get technical support and service all the lifetime.
  1. Technical support by phone, email or Whatsapp/Skype around the clock
  2. Friendly manual and operation video online
  3. Engineer available to service machinery overseas

After sales Services
  1. Normal machine is properly adjusted before dispatch. You will be able to use the machines immediately.
  2. You will be able to get free training advice towards our machine in our factory.
  3. You will also get free suggestion and consultation, technical support and service by email/fax/tel and lifetime technical support.
Quality control
  1. Skilled and Strict Quality Inspection Team is available during the material purchasing and production procedure according to ISO 9001:2015
  2. All finished machine we shipped out are 100% strictly tested by our QC department and engineering department
