E300 CNC Cutting Center/Cabinet Doors CNC Router Machine Acrylic Board CNC Machine for Solid Wood Furniture

Hefei Aquila CNC Equipment Co., Ltd.
  • Condition:New
  • Certification:ISO, CE
  • CNC or Not:CNC
  • Voltage:380V
  • Working Stoke:1230*2440*50mm
  • Guide Rail:Taiwan Hiwin Rectangular Linear Rail

Base Info

  • Model NO.:E300
  • Transport Package:Plywood Case Package
  • Specification:3000KG
  • Trademark:Mars
  • Origin:China
  • HS Code:84659900
  • Production Capacity:300sets,Month

Description

Basic Info.

Model NO. E300 Transport Package Plywood Case Package Specification 3000KG Trademark Mars Origin China HS Code 84659900 Production Capacity 300sets/Month

Product Description

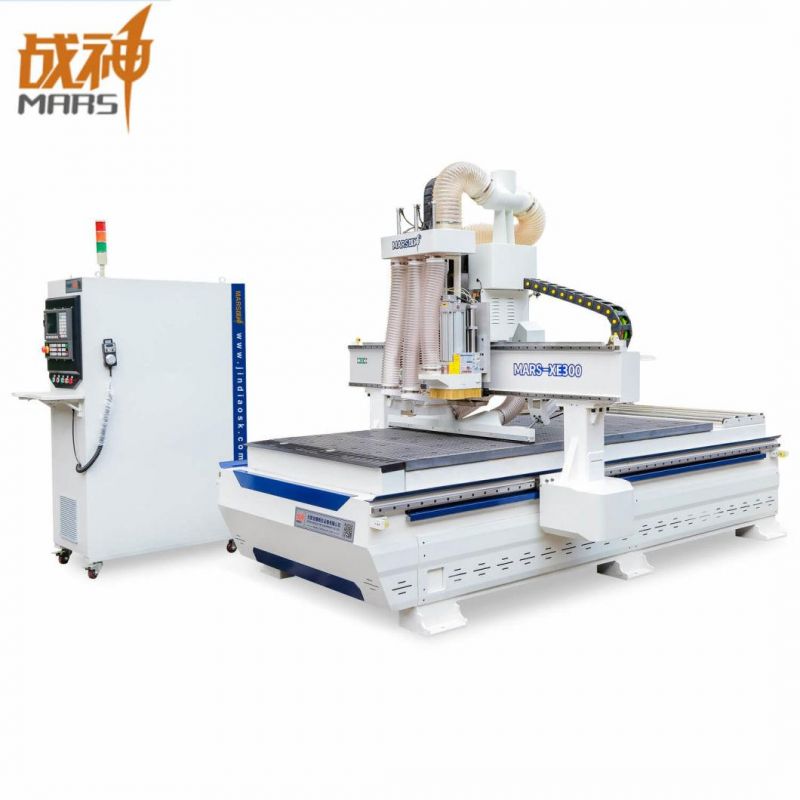

E300 CNC Cutting Center/Cabinet Doors CNC Router Machine Acrylic Board CNC Machine for Solid Wood Furniture

Keywords: 15 years experience of production
                         ISO9001:2008, CE, SGS, AAA Level Enterprise which Honors Contract
                        Three Brands: Mars, Golden Eagle, Boiro
                        Technicist who go abroad to offer after-sale service

E300 CNC Cutting Center/Cabinet Doors CNC Router Machine Acrylic Board CNC Machine for Solid Wood FurnitureE300 CNC Cutting Center/Cabinet Doors CNC Router Machine Acrylic Board CNC Machine for Solid Wood Furniture

Technical Parameter:

ModelE300 Gang Drill CNC Cutting Center
Working Stoke1230*2440*50mm
Body StructureHeavy-duty thicken steel structure, w/ tempering
Spindle PowerHQD 6KW+4.5KW air cooling spindle
Spindle Speed0 ~ 24000 rpm/min
Drilling BankItaly HSD 5+4 gang drill
Control SystemSyntec/ Osai
Drive SystemYaskawa/ Delta servo motor
Lubrication SystemAutomatic
TransmissionXY axis rack and pinion, Z axis ball screw
Guide RailTaiwan Hiwin rectangular linear rail
Vacuum Pump5.5KW
Max Travelling Speed50m/min
Max Processing Speed30m/min
Dictate FormatG code/ HPGL
Working Accuracy±0.02mm
Re-positioning Accuracy±0.05mm
Support SoftwareProfessional cutting optimization software
Working VoltageAC380/ 3PH/ 50HZ
Net Weight3000KG
Machine Size3700*3100*1900mm

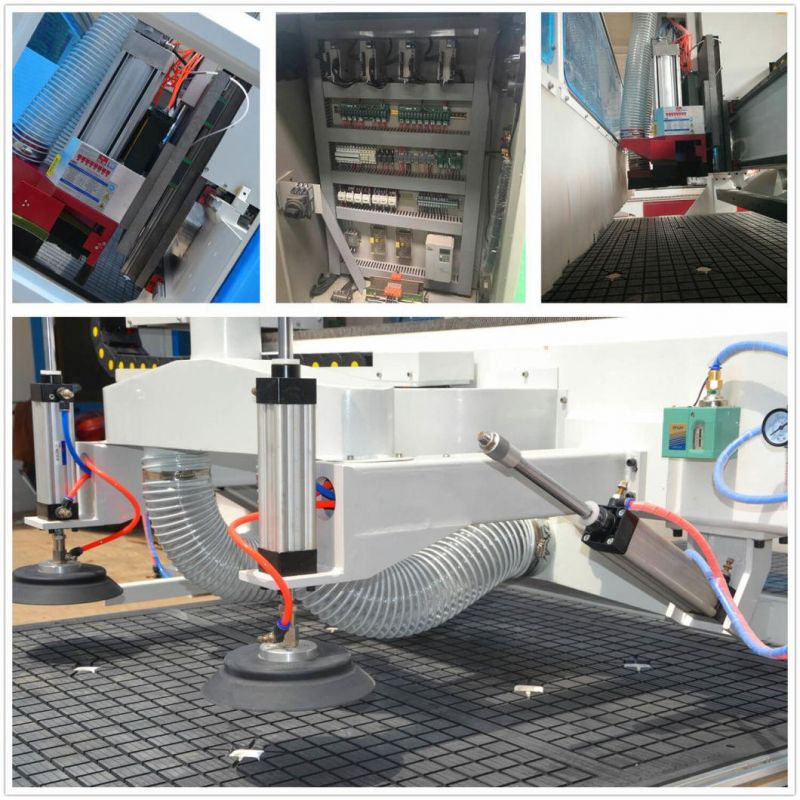

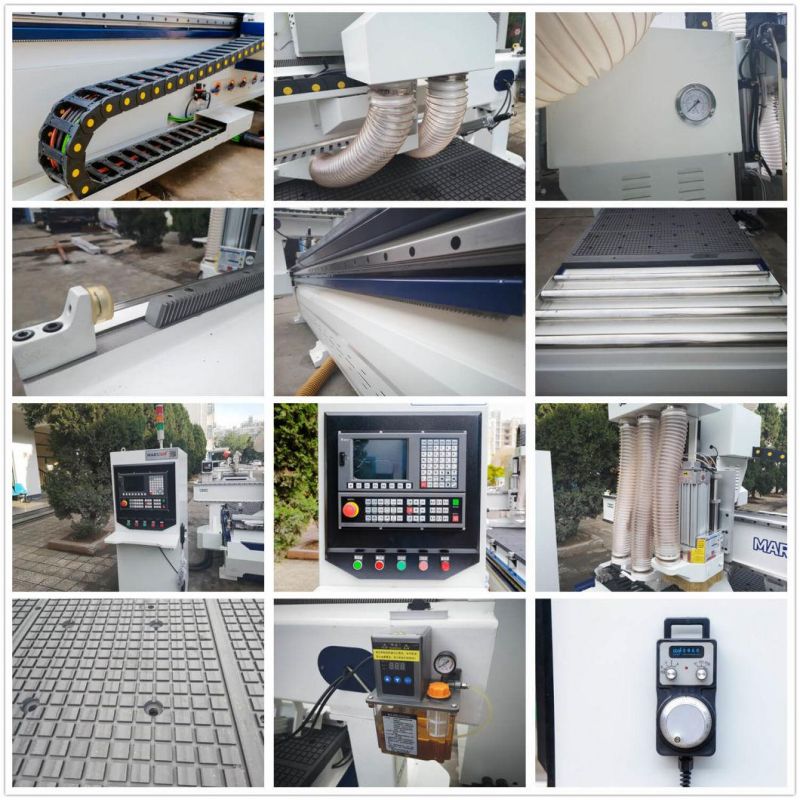

Machine Main Parts:

E300 CNC Cutting Center/Cabinet Doors CNC Router Machine Acrylic Board CNC Machine for Solid Wood Furniture




Performance Features:

1. Equipped with all the leading international brand components.
2. High-power Italy HSD air-cooling spindle, Japan YASKAWA servo motor and driver.
3. Vacuum table, high adsorption capacity, able to adsorb materials of different sizes.
4. Intelligent protection work table can prevent table damages caused by misuse or software errors. Intelligent processing cross-border protection can prevent mechanical collisions while design layout exceeds processing area.
5. Syntec CNC control system can automatically accomplish multi-layer 3D job, cutting, engraving, milling, all at ease. Offline operation can be realized.



Available Materials:

E300 CNC Cutting Center/Cabinet Doors CNC Router Machine Acrylic Board CNC Machine for Solid Wood Furniture


Functions:

E300 CNC Cutting Center/Cabinet Doors CNC Router Machine Acrylic Board CNC Machine for Solid Wood Furniture


Samples:

E300 CNC Cutting Center/Cabinet Doors CNC Router Machine Acrylic Board CNC Machine for Solid Wood Furniture

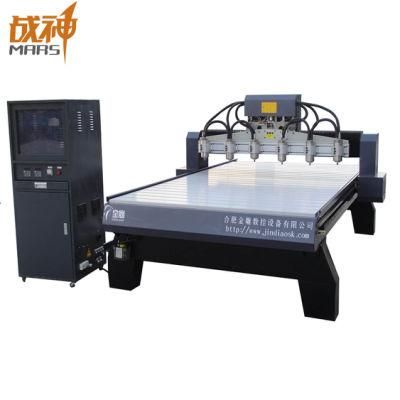

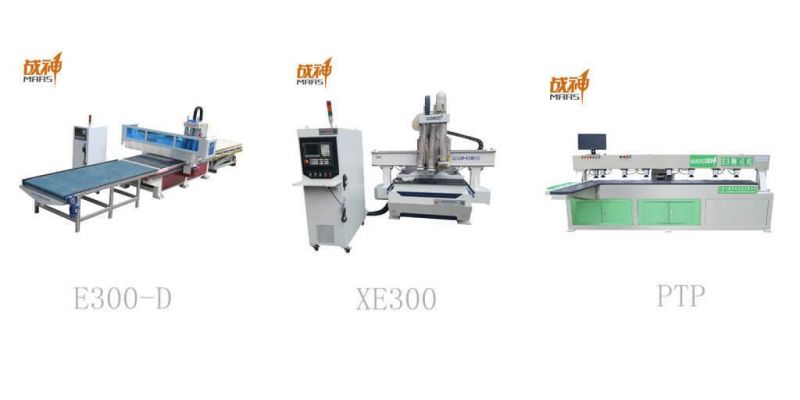

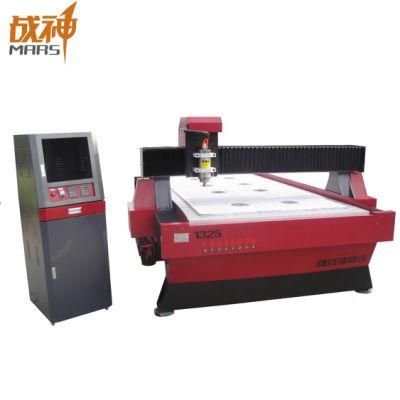

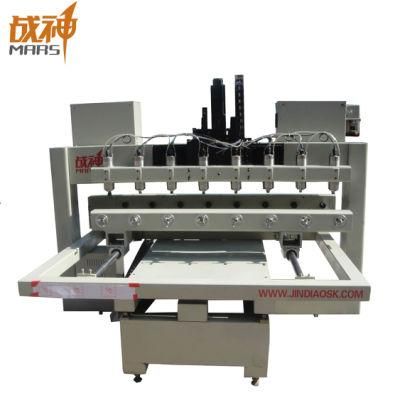

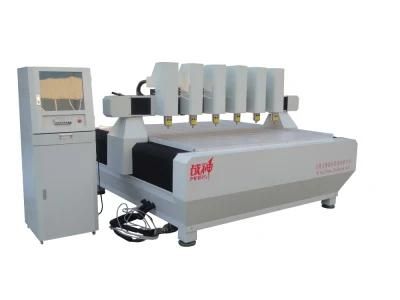

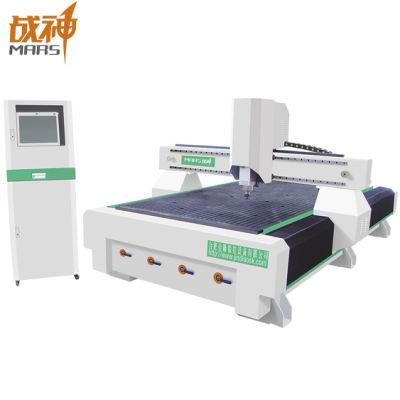

Related Machines
