• Model NO.：FM1325
• Customized：Customized
• Condition：New
• Color：Customized
• Name：Wood Door Making CNC Router Machine
• Working Area：1300*2500*200mm
• Spindle：3.0kw Water Cooling Spindle
• Motor：stepper Motor and Leadshine Driver
• Warranty：1 Year
• Dimension(L*W*H)：1900*3100*1800
• Weight：1500kg
• Control System：DSP Control System
• Voltage：220V, 380V
• Guide Rail：Taiwan Hiwin Linear Square Guide Rail
• Transport Package：Wooden Case
• Specification：CE, SGS, ISO
• Trademark：FIRMCNC
• Origin：Jinan, China
• HS Code：8465990000
• Production Capacity：60 Sets,Month

Basic Info.

Model NO. FM1325 Customized Customized Condition New Color Customized Name Wood Door Making CNC Router Machine Working Area 1300*2500*200mm Spindle 3.0kw Water Cooling Spindle Motor stepper Motor and Leadshine Driver Warranty 1 Year Dimension(L*W*H) 1900*3100*1800 Weight 1500kg Control System DSP Control System Voltage 220V/ 380V Guide Rail Taiwan Hiwin Linear Square Guide Rail Transport Package Wooden Case Specification CE, SGS, ISO Trademark FIRMCNC Origin Jinan, China HS Code 8465990000 Production Capacity 60 Sets/Month

Product Description

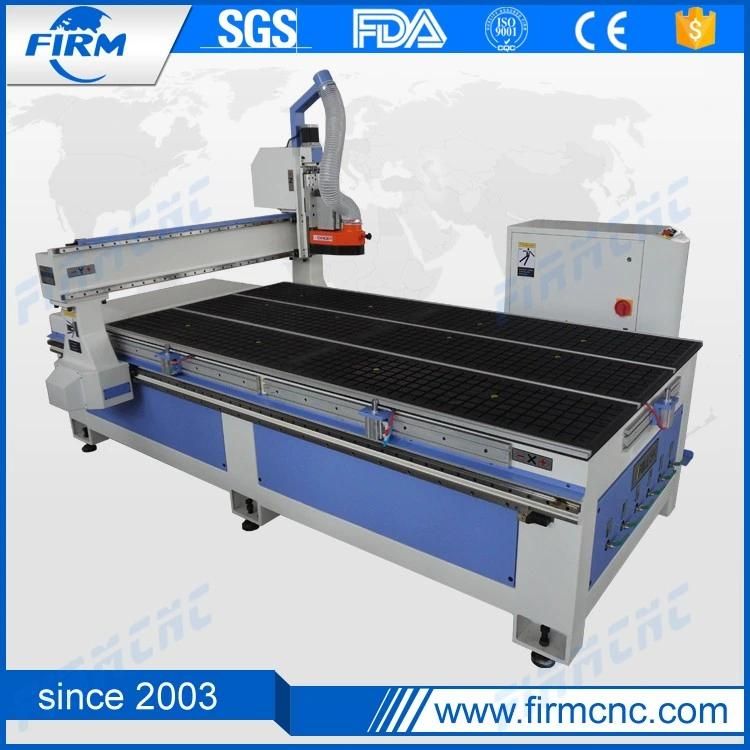

High Quality wood door making cnc router machine



Features of wood door making cnc router :
1.Economical and good structure .
2.Stepper motor and leadshine driver ensure the mahcine high precise.
3.Taiwan TBI ball screw,make the mahcine working mre accurate.
4.Artcam design software,easy operate and learn.
5.DSP control system,offline working ,support continue when power/tools filure.
6.Dust collector,can suck the dust ,keep the machine clean and tidy.
7.Water tank ,ensure the machine can cut and engraving on metal and non-metal materials.
8.Rotary ,can processing round materials

Technical specification of wood door making cnc router

Brand	Firm
Model	FM-1325
Machine Size (mm)(W*L*thickness)	1900*3100*1800
Working size (mm)	2500 *1300*200mm
Working Form	Full-automatic
Spindle Power	3.0KW water cooling spindle (1.5kw 2.2kw 4.5kw 5.5kw 6kw 7.5kw 9kw are available)
Spindle Rotate (rpm)	6000~24000rpm
Motor Driver	Stepper motor (Chinese servo motor or imported servo motor is optional)
Tool Diameter (mm)	Ø3.175,Ø4,Ø6, Ø12.7mm
Machine Structure	Industry square tube structure
Transmission System	Imported ball screw or high accuracy gear rack
X,Y,Z Rail	Imported square rail
Mechanical Accuracy	<0.03/300mm
EngravingSpeed (mm/min)	8000~12000mm/min
Feeding Speed	manual
Data Transmission	PC connect
Support Format	G code or HPGL
Working Voltage	AC220V/50Hz or 380V/50Hz
Support Format	G Code or HPGL
Range of Application	Woodworking relief engrave ,Cutting , Hollow
Machine Net Weight	1500Kg

Configuration show of wood carving cnc router
vacuum table:  much more adsorption to fix the materials
DSP contorl: support offline operation,more convenient,do not need to connect computer
Square guide rail and Tool setting gauge
Duct colltctor


Application of wood carving cnc router
1. Materials could be used: Wood, Timber ,PMMA,PVC Sheet, ABS sheet, KT sheet, Gemstone, Marble ,
Aluminum and plastic composite panel, Iron, Copper, Aluminum, Plastics and etc.
2. Widely used in furniture industry (2D/3D), furniture decoration industry, carpenter decoration, instrument industry,
wooden handicraft industry, large plate craving, wood furniture craving,
density plate engraving, window and door craving and so on.
Samples of wood carving cnc router

Accessories configuration
(01) User Manual (CD in English Version)
(02) Mach3/DSP/Ncstudio
(03) Communication cable
(04) Water pump for Spindle, Water tank, Water pipe head
(05) Power cable: 3 pieces
(06) Tool case : 1 set
(07) Wrench: 1 set
(08) Collet: 2 pieces
(09) Other tools

Cutting Tools	One box of ordinary Tools, including 12 sharp tools, 5 cutters  ( 3 of 3.175, one of 4mm and one of 6mm),  a box of woodworking tools(5 cutters.).One bed-cleaning Tool and  one V-Tool (90 degrees, diameter of 6mm and breadth of 32mm).  Tool holders or edge case matching the tools.
Other Tools	1.two wrenches (22,30 style)and one hexagon wrench  2.two photoelectric switches  3.six sets of clamps 4.one water pump, one bucket  5.one data line (connected with computer),
Software	Type3/Artcut & Artcam in Windows 98/2000/XP/7. one PCI card,  English User Manual, warranty card and

Company Information
Jinan Firm CNC Equipment Co., Ltd is situated in Jinan city, Shandong province.
We are a professional and good reputation manufacturer of CNC router,laser engraving machine,
CNC plasma cutter, laser cutting machine, laser marking machine in China to the new and existing customers
that are spread throughout the South America, Middle East, Southeast Asia, Africa, Europe and other counties of the world.
the machines has passed the EU CE SGS certificate.The aim of Jinan Firm CNC Router is to continuously upgrade the technique,
to help our customers produce the best quality and high precision products.

Package:
1) Foam and wrapping film on the surface of the machine inside. Rain-proof, Dust proof.
2)Standard export plywood case. Upwards, moistureproof shipping marks. Safety guaranteed.
3) fumigation-free
4)With shipping mark if you like.
5)Outside: Marked packing size, model, weight and other information

After sale service
1. 24 hour Technical support by phone, e-mail or MSN around the clock.
2. Friendly English version manual and operation video CD disk.
3.7-15 working days after down payment or full payment.
4. Machine will be adjusted before it is delivered; operation disk/CD was included.
5. Our technician can give you remote guide online (Skype or MSN) if you have any question.
6. Engineers available to service machinery overseas, seller and buyer discuss the charges.
