• Model NO.：FM- 1325MT
• Customized：Customized
• Condition：New
• Color：Customized
• Brand：Firm
• Working Area：1300*2500*200mm
• Table：Vacuum Table
• Spindle：3kw Hqd Water Cooling Spindle
• Inverter：Fuling Inverter
• Motor and Driver：Leadshine Stepper Motor and Driver
• Rail：Taiwan Hiwin Square Guide Rail
• Ball Screw：Taiwan Tbi Ball Screw
• Rack：German Helical Rack and Pinion
• Structure：Welded Big Steel Tube Structure
• Transport Package：Wooden Box
• Specification：CE
• Trademark：FIRM
• Origin：Shandong, Jinan
• HS Code：84649012
• Production Capacity：5000 Sets,Year

Basic Info.

Model NO. FM- 1325MT Customized Customized Condition New Color Customized Brand Firm Working Area 1300*2500*200mm Table Vacuum Table Spindle 3kw Hqd Water Cooling Spindle Inverter Fuling Inverter Motor and Driver Leadshine Stepper Motor and Driver Rail Taiwan Hiwin Square Guide Rail Ball Screw Taiwan Tbi Ball Screw Rack German Helical Rack and Pinion Structure Welded Big Steel Tube Structure Transport Package Wooden Box Specification CE Trademark FIRM Origin Shandong, Jinan HS Code 84649012 Production Capacity 5000 Sets/Year

Product Description

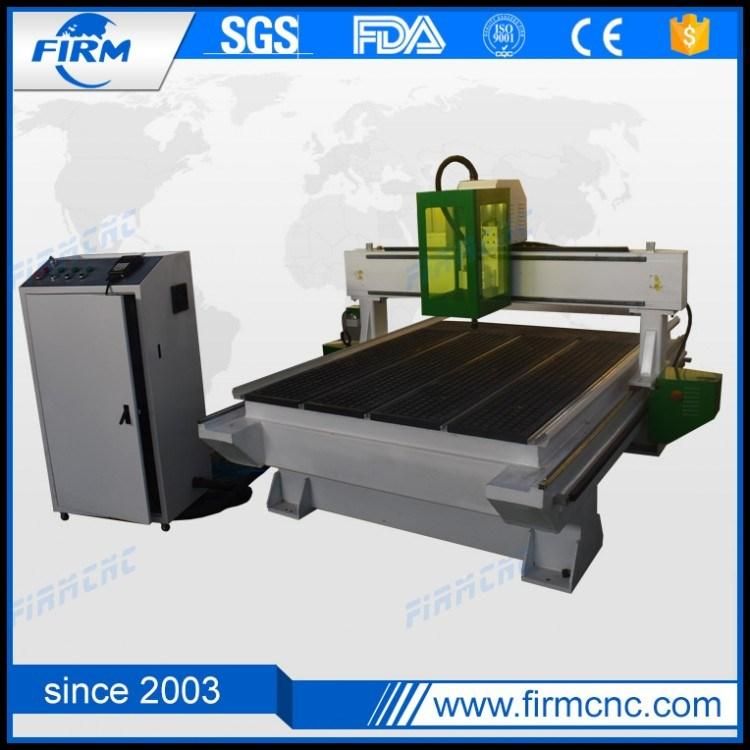

Firm 1325simple DSP Controling Woodworking CNC Router for Design Engraving



Features:
1. Robust square steel machinery body, stiff not deforming and tempering aging treatment, reasonable & advanced welding procedure, ensure stability of machine.
2. The special instruments to eliminate welding stress, high precision machining planer ensure the precision and no deformation.
3. The major machine body makes stability and no shacking high speed.
4. XYZ all apply imported screw, high precision gear frame and linear square guide, ensure the high accuracy.
5. The professional mechanical design, scientific a structure and generous appearance, gantry height 200MM can ensure Z axis working size.
6. XYZ axis use anti-dust system, prevent dust working, make sure the long lifespan of spare parts.
7. High quality drive motors, spindle motors, cables inverters, etc.
8. Powerful dust extraction system to prevent no dust In the process of machining.
9. Strong adsorption system to ensure the efficiency is greatly improved in the process of machining.
10. The advanced professional control system compatible with many instructions
Formats, may achieve process function in interruption of power supply, breakpoint
And next day which is more convenient and save labor.
11. Professional CNC control system, can compatible with many kinds CAM software, such as: TYPE3/ARTCAM/UG/PRO-E/MASTERCAM.

Techncial specification

Brand	FIRM
Model	FM1325
Machine Size (mm)(W*L*thickness)	3070*1970*1550mm
Table size(mm)	1600*3100
Engraving area (W*L*thickness)(mm)	1300*2500*200
Working Form	Full-automatic
Spindle Power	3.0KW water cooling spindle
Spindle Rotate(rpm)	0~24000RPM
Motor Driver	Leadshine Stepper motor (Chinese servo motor or imported servo motor is optional)
Tool Diameter(mm)	3.175mm, 4mm, 6mm, 12.7mm
Machine Structure	Welded big steel tube structure
Transmission System	X Y axis with German helical rack and pinion, Z with Taiwan TBI ball screw
X,Y,Z Rail	Taiwan Hiwin square rail
Mechanical Accuracy	<0.03mm
Engraving Speed(mm/min)	8000~12000mm/min
Feeding Speed	manual
Data Transmission	PC connect
Support Format	G code or HPGL
Working Voltage	AC220V/60Hz or 380V/50Hz
Support Format	G Code or HPGL
Range of Application	main for Woodworking relief engrave ,Cutting , Hollow
Machine Net Weight	1650Kg

Samples

Packaging and Shipping
Water-proof plastic film package with foam protection in each corner.
Solid Seaworthy Wood Box Package with Steel Belt.
Save space as much as possible for container loading.

After sale service
1. 24 hour Technical support by phone, e-mail or MSN around the clock.
2. Friendly English version manual and operation video CD disk.
3.7-15 working days after down payment or full payment.
4. Machine will be adjusted before it is delivered; operation disk/CD was included.
5. Our technician can give you remote guide online (Skype or MSN) if you have any question.
6. Engineers available to service machinery overseas, seller and buyer discuss the charges.

Company information:
FIRMCNC Group located in Jinan,Shandong PR, Founded in 2003. Leader of laser marking machine appliance manufacture.
We are an all-round enterprice,which is comprehensive in R&D, manufacture, and sales on laser marking machine appliances.



Customers often ask
1.Can you recommend a plasma machine to me ?
Yes, In order to give you a suitable plasma machine,pls tell me the max working area, materials for processing and the thickness
for materials processing engraving or cutting. Then perfect suitable plasma machine will be recommended

2.Do you have operation manual and working video?
Yes, after we confirm order, operation manual will be send to you.

3.Does your company can processing my samples?
Yes, we can

4.If I bought machine, but don't know how to operation, what I can do?
Our engineer will teach you how to operation the machine through manual, video call or email, I still aso will help you .

5.How am I going to work on service parts on the machine? Example what if parts need to be replaced?
6.Does your engineer do aftersale service at abroad? how much cost?
