• Model NO.：DW1325
• Customized：Customized
• Condition：New
• Color：Customized
• OEM：Accepted
• Customization：Accepted
• Flat Engraving Area：900X2500mm
• Cylinderical Wood Engraving Area：Diameter: Max310mm Length Can Be Customized
• Control Method：CNC
• Control System：PCI Card
• Rotary：Optional
• Engraving Machine Type：CNC Router
• Transport Package：Plywood Box, Free From Fumigation
• Specification：CE FDA
• Trademark：dwin made in china
• Origin：Jinan, Shandong, China
• HS Code：846599
• Production Capacity：50sets Per Month

specifications:ModelDW1325 cylinderical cnc router
1
X,Y,Z Working Area1300x2500x200mm
2
Table Size1380×3040mm
3
X,Y,Z Traveling Positioning Accuracy±0.05/300mm
4
X,Y,Z Repositioning Positioning Accuracy±0.05mm
5
Table SurfaceBakelite Vacuum Ttable (Option:T-slot table)
6
FrameWelded strucutre
7
X, Y StructureRack and Pinion Drive,Hiwin Rail Linear Bearings
8
Z StructureBall Screw, Hiwin Rail Linear Bearings
9
Max.Power Consumption (Without spindle)3.0Kw
10
Max.Rapid Travel Rate50000mm/min
11
Max.Working Speed25000mm/min
12
Spindle Power Motor34.5kw water cooling  or HSD for choice
13
Spindle Speed0-24000RPM
14
Drive MotorsStepper system(Option:Servo System)
15
Working VoltageAC220V/50/60Hz,1PH (Option: 380V 3PH)
16
Command LanguageG Code
17
Operating SystemDSP System (Option: Mach3 PC Software)
18
InterfaceUSB
19
Flash Memory128M(U Disk)
20
ColletER25
21
X,Y Resolution<0.02mm
22
Software CompatabilityType3 software,Ucancam software(Option:Artcam software)
23
working temperature0ºC~45ºC

Parts of the machine can do some changes as your requirement:
1. Motor (stepper or sever motor)
2. Spindle ( air-cooling or water-cooling spindle)
3. Guide rail (round guide rail or square guide rail)
4. The table of the machine (Vacuum table, T-slot table, Combination of Vacuum table & T-slot table, normal table, table moving)

3d models cnc engraver Standard accessories
DSP handle, cable, Water cooling system, Power cable, Clamp, Wrench, Bit, Collet, Other tools

Company Advantages
1, First-class factory meets international production plant's standard, ten years' manufacture and export experiences
2, Own most advanced domestic cnc machining production equipments
3, 5-9 days machine production time, one year warranty and lifetime free maintenance
4, OEM and ODM services available
5, Same quality, our price and service are better; Same price, our quality and service are better
6, with CE, FDA, SGS, ISO9000 certifications

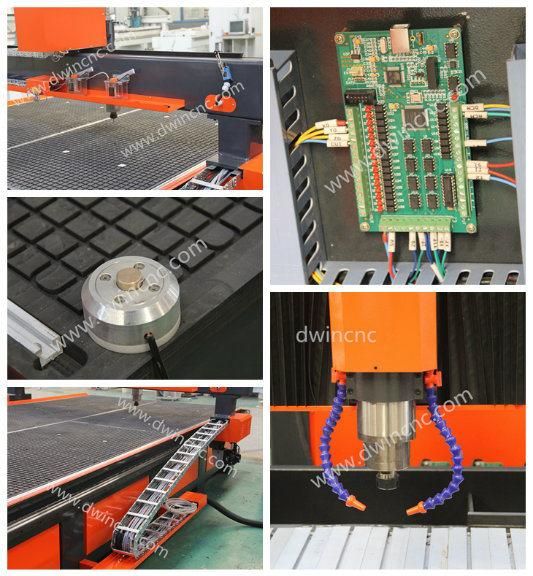

Machine details and samples


Samples made by the machine
