Plywood 8FT Face Veneer Clipper Machine
Linyi Sin San Lin Smart Machinery Co., Ltd.- Type：Clipper
- Automatic：Automatic
- Certification：CE, ISO
- Width：4FT and 8FT
- Transport Package：Plastic Film Packing
- Specification：5280 x 3530 x 1135 mm
Base Info
- Model NO.：VC2600
- Trademark：METRO
- Origin：China
- HS Code：84659600
- Production Capacity：100sets,Month
Description
Basic Info.
Model NO. VC2600 Trademark METRO Origin China HS Code 84659600 Production Capacity 100sets/MonthProduct Description
CNC Veneer Rotary Clipper MachineMachine Introduction
This is a kind of machine designed for cutting the veneer which has been peeled from veneer peeling lathe. The blade
is fixed on a light aolly knife holder, and cuts the veneer against the supporting drum.
It will take about 1/20 second for one stroke.
Our product has obstained ISO certification, and has been sold well in market overseas.
Technical Parameters
| Model | VC2600 |
| Max width of clipped veneer | 2700 mm |
| Length of clipping blade | 2700 mm |
| Max line speed | 42 m/min |
| Max feeding speed | 42 m/min |
| Number of blades | 2 pcs |
| Cutting Power | 4 kw |
| Feeding power | 1.1 kw |
| Size | 5280 x 3530 x 1135 mm |
| Weight | 2000 kg |

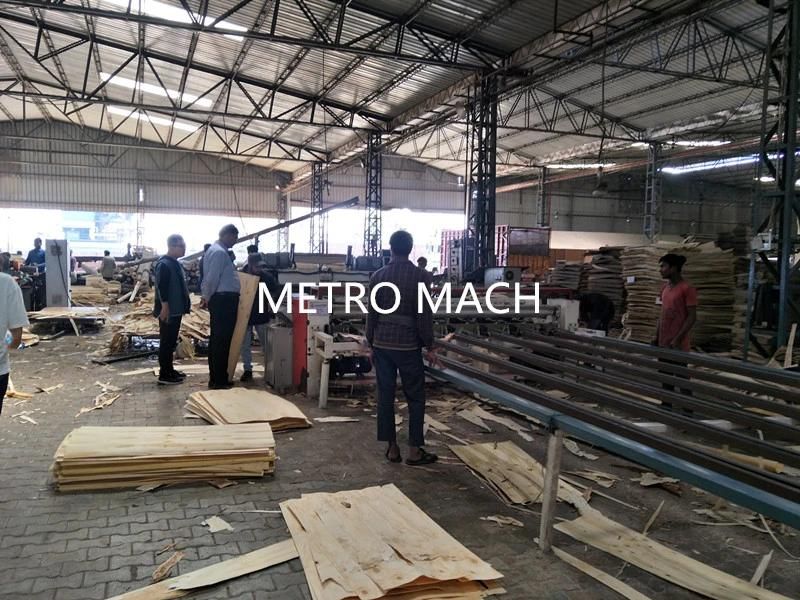

More photos
