• Model NO.：HY01D523B
• Customized：Customized
• Color：Customized
• Model：Hy01d523b
• Spec：220V,1.5kw
• Electric Current(a)：7A
• Gross Weight(Kg)：2.1kg
• Transport Package：Expotr Carton
• Specification：CE,ROHS,HSG
• Trademark：JKONGMOTOR
• Origin：China
• Production Capacity：100000PCS

Basic Info.

Model NO. HY01D523B Customized Customized Color Customized Model Hy01d523b Spec 220V/1.5kw Electric Current(a) 7A Gross Weight(Kg) 2.1kg Transport Package Expotr Carton Specification CE/ROHS/HSG Trademark JKONGMOTOR Origin China Production Capacity 100000PCS

Product Description

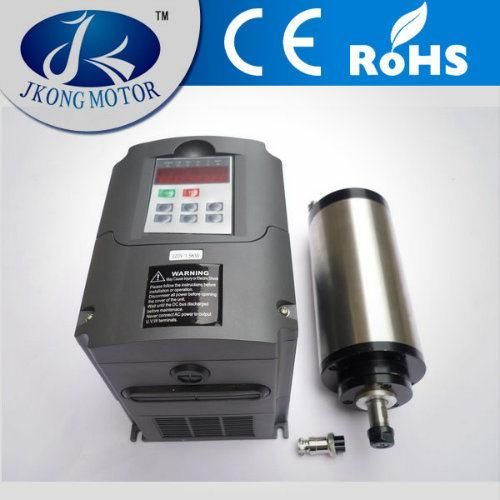

Water cooled spindle motor driver

HY series usual inverter

PID control; advanced calculous PID closed-loop arithmetic, quick responding speed and high suitability;
Easy PLC function can realize 16 legs of speed and inverter control function;
RS485 communication port, adopting standard international MODBUS main circuit control;
With extremely strong anti-jamming capability
Low output ratting torque0.5HZ-150%, low speed running ability;
Carrier adjustable by 16KHZ, completely soundless working environment;
Broad voltage working area, normal running in 304V-456V;
Auto voltage regulation (AVR) technique, for ensuring the inverter load capability;
Various control technique by both synchronization and non-synchronization, dynamically realize fast starting without changing brakes;
With perfect error protection and short circuit starting protection capability;






Serial Number	Type	Spec	Electric current(A)	Package Size	Product Size(mm)	Gross Weight(kg)	Net Weight(kg)
1	HY01D523B	220V/1.5kw	7	215×172×205	168×124× 161	2.1	1.6
2	HY02D223B	220V/2.2kw	10	215×172×205	168×124× 161	2	1.6
3	HY03D023B	220V/3kw	13	215×172×205	168×124× 161	2.1	2
4	HY03D723B	220V/3.7kw	9	275×208×230	220×150× 175	3	2.5
5	HY01D543B	380V/1.5kw	4	215×172×205	168×124× 161	2.08	1.6
6	HY02D243B	380V/2.2kw	6	215×172×205	168×124× 161	2.1	1.6
7	HY03D743B	380V/3.7kw	9	275×208×230	220×150× 175	3	2.5
8	HY05D543B	380V/5.5kw	13	275×208×230	220×150× 175	3	2.5
9	HY07D543B	380V/7.5kw	17	330×245 ×260	297×217× 212	5	4.8




WHY YOU CHOOSE US:

 We are a professional manufacturer for Stepper motor , Stepper driver, BLDC motor and DC motor. we can supply OEM service.
Our products all with CE and ROHS.
Welcome you visit our company Changzhou Jingkong Motor&Electric Appliance Co.,Ltd

Depending on advanced technology and knight service, we establish a good and diligent team and keep nice business relationship with a large amount of worthy clients in global market. We are prepared to provide the best products to clients at competitive price.

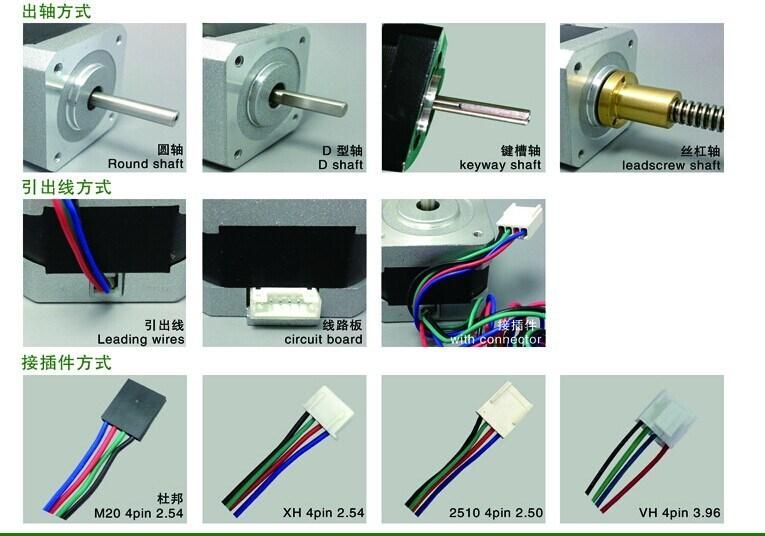

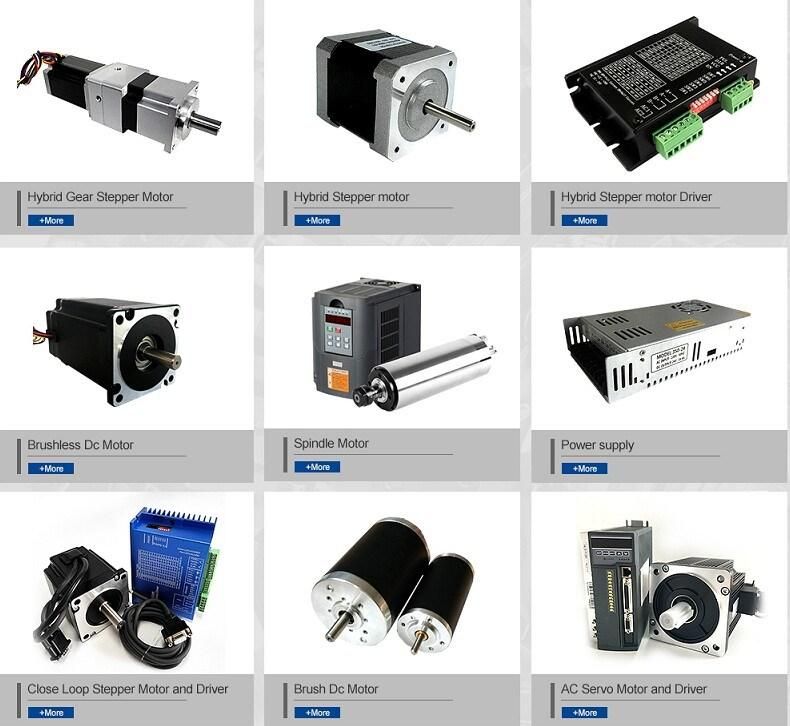

Our Products:
