• Model NO.：MB106H
• Cutter Shaft：2
• Spindle Speed：＞5000rpm
• Process Type：Heavy Processing
• Certification：CE
• Transport Package：Plywood Case
• Specification：760*1060*1270mm
• Trademark：N,A
• Origin：China
• HS Code：84659200
• Production Capacity：500 Sets,Month

ModelMB1013EMax. planing width1300mmPlaning thickness8-200mmMin. planing length>=300mmMax. planing amount<=4mmSpindle speed4500-4600r/minSpindle Motor power15kwFeeding motor power3kwLifting motor power0.75kwSpindle cutting diameterφ125mmAutomatic Feeding speed8;12m/minOverall dimensions1205*1670*1470mm



Advantages:



1, the bed body structure, not easy to deform, to ensure long-term stability

2, the three rollers of the workbench are equipped with simultaneous fine adjustment devices

3, the feeding end double feeding roller, the feeding is more reliable and smooth

4, the four-column lifting of the workbench, the lifting is more stable, ensuring the accuracy of wood planing

5, the new feeding roller adjustment device, the adjustment is more convenient

6, frequency control can be based on the thickness of the wood, soft and hard set feed speed

7, can set the working lifting size according to the thickness of the wood, to ensure the accurate thickness of the wood planing

8, according to user needs can choose ordinary planer shaft or spiral planer shaft

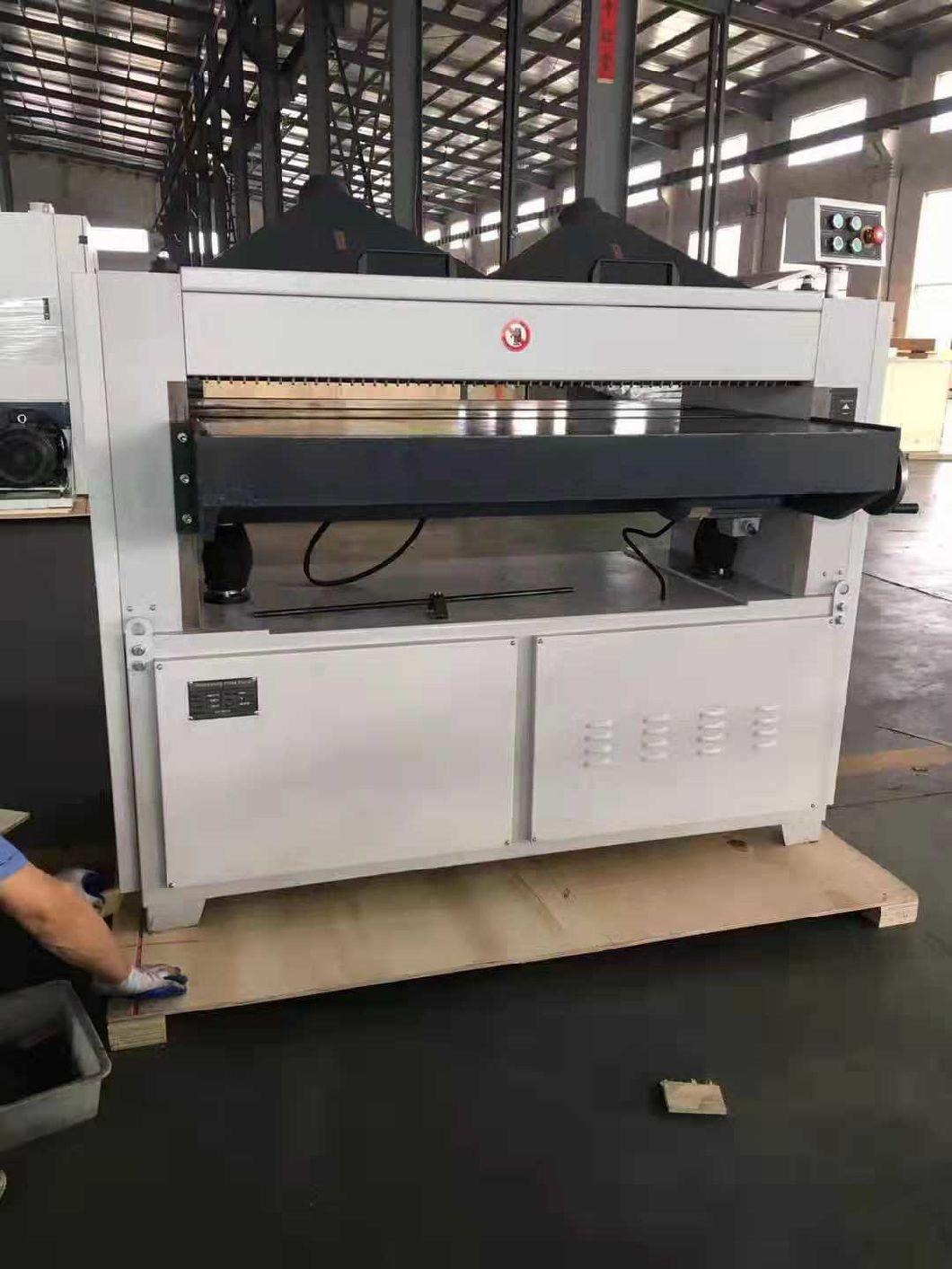

Packaging & Shipping:

Plywood case or as your request.





For more details, pls feel free to contact us.
