• Model NO.：ZD400T
• Certification：CE, ISO
• Customized：Customized
• Condition：New
• Color：Customized
• Dimension of Sliding Table：3200*415mm
• Gross Cut Capacity：3200mm
• Main Saw Motor Power：5.5kw(7.5HP)
• Speed of Main Saw Spindle：3000,4000,5000r.p.m
• Max Cutting Height：125mm
• Scoring Saw Spindle Diameter：22mm
• Tilting Saw Group：0-45°
• Diameter of Main Saw Blade：400mm
• Main Spindle Diameter：30mm
• Diameter of Scoring Saw Blade：120mm
• Transport Package：Wooden Case
• Specification：3CBM
• Trademark：QDZD
• Origin：Qingdao
• HS Code：84569100
• Production Capacity：500sets,Year

Basic Info.

Model NO. ZD400T Certification CE, ISO Customized Customized Condition New Color Customized Dimension of Sliding Table 3200*415mm Gross Cut Capacity 3200mm Main Saw Motor Power 5.5kw(7.5HP) Speed of Main Saw Spindle 3000/4000/5000r.p.m Max Cutting Height 125mm Scoring Saw Spindle Diameter 22mm Tilting Saw Group 0-45° Diameter of Main Saw Blade 400mm Main Spindle Diameter 30mm Diameter of Scoring Saw Blade 120mm Transport Package Wooden Case Specification 3CBM Trademark QDZD Origin Qingdao HS Code 84569100 Production Capacity 500sets/Year

Product Description

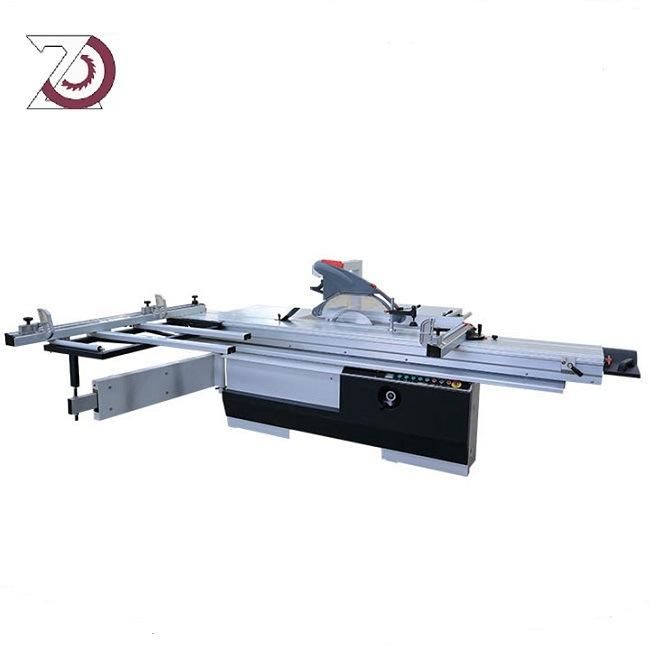

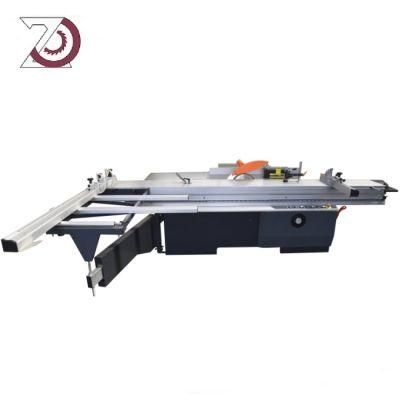

ZD400T 3200mm Sliding Table Panel Saw Wood Working Machine for Wood Sheet/ Plywood Plate


Technical Specification:




Type	ZD400T
Dimension of sliding table	3200x415 mm
Gross cut capacity	3200 mm
Width of cut between saw blade and rip fence	1250 mm
Tilting saw group	0-45°
Diameter of main saw blade	400 mm
Max cutting height (90°)	125 mm
Speed of main saw spindle	3000/4000/5000 r.p.m
Main saw motor power	5.5 kw
Main spindle diameter	30 mm
Diameter of scoring saw blade	120 mm
Speed of scoring saw spindle	8000 r.p.m
Scoring saw motor power	1.1 kw
Scoring saw spindle diameter	22 mm
Lifting of saw blade	Electrical lifting
Cutting degree readout	Digital readout
Weight	1100 KGS
Overall dimension	3250x3150x900 mm

Feature:

1. Apply to processing all kinds of density boards, shaving boards, artificial board, ABS board, PVC board, MDF board, organic glass plates and solid wood and others with wood structure and similar hardness.
2. Moveable table guide track is chromium steel bar structure, exact and durable
3. The sliding table is made of high strength extruded aluminum alloy, and it is high in strength and won't bent
4. With oxidation treatment, the sliding table surface is beautiful and durable

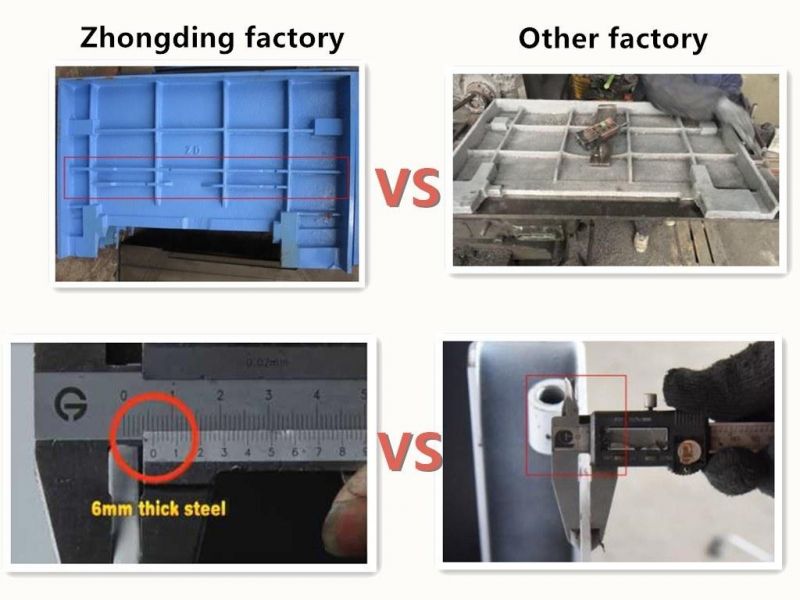

5. The body is welded with heavy-duty steel and with special heat treatment, better stability and lower noise
6. The saw blade lifting is electrical controlled with titling digital display to make the operation more precision simple

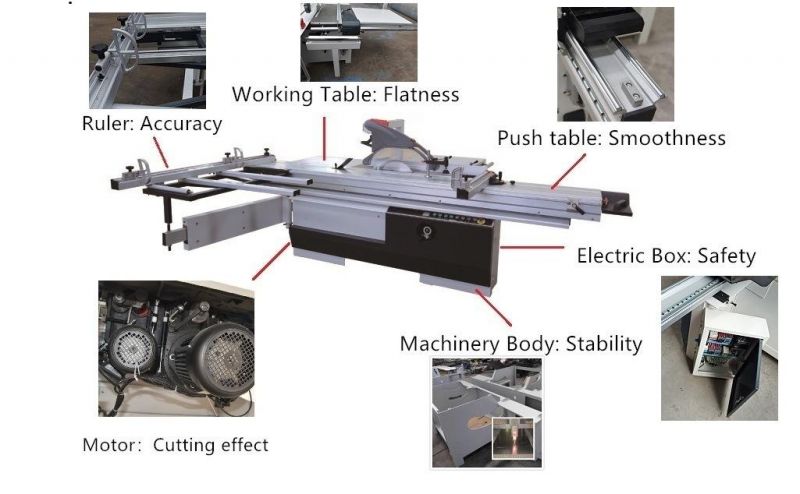

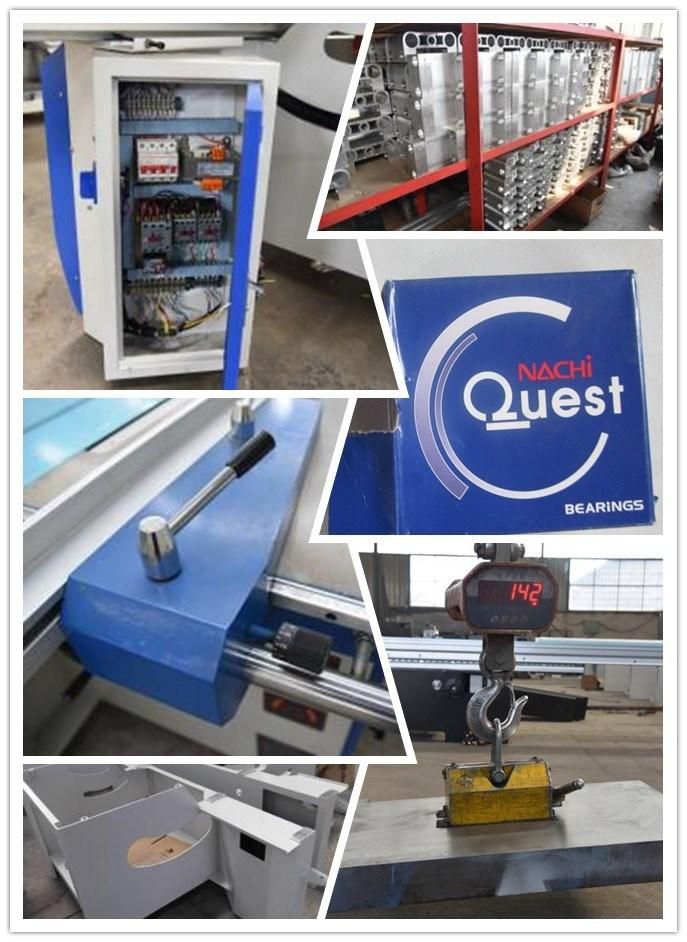

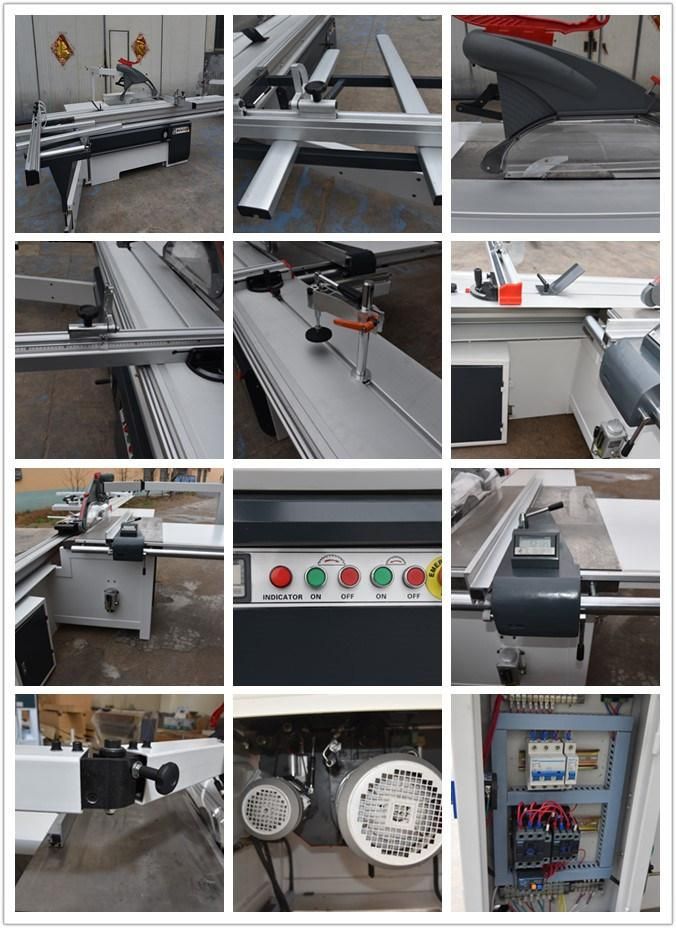

Product Details:

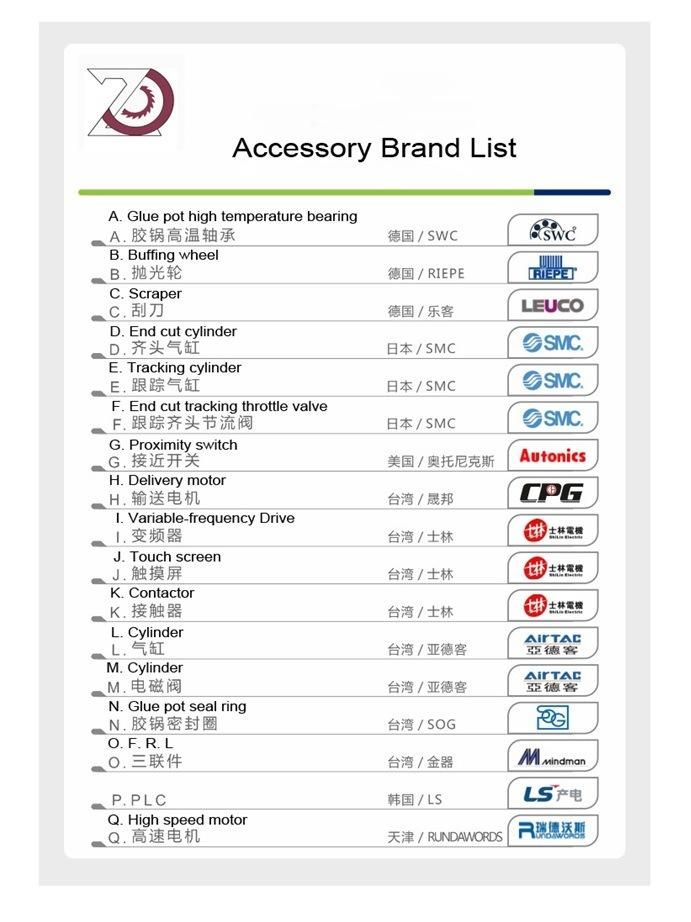

Our accessories

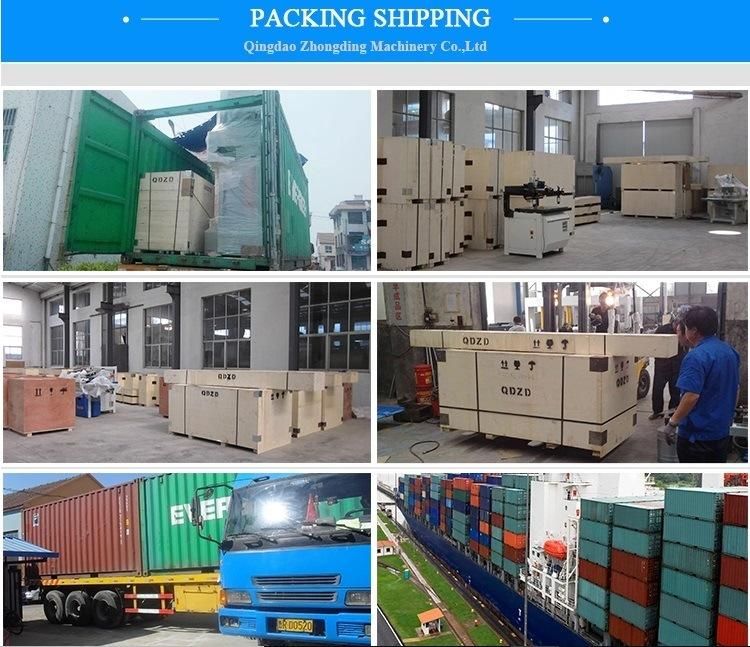

Package and Shipping



Our service

(1) Pre-sale services:

* Provide the free consultation of the equipment .

* Provide the standard device and the flow chart.

* According to the clients' special requirement, offering the reasonable plan and free design helping to

select the equipment.

* Welcome to visit our factory.

(2)Services during the sales:

* Inspect the machine before leaving the factory.

* Oversea install and debug the equipment.

* Train the first-line operator.

(3)After sale services:

* 24 hours online service.

* Provide the VIDEO with Install and debug the equipment.

* Provide technical exchanging.

Certificate:




Our company:Qingdao Zhongding Machinery Co., Ltd is professional at manufacturing woodworking machines.
Our main products includes: sliding table saw(panel saw), edge banding machine, hydraulic cold press, hot press, carpenter drilling machine ( boring machine), etc.
We are factory, we provide the machine with reasonable price and high quality, and welcome to visit our factory and our products.
