• Model NO.：DW1325
• Customized：Customized
• Condition：New
• Color：Customized
• OEM：Accepted
• Customization：Accepted
• Spindle Power：3kw
• Spindle Cooling Mode：Water Cooled
• Control System：DSP Ncstudio, Mach3 or Others
• Control Method：CNC
• Engraving Machine Type：CNC Router
• X,Y Working Area：1300X2500mm
• Z Working Area：200mm
• Rotary：Optional
• Transport Package：Plywood Box, Free From Fumigation
• Specification：CE FDA
• Trademark：dwin made in china
• Origin：Jinan, Shandong, China
• HS Code：846599
• Production Capacity：50sets Per Month

 ModelDW1325 cnc wood router
1
X,Y,Z Working Area1300x2500x200mm
2
Table Size1380×3040mm
3
X,Y,Z Traveling Positioning Accuracy±0.05/300mm
4
X,Y,Z Repositioning Positioning Accuracy±0.05mm
5
Table SurfaceBakelite Vacuum Ttable (Option:T-slot table)
6
FrameWelded strucutre
7
X, Y StructureRack and Pinion Drive,Hiwin Rail Linear Bearings
8
Z StructureBall Screw, Hiwin Rail Linear Bearings
9
Max.Power Consumption (Without spindle)3.0Kw
10
Max.Rapid Travel Rate50000mm/min
11
Max.Working Speed25000mm/min
12
Spindle Power Motor3kw or 4.5kw water cooling or HSD for choice
13
Spindle Speed0-24000RPM
14
Drive MotorsStepper system(Option:Servo System)
15
Working VoltageAC220V/50/60Hz,1PH (Option: 380V 3PH)
16
Command LanguageG Code
17
Operating SystemDSP System (Option: Mach3 PC Software)
18
InterfaceUSB
19
Flash Memory128M(U Disk)
20
ColletER25
21
X,Y Resolution<0.02mm
22
Software CompatabilityType3 software,Ucancam software(Option:Artcam software)
23
working temperature0ºC~45ºC

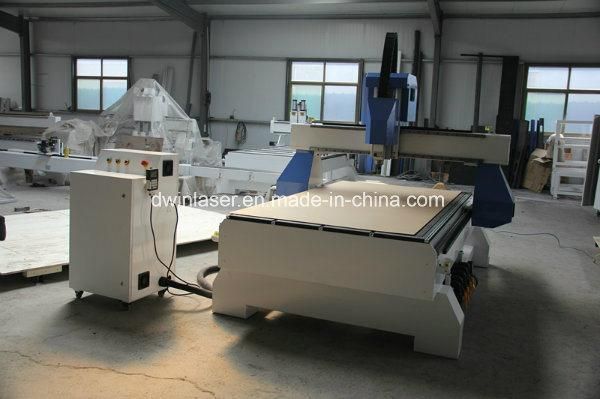

Samples

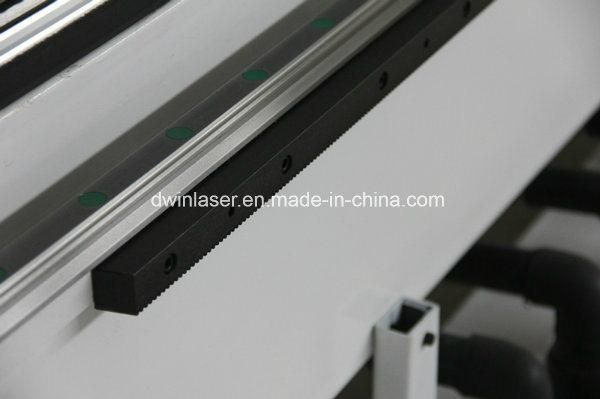

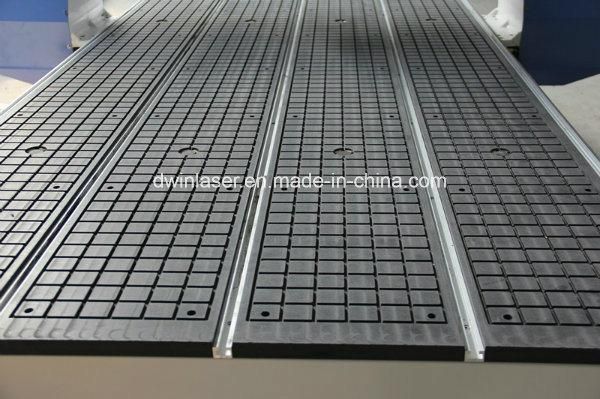

Machine parts details:




Company Information


Certification
