• Model NO.：DW1325
• Customized：Customized
• Condition：New
• Color：Customized
• Working Size：Customize Accepted
• OEM：Accepted
• Atc Amount：8 Tools
• Atc Mode：Linear
• Table Type：Vacuum Pump
• Table Size：1300X2500mm
• Control Method：CNC
• Plasma Power：160A or Others for Option
• Cutting Speed：1500mm,Min
• Control System：Starfire
• Transport Package：Plywood Box, Free From Fumigation
• Specification：CE
• Trademark：Dwin Made In China
• Origin：Jinan, Shandong, China
• HS Code：846599
• Production Capacity：50sets Per Months

working area

1300X2500X500mm

Max moving speed

40000mm/min

Max Engraving Speed

25000mm/min

Reposition Accuracy

<0.05/300mm

Spindle

9KW Italy HSD ATC spindle

Inverter

11kw Taiwan Delta inverter

Spindle rotation:

6000-24000rpm

Tool magazine and number of tools

linear  ATC, 8 tools

Tool diameter

2mm-20mm

Transmission

X, Y axis: High precision helical rack; Z axis: imported Taiwan TBI Ball Screw

X, Y, Z Rail

Taiwan HIWIN or PMI 25mm linear guide way

Beam

cast Steel

Frame

Tube structure

Table surface

vacuum & T-slot combined

Control System

Germany Siemens 808D Control System

Typeset software

Type3, Art CAM

Motor/ Driver

1kw Siemens servo(Japan YASKAWA servo for option)

Voltage:

AC380V/50HZ

ATC CNC Router machine Features:

1, Welded structure by thick profiled steel

2, Assembled with precise parts.

3, Automatic lifting device for vacuum suckers allows the easy operation for the job on the   side of working   pieces. Vacuum working table is with double cavities and bakelite material  with high absorption power.

4, Imported Germany Siemens high performance control system, separated keyboard control, color LCD display.

5, With Italian combination drills, the machine can finish various processes one time including drilling, edge cutting, engraving, slotting, and lock hole making and expanding for the wooden door panels with complicated processing requirement.

ATC CNC Router Applications:

1. WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

2.Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal wordmaking, blaster molding, and other advertising materials derivatives making.

3.Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
4.Relief sculpture and 3D engraving
5.Cylindrical object

ATC CNC Router Machine Details

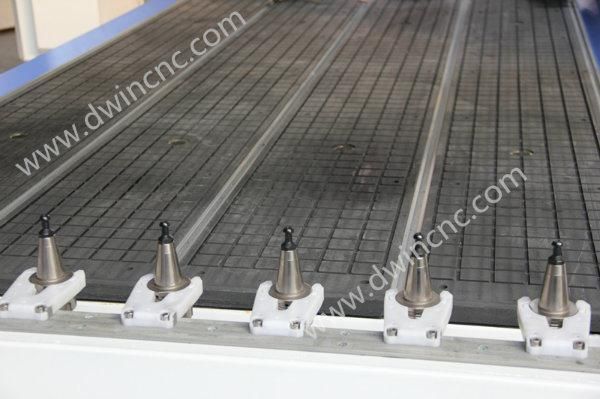

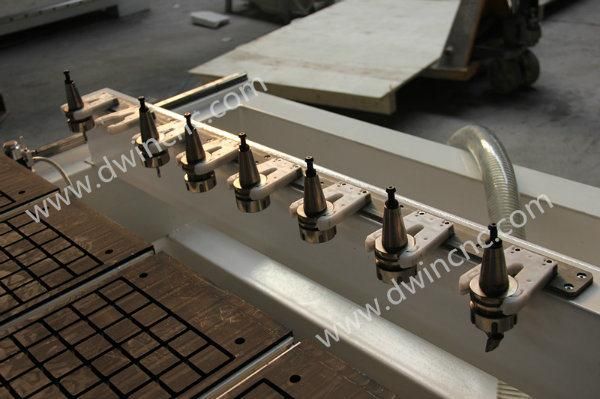

ATC Changing tools


Vacuum working table

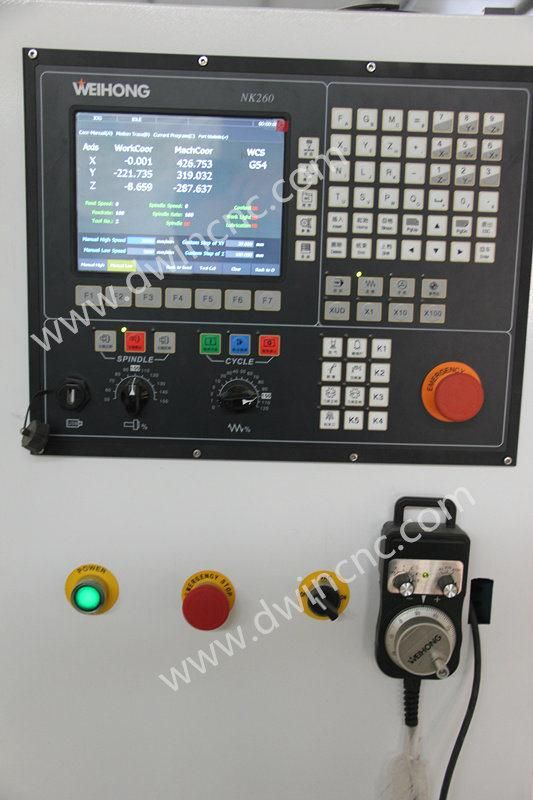

Control system






If any questions, please email me or send the inquiry at the below.
