• Model NO.：MZ73212B
• Energy Saving：Energy Saving
• Warranty：1 Year
• Customized：Customized
• Condition：New
• Transport Package：Wooden Case
• Specification：2.4CBM
• Trademark：QDZD
• Origin：China
• HS Code：84659500
• Production Capacity：500sets,Year

Basic Info.

Model NO. MZ73212B Energy Saving Energy Saving Warranty 1 Year Customized Customized Condition New Transport Package Wooden Case Specification 2.4CBM Trademark QDZD Origin China HS Code 84659500 Production Capacity 500sets/Year

Product Description

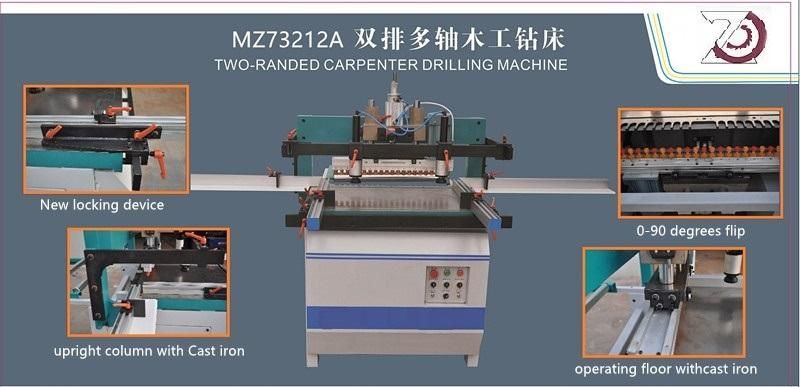

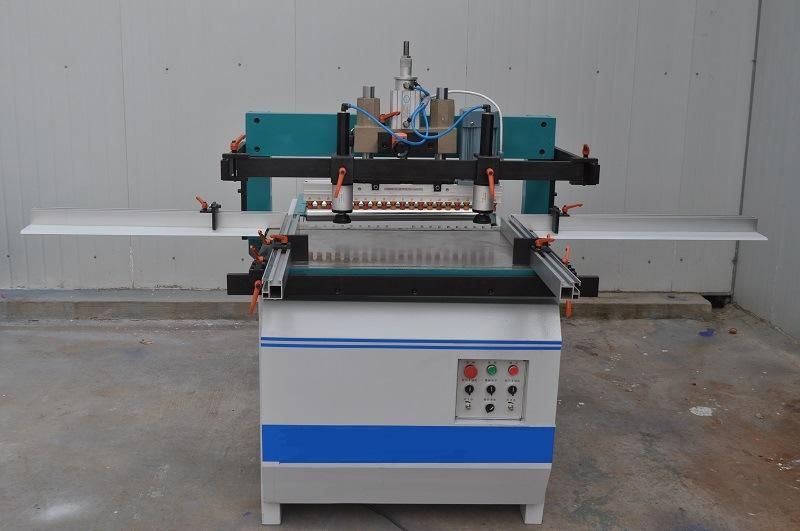

Double Heads Hinge Boring Machine for woodworking

Technical Specification: MZ73212B


Max. diameter of holes	35 mm
Depth of drilled holes	0-60 mm
The number of spindles	21*2
Center distance between spindles	32 mm
Rotation of spindle	2840 r/min
Max dimensions of piece to be drilled	2500*920*70 mm
Total power	3 kw
Air pressure	0.5-0.8 Mpa
Gas consumption of drilling 10 panels per minute	10L/min approximately
Suitable voltage	~380 V
Max distance of the two longitudinal heads	380 mm
Min distance of the two longitudinal heads	0 mm
Height of working plat form off ground	900 mm
Weight of the whole machine	680 kg
Over size	1900*2600*1600 mm
Packing size	1100*1300*1700 mm

Product Details:






Certificate:





Our Services:

(1) Pre-sale services:

* Provide the free consultation of the equipment .

* Provide the standard device and the flow chart.

* According to the clients' special requirement, offering the reasonable plan and free design helping to

select the equipment.

* Welcome to visit our factory.



(2)Services during the sales:

* Inspect the machine before leaving the factory.

* Oversea install and debug the equipment.

* Train the first-line operator.



(3)After sale services:

* 24 hours online service.

* Provide the VIDEO with Install and debug the equipment.

* Provide technical exchanging

Our company:




     Qingdao Zhongding Machinery Co., Ltd is professional at manufacturing woodworking machines. Our main products includes: sliding table saw(panel saw), edge banding machine, hydraulic cold press, hot press, carpenter drilling machine ( boring machine), etc. We are factory, we provide the machine with reasonable price and high quality, and welcome to visit our factory and our products.
