Auto Paper Sticking Machine Line/PVC Sticking Machine/Sticking Machine
Suzhou Trillion Shine Import & Export Co., Ltd.- Type：Sticking Machine
- Automatic：Automatic
- Certification：ISO
- Transport Package：Plywood Case
- Specification：Please find the below product details
- Trademark：TrillionShine
Base Info
- Model NO.：0001
- Origin：China
- Production Capacity：3000 Sets,Year
Description
Basic Info.
Model NO. 0001 Origin China Production Capacity 3000 Sets/YearProduct Description
Paper/PVC sticking machineApplicable materials:-Covering Material: Paper, PVC
-Glue: Cold glue (white latex glue)
-Base Material: MDF, plywood, particle board and other wooden boards

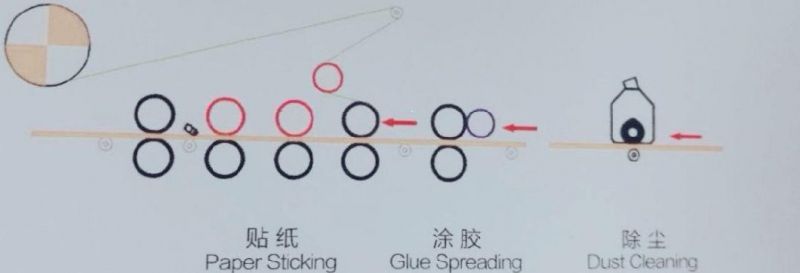

Principle:
Characteristics

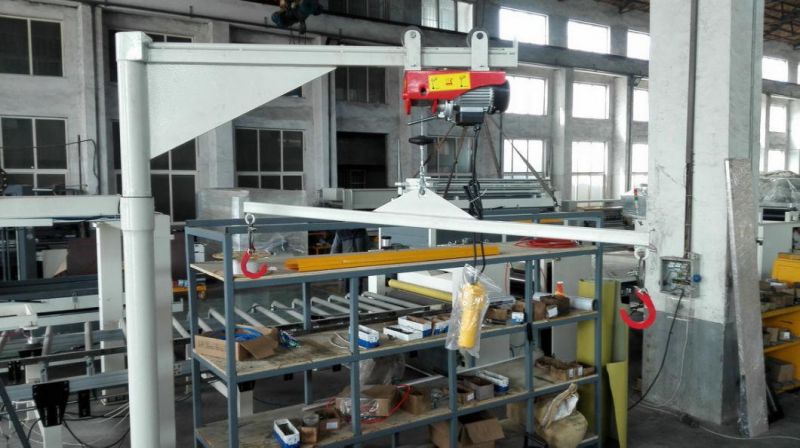

It adopts air shaft to fix film roll, which is quick and solid. The electromagnetic tension system can control the tension quickly and conveniently. It is equipped with film roll moving system which can move the film roll in place and avoid film wrinkling without stopping the machine, so it can improve the working efficiency and quality of products. It is convenient, quick, economic and labor-saving to use the electric hoist to lift the film roll group.
Technical Parameters
-Overall dimensions: 6300×2100×2550mm
-Max. width of board: 1220mm
-Thickness of board: 3~25mm
-Feeding speed: stepless adjustment
-Total power: 8Kw
-Weight: 2250kg

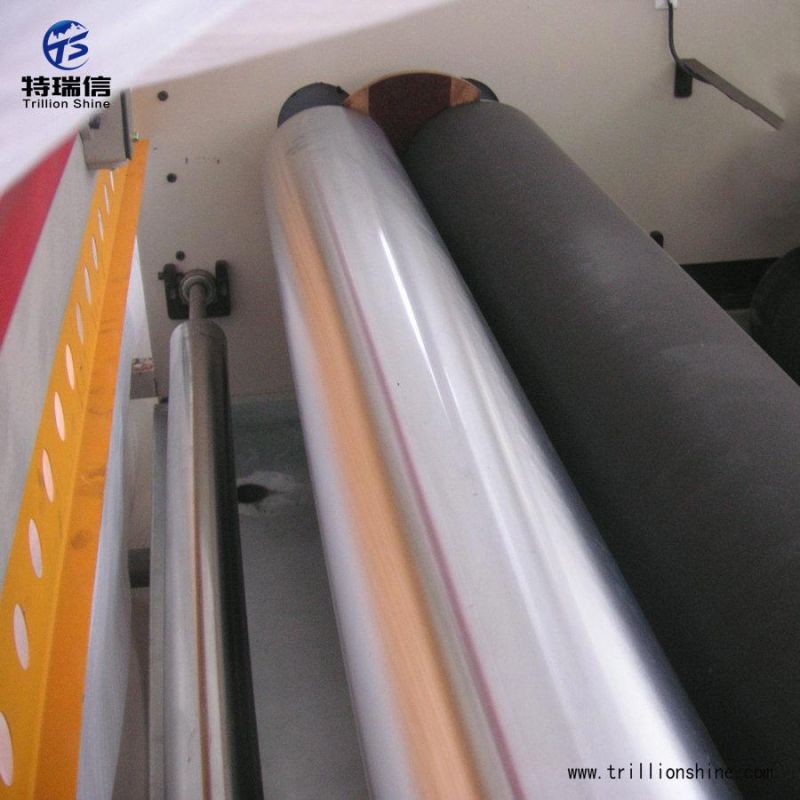

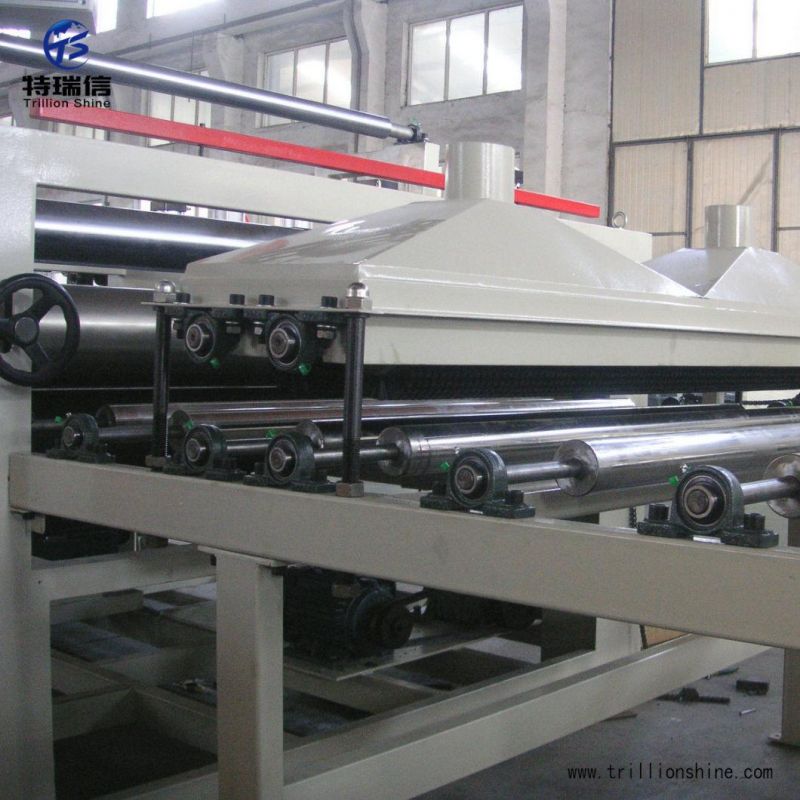

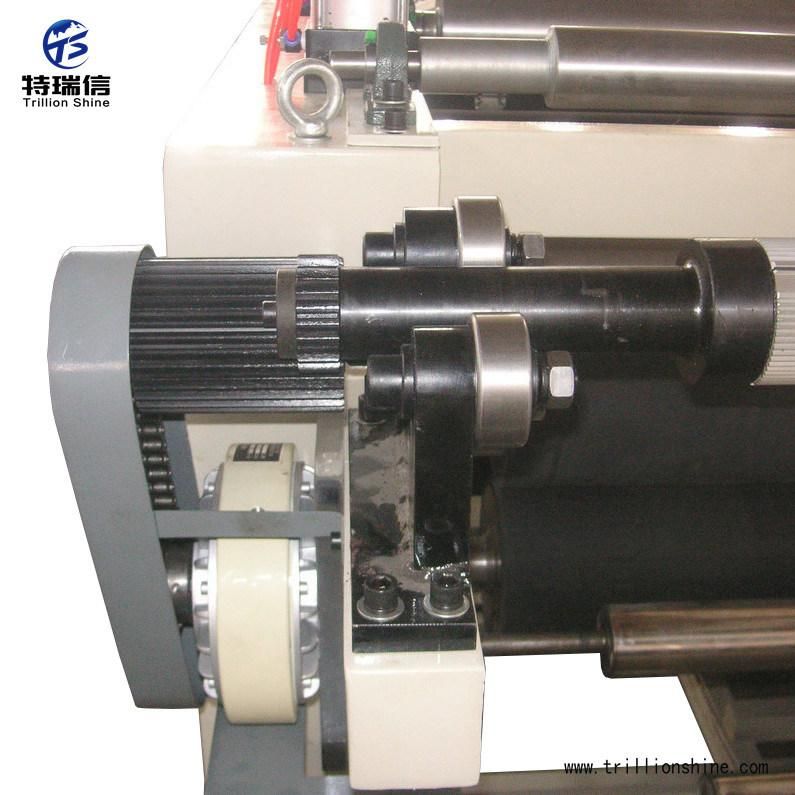

Machine details:
The finished size can be customerized.
What services to offer:
1. Provide customerization.
2. One year warranty for the machine. Liftetime after-sales service and technical support.
3. Professional team for guiding installation& commissioning.
