• Model NO.：HGJ- 260A
• Pipe Diameter：300mm
• Cyclone Diameter：900mm
• Dimension：16*2.5*3.2 M
• Keyword：Pipe Dryer
• Certification：CE
• Transport Package：Wooden Box Package, Container
• Specification：CE, SGS
• Trademark：AG
• Origin：China
• Production Capacity：80 Sets Per Year

Basic Info.

Model NO. HGJ- 260A Pipe Diameter 300mm Cyclone Diameter 900mm Dimension 16*2.5*3.2 M Keyword Pipe Dryer Certification CE Transport Package Wooden Box Package, Container Specification CE, SGS Trademark AG Origin China Production Capacity 80 Sets Per Year

Product Description

Good Quality best price Pipe Dryer sawdust dryer Agricultural Dryer Machine

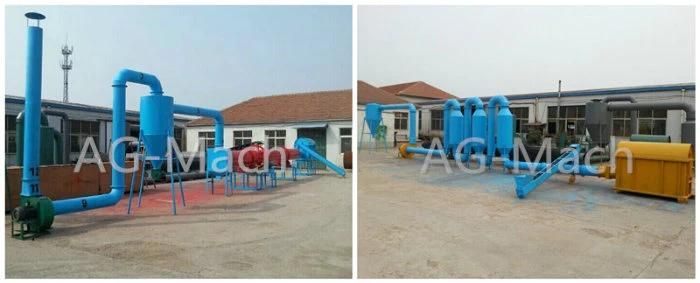

Introduction of biomass sawdust dryer:
The pipeline sawdust dryer machine is suitable for drying raw material with moisture content less than 20-25%.
If the moisture content of raw material is higher than that, it will need several times of drying to achieve the requested
moisture for further briquetting or pelletizing process.
It is suitable for drying sensitive material like sawdust, rice hull, milled wheat straw, milled cotton / corn stalks and so on.

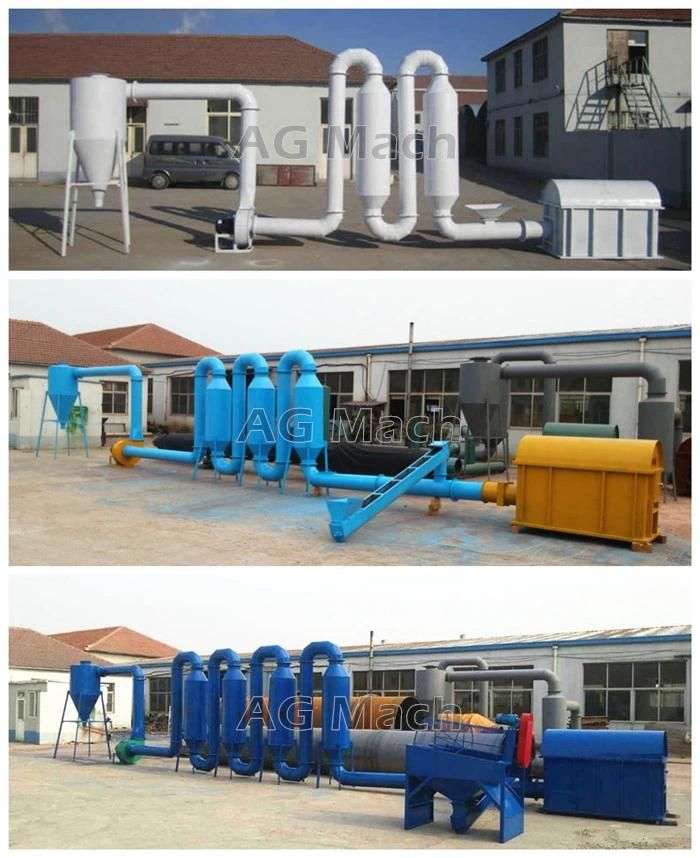

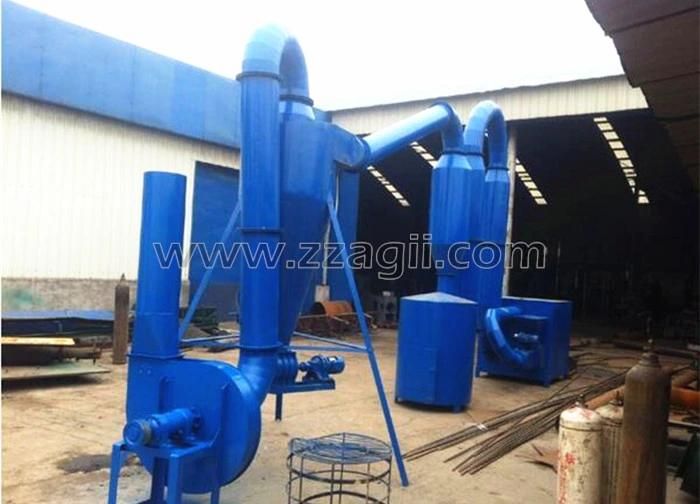

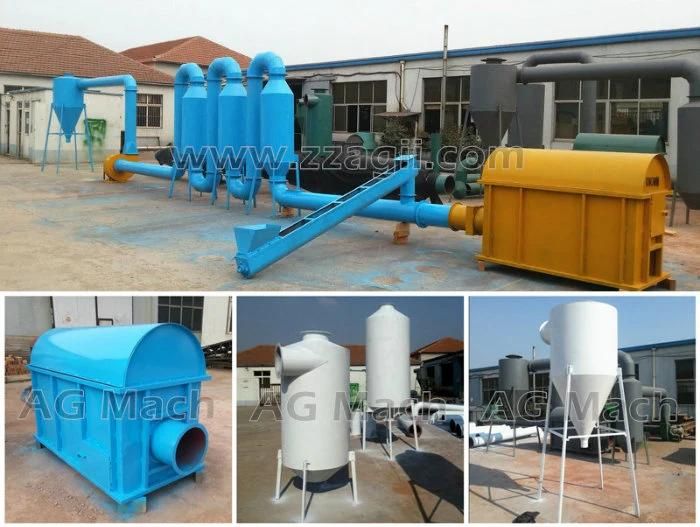

It is made up of heat stove, tube, impulse jar, function tube, fan, and cyclone separator.
It can reduce moisture from 40-45% to 8-12%.
Fuel for the furnace: wood waste, coal. Waste oil and so on.

Technical Data:

Model	HGJ- 260A	HGJ - 300A	HGJ - 350A	HGJ - 400A
Initial Moisture	25%-30%	25%-30%	20%-30%	20%-30%
Final Moisture	10%-15%	10%-15%	10%-15%	10%-15%
Main Power	4 kw	7.5 kw	11 kw	15 kw
Drying Speed	200-250 kg/h	300-400 kg/h	600-800 kg/h	800-1000kg/h
Pipe Diameter	260mm	300mm	350mm	400mm
Cyclone Diameter	780mm	900mm	1050mm	1200mm
Fuel Consumption	40-50kg/h	60-80kg/h	80-100kg/h	100-150kg/h
Dimension	9*2.5*3.1 m	16*2.5*3.2 m	18*3*3.3 m	20*3*3.5 m
Weight	1760 kg	2660 kg	3200 kg	4000 kg

Function of wood sawdust dryer:
1.Can guarantee the standard rate of the finished products
2. Can solve the problem for the uneven final particle size.
3.Adopts high technology Reliability Precision
4.unique design.and advanced heating mode by firewood.oil and electricity.



Working Principle:
Sawdust dryer include: heat furnace, the feed mouth, rotating cylinder, filter tube, material conveying pipe, the cooling
tube and the discharge port.There is a feeding mouth between heat furnace and rotating cylinder.The rotating cylinder
has a stirfrying lamina.There is a baffle between rotating cylinder and the filter tube, which also has a hole.The filter tube
was connected with therotating cylinder at one end and materials at the other end.There is a baffle in the filter tube and
a slagging whole at the bottom.The cooling tube was connected with the material conveying pipe at one end and the
discharge port at the other end.


As a result of the above-
mentioned structure, so the sawdust can be fully dried in the rotating cylinder and the sawdust can be fully spread again
before delivering into the material conveying pipe.The impurity can be blocked by the baffle,so the quality of the sawdust
can be guaranteed when it is in the material conveying pipe.Sawdust is ebullience fluidizd after theaction of the blowpipe
and the cylindrical vessel.The utility model has a simple structure, easy to use and so on.
