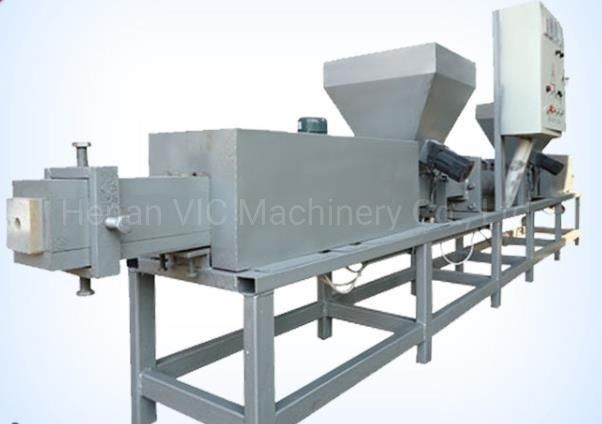

Automatic Wood Sawdust Compressed Wood Pallet Machine
Henan VIC Machinery Co., Ltd.- Warranty:1 year
- Certification:CE, ISO
- After-sales Service:online
- End Pallet Bolck Size:Can Be Designed
- End Product Shape:with Hole and Without Hole
- End Pallet Block Length:Can Be Choosen
Base Info
- Model NO.:MD-75*75
- Capacity:2m3,24h
- Power:13KW
- Transport Package:Wooden Box
- Specification:CE, SGS
- Trademark:VIC
- Origin:China
- Production Capacity:10000sets ,Year
Description
Basic Info.
Model NO. MD-75*75 Capacity 2m3/24h Power 13KW Transport Package Wooden Box Specification CE, SGS Trademark VIC Origin China Production Capacity 10000sets /YearProduct Description
Automatic Wood Sawdust Compressed Wood Pallet MachineIntroduction:1. Wood pallet making machine is used to make the block for the pallet which is used into the transportation from sawdust, wood shaving and others wood waste;
2. Middle and around is heated evenly, high strength. The end pallet block is smooth surface and waterproof, durable for use. It could soaked in water 48 hours without cracking;
3. The end pallet block's size can be made according to customer's requirement, size range from 75*75mm to 145*145mm; One machine can make two different sizes block.
The production line of the compressed wood pallet machine:
(1)Wood crusher: If the material is bigger than 5*5mm, we advice first crush into small pieces
(2)Dryer machine: If the raw material moisture is bigger than 15%, should use one dryer machine to dry them
(3)Glue mixer: Use the glue mixer to mix the material with glue
(4)Wood pallet machine: Make wood pallet block
Main date:
Model | Power (KW) | Capacity(m3/24h) | Weight (kg) | Machine size (mm) |
MD/75*75 | 13 | 2 | 1000 | 5000*600*1300 |
MD/80*100 | 13 | 2 | 1000 | 5000*600*1300 |
MD/80*120 | 13 | 2.2 | 1050 | 5000*600*1300 |
MD/90*90 | 13 | 2 | 1000 | 5000*600*1300 |
MD/90*140 | 13.5 | 2.4 | 1100 | 5000*600*1300 |
MD/100*100 | 13 | 2.2 | 1050 | 5000*600*1300 |
MD/100*115 | 13 | 2.3 | 1080 | 5000*600*1300 |
MD/100*140 | 13.5 | 2.5 | 1120 | 5000*600*1300 |
MD/140*140 | 15 | 3 | 1350 | 5000*600*1300 |
More picture

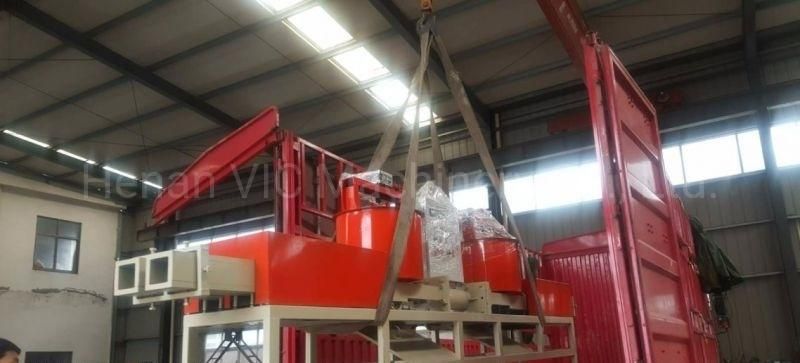

Loading goods

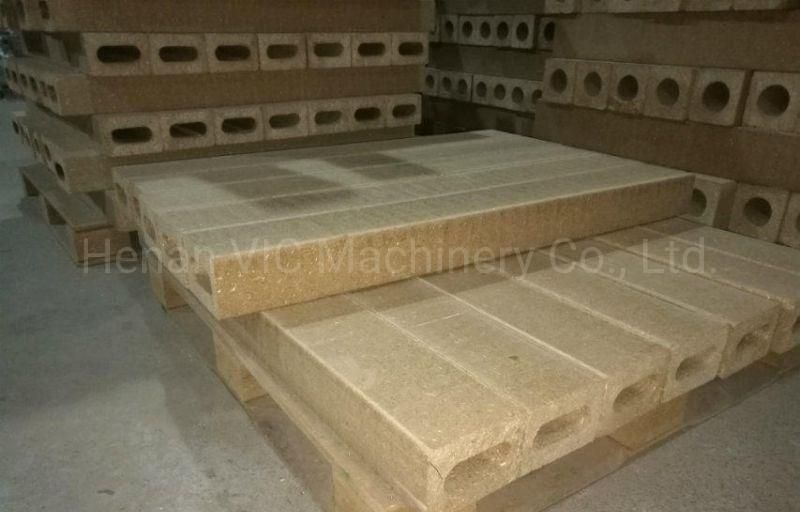

Fianal product
Package

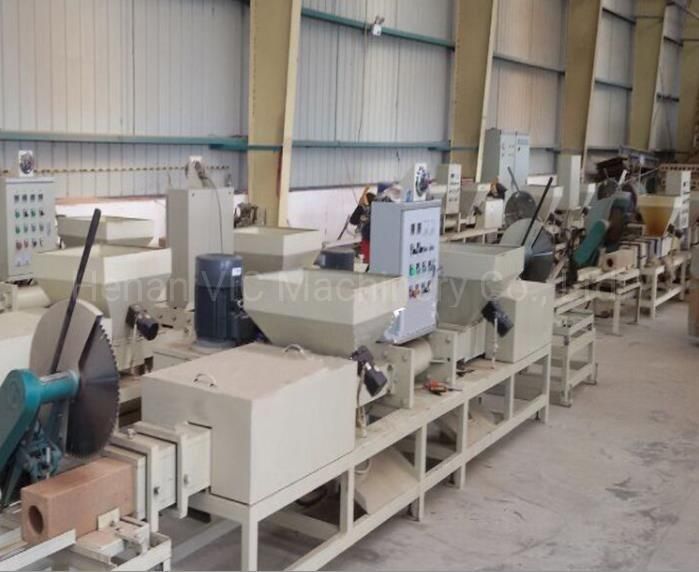

Our factory
