High Quality Wooden Dowel Making Machine / Wood Dowel Machine

Zhengzhou Honest Machinery Co., Ltd.
  • Warranty：2 Years
  • Type：Vertical Uniaxial Wood Router
  • Spindle Layout：Vertical
  • Spindle Number：Double-Spindle
  • Feed Mode：Mechanical
  • Controlling Mode：CNC

Base Info

  • Model NO.：HT-MC9212A
  • Certification：CE, TUV
  • Customized：Customized
  • Condition：New
  • Color：Customized
  • Product Name：Wooden Dowel Making Machine
  • Diameter：6mm,8mm,10mm,12mm
  • Speed：2.5m,Min
  • Spindle Rotation：3250r,Min
  • Power：0.75kw
  • Weight：100kg
  • Truncating Length：30-80mm
  • Truncating Capacity：31pieces,Min
  • Material：304 Stainless Steel
  • Transport Package：Fumigation-Free Wooden Box Packaging
  • Specification：400*300*750mm
  • Trademark：Honest
  • Origin：Henan, China(Mainland)
  • Production Capacity：31pieces,Min

Description

Basic Info.

Model NO. HT-MC9212A Certification CE, TUV Customized Customized Condition New Color Customized Product Name Wooden Dowel Making Machine Diameter 6mm,8mm,10mm,12mm Speed 2.5m/Min Spindle Rotation 3250r/Min Power 0.75kw Weight 100kg Truncating Length 30-80mm Truncating Capacity 31pieces/Min Material 304 Stainless Steel Transport Package Fumigation-Free Wooden Box Packaging Specification 400*300*750mm Trademark Honest Origin Henan, China(Mainland) Production Capacity 31pieces/Min

Product Description

High Quality Wooden Dowel Making Machine / Wood Dowel MachineProduct Description
This wooden dowel making machine used for making round rod into dowel shape and the automatic cutting machine used for cutting the wooden dowel.
Wood round rod making machine is mainly composed of support base, cutting and peeling device, feeding roller, discharging roll, speed adjusting device.
1. Support base: mainly used for supporting cutting and peeling device, cutting and peeling device, feed roller, discharge roller, motor and speed adjusting device.
2. Cutting and peeling: composed of main shaft, bearing, knife plate, blade, centering sleeve. Accordance of knife plate, blade and centering sleeve determines accuracy of processing.
3. Feed-discharge roller: composed of feed roller, discharge roller, discharge gear box, gear, chain, function to feed work piece and draw out finished product smoothly.
Technical Parameters
ModelHT-MC9212A
Diameter6mm,8mm,10mm,12mm
Speed2.5m/min
Spindle rotation3250r/min
Power0.75Kw
Dimension400*300*750mm
Weight100kg
ModelHT-MC9212B
Truncating diameter6mm,8mm,10mm,12mm
Truncating length30-80mm
Truncating capacity31pieces/min
Power0.55Kw
Dimension600*480*950mm
Weight100kg
Model HT-MC9020
Voltage 380V
Spindle speed4000r/min
Spindle motor 2.2kw
Feed motor0.75kw
Feeding speed3-5m/min
Processing diameter6-20mm
Processing lengthMore than 350mm
Dimension 650*500*860mm
Weight 320kg

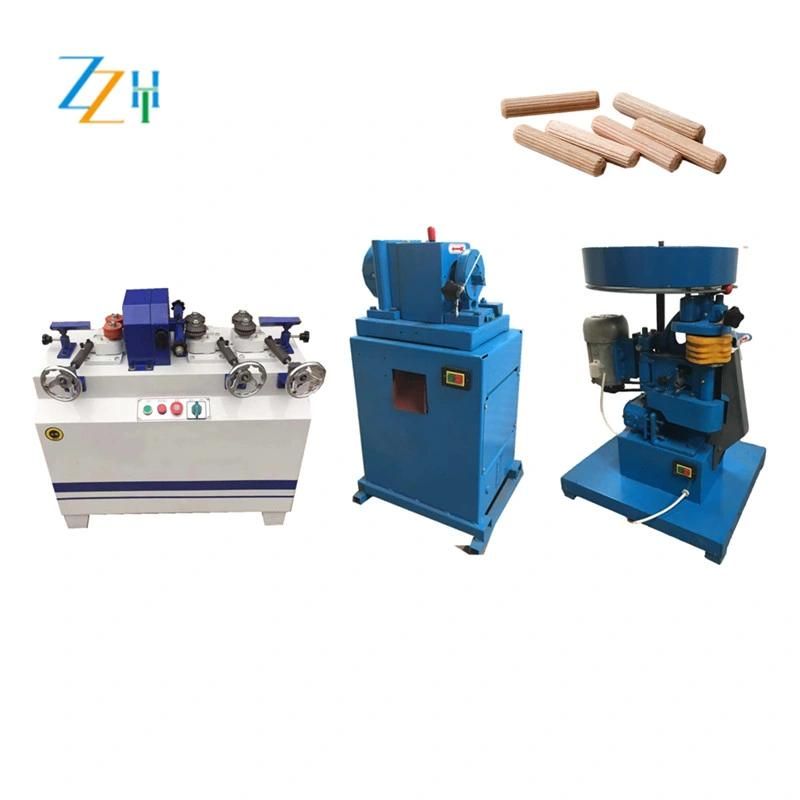

Pictures of Product
High Quality Wooden Dowel Making Machine / Wood Dowel MachineCompany Certificates
High Quality Wooden Dowel Making Machine / Wood Dowel MachineOur Customer
High Quality Wooden Dowel Making Machine / Wood Dowel MachineContact us
If you need further information, please contact us freely, we will do our best to cooperate with you.
