Pneumatic 4 Spindles Auto Tool Change Atc CNC Router
Jinan Guanjiahong CNC Machinery Co., Ltd.- Warranty:One Year
- Condition:New
Base Info
- Certification:ISO, CE, SGS
- CNC or Not:CNC
- Voltage:380V
- Application:Wood, MDF, Arylic
- Guide Rail:Hiwin 25
- Screw:Tbi 2510
- Running Mode:Servo
- Driver:Delta (Optional Yaskawa)
- Motor:750W
- Spindle:6kw & 4.5kw, Air Cooling
- Control System:Nc Studio 3L
- Transport Package:Plywood Case
- Specification:1325W-4
- Trademark:GJH
- Origin:Shandong China
- HS Code:84659900
- Production Capacity:100 Sets Per Month
- Package size per unit product:3500.00cm * 2280.00cm * 2000.00cm
- Gross weight per unit product:2000.000kg
Description
Basic Info.
Certification ISO, CE, SGS CNC or Not CNC Voltage 380V Application Wood, MDF, Arylic Guide Rail Hiwin 25 Screw Tbi 2510 Running Mode Servo Driver Delta (Optional Yaskawa) Motor 750W Spindle 6kw & 4.5kw, Air Cooling Control System Nc Studio 3L Transport Package Plywood Case Specification 1325W-4 Trademark GJH Origin Shandong China HS Code 84659900 Production Capacity 100 Sets Per MonthPackaging & Delivery
Package size per unit product 3500.00cm * 2280.00cm * 2000.00cm Gross weight per unit product 2000.000kgProduct Description

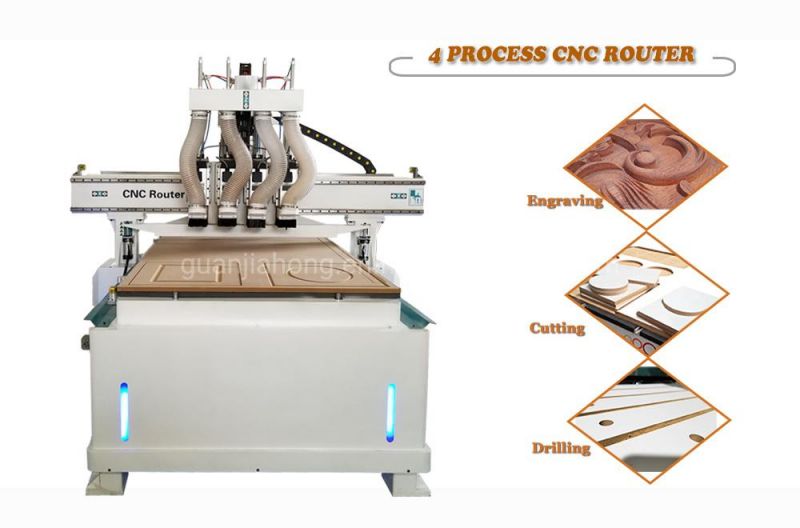

Multi Process engraving machineMulti Workstage CNC Router
Multi Spindles CNC Router
4 Workstage ATC CNC Router
from Professional cnc woodworking machine manufacturer

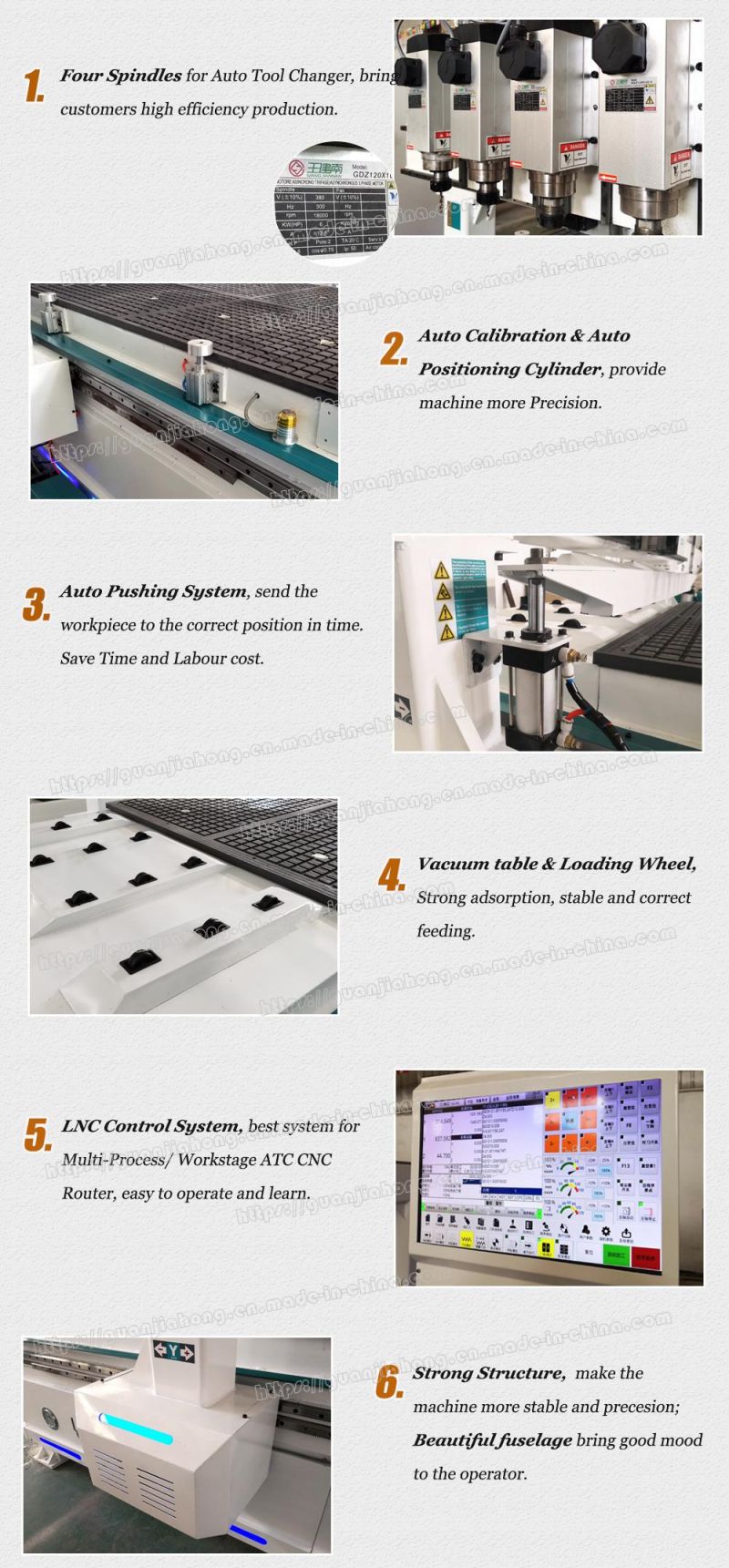

1. 1325W-4 engraving machine is designed for board, furniture, handicraft, etc. Four Workstage ATC functions bring us high-efficiency and high quality.
2. Lathe bed adopts welded structure, high strength and no variant, ensure the machining accuracy.
3. For Y axis, double motor drive, power stable operation, high precision.
4. Genuine NC Studio 95A for control system.
5. Support breakpoint processing, easy to adjust.
6. All kinds of machine models can be customized according to the clients' requirements.
Modle: 1325W-4
Machine size: 3200x2200x2100mm
Packing size: 3300x2280x2500mm
Working area: 1300mm×2500mm
Total power: 25W
N.W.: 1600Kg
Transmission | XY:Rack;Z:Screw |
Screw No. | TBI 2510 |
Guild rail | HIWIN 25 |
Driving mode | Servo |
Driver | Leadshine |
Motor | Leadshine |
Motor power | 1000W |
Working voltage | 380V |
Gantry | 10MM welded structure |
Operation system | LNC |
Spindle | HQD 6KW x4, Air cooling |
Lubrication | Auto |
Limit switch | Omron |
Dust collector | 3kw, two bags |
Table | Vacuum (6 area) |
Reducer | Shimpo from Japan |
Vacuum pump | 380V/ 5.5KW Air pump |
NO | Index | Index | Parameter |
1 | Traveling | X axis | 1300mm |
Y axis | 2500mm | ||
Z axis | 180mm | ||
2 | Table size | 1300x2500mm | |
3 | Accuracy | Working accuracy | 0.02mm |
Reposition accuracy | 0.02mm | ||
4 | Transmission | X axis | Rack |
Y axis | Rack & Double moters | ||
Z axis | Screw | ||
5 | Speed | Max Rapid | 25000mm/min |
Max working speed | 15000mm/min | ||
6 | Spindle | Spindle power | 6KWx4Pcs |
(Water-cooling) | Spindle speed | 0-18000r/min | |
7 | Drive mode | Servo | |
8 | Working voltage | AC380/50HZ | |
9 | Command language | G Code | |
10 | Operation system | LNC |
If you have specific requirement for it, customized is available.

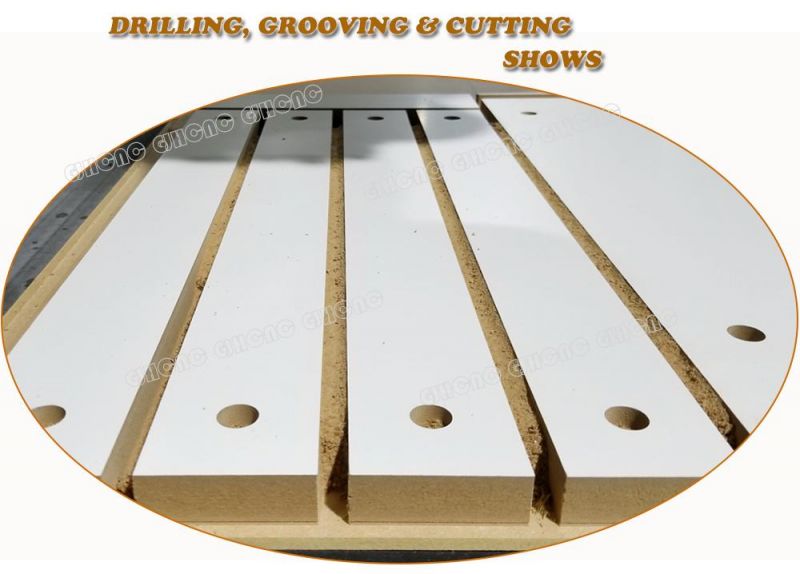

Our perfect Prodessing Prducts:

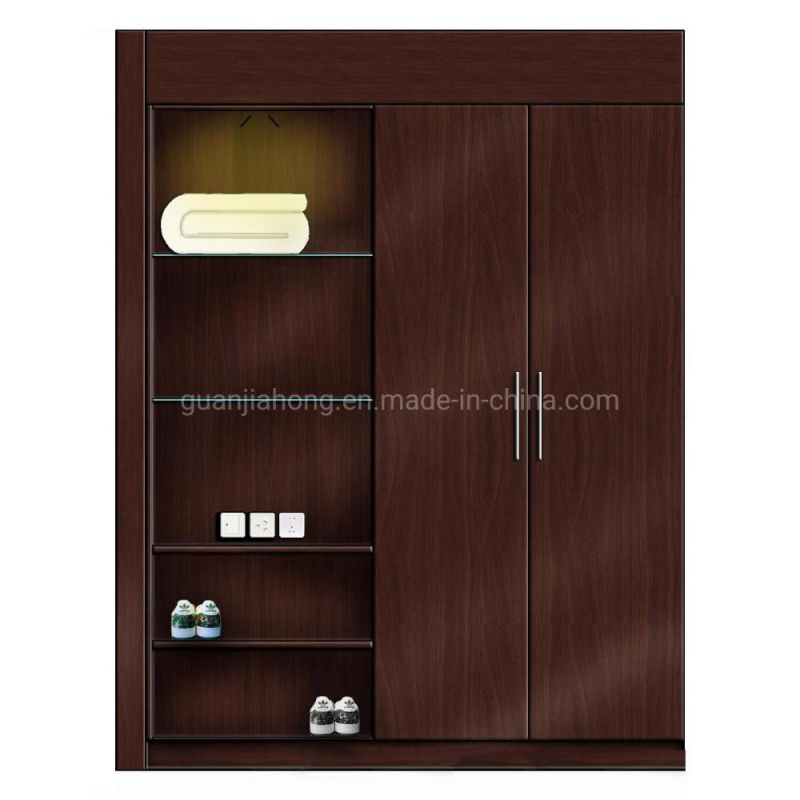

Processing Prducts - Furniture:
Sincerely waiting for your any inquiry, and trust that we can provide you professional suggestions.
Guarantee & After-sale service1.One year warranty under normal use and we supply lifelong maintenance.2.24 hours technical support by Phone, Email, Skype, Msn, or romote.3.Free training to make sure you master the operation of the cnc router.OEM Service Available1.Usually, we will manufacturer the machine as our regular design.2.X Y Z Working Area could be custmer-oriented designing.3.Special configuration could be customer-oriented designing.
