• Model NO.：RMZ-5A,5B
• Diamond Boring Machine Spindle Configuration：Na
• Diamond Boring Machine Spindle Number：Na
• Certification：CE, ISO
• Delivery Time：15 Days
• Transport Package：Wooden Case
• Specification：RMZ73216,73226
• Trademark：SAMACH
• Origin：China
• HS Code：84659500
• Production Capacity：100sets,Month

Basic Info.

Model NO. RMZ-5A/5B Diamond Boring Machine Spindle Configuration Na Diamond Boring Machine Spindle Number Na Certification CE, ISO Delivery Time 15 Days Transport Package Wooden Case Specification RMZ73216/73226 Trademark SAMACH Origin China HS Code 84659500 Production Capacity 100sets/Month

Product Description

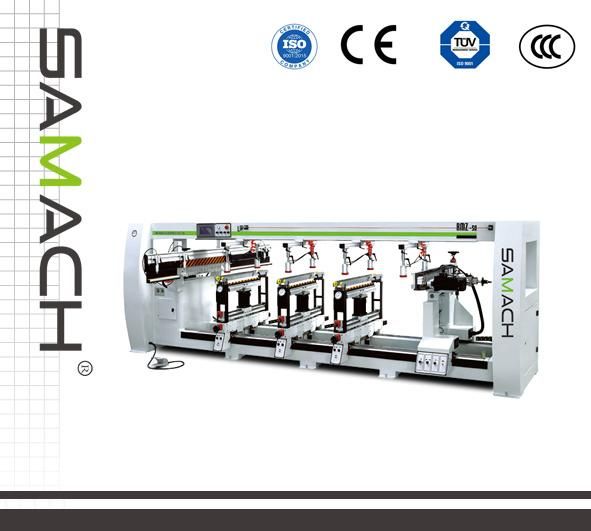

Woodworking Tool Six Lines Boring Machine RMZ-5A RMZ-5B



RMZ-5A: Six rows drilling machine  Optional:Eletronic digital display.

RMZ-5B:Six rows drilling machine    Optional:Eletronic digital display.

Parameter

NO.	5A	5B
Max center distance between holes	L*W=2450mm*640mm	L*W=2450mm*672mm
Min center distance between holes	L*W=220mm*32mm	L*W=220mm*32mm
Workpiece thickness	8-80mm	8-80mm
Total quantity of spindles	21*5=105	22*2+11*6=110
Total quantity of drill lines	3+2=5	3+2=6
Max drilling diameter	35mm (single bit)13mm(multi bits)	35mm (single bit)13mm(multi bits)
Max drilling depth	50mm	50mm
Dia of drill bit shaft	10mm	10mm
Installtion tool length	57/70mm	57/70mm
Spindle speed	2840rpm	2840rpm
Total power	7.5kw	12kw
Net weight	1200kg	1200kg
Overall dimensions	4000*2500*1650mm	4000*2500*1650mm

Samach'S Service and dominants:

1: Professional team of techniques study and research, guarantee the Machine latest and improving efficiency.

2.Knowing China and world markets well, offer professional soluttions.

3.Fast market reaction,  guarantee our partners always in front edge.

4.Supeiror Guarantees,quality of our machine and sell-after service.

5.OEM/ODM are available.

6.Principle: One cooperation, forever partners.

Contact us and Enjoy our Happy Coopperation Together.  Thank you for your time ^_^ !
