• Model NO.：1530
• Power Source：Electric
• Processing Accessory：Centre CNC Lathe
• Certification：CE, ISO, FDA
• Transport Package：Plywood Box
• Specification：1530
• Trademark：sea eagle cnc
• Origin：China
• HS Code：84659900
• Production Capacity：10000

Basic Info.

Model NO. 1530 Power Source Electric Processing Accessory Centre CNC Lathe Certification CE, ISO, FDA Transport Package Plywood Box Specification 1530 Trademark sea eagle cnc Origin China HS Code 84659900 Production Capacity 10000

Product Description

Industrial Applications:

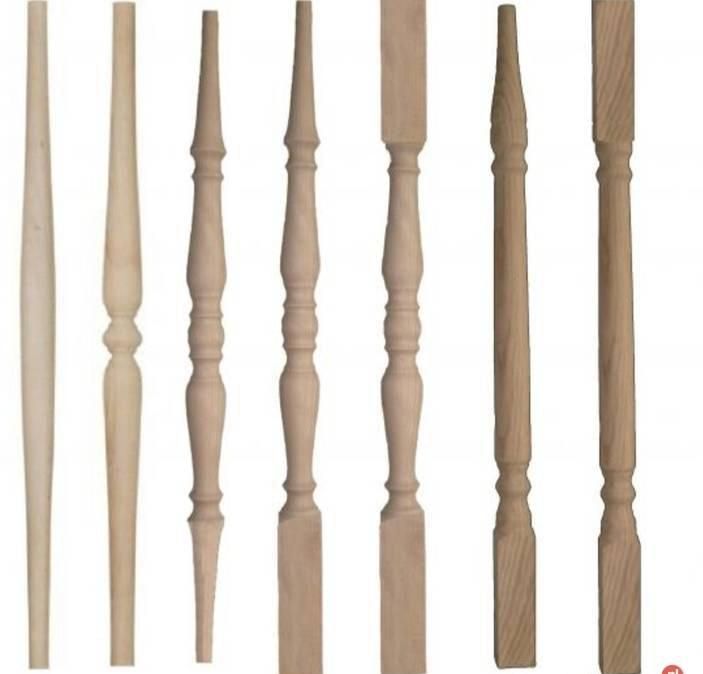

1,Staircases,stairway balusters,stairway newel posts;dining table legs;end table legs;sofa table legs; bar stool legs; chair legs;chair arm posts;chair stretchers;sofa and bun feet;bed rails;lamp posts;baseball bats and so on.

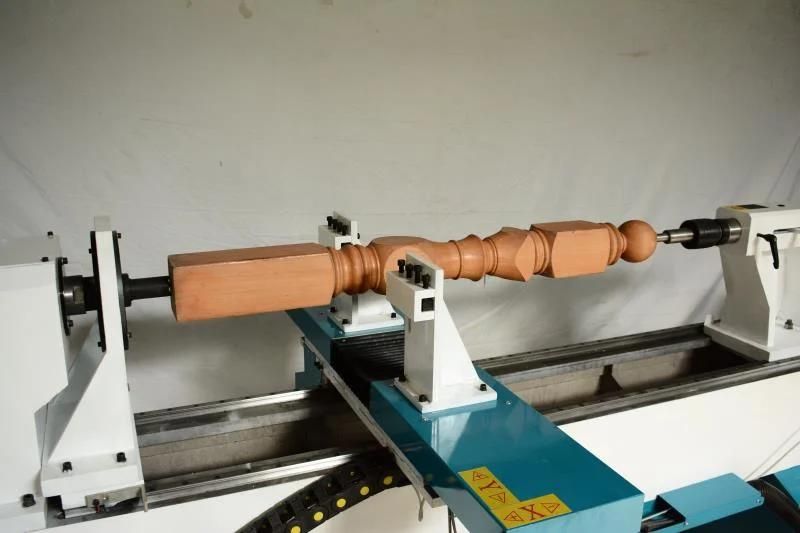

2,CNC wood lathe mainly for Various cylindrical workpiece, bowl sharp, tubular sharp and vehicle wood crafts, such as various staircase column, Roman column, general column,washstand,wooden vase, wooden table, baseball bat, car wooden furniture, children' s bed column, etc.

 Performance Features:

1. Heavy Cast iron lathe bed: avoid shaking when the Axis rotates fast or the big sizes workpiece process, and the  main Axis speed can be adjusted through the frequency converter.

2. Taiwan TBI helical guide Germany ball screw,high precision and durable.

3). DSP handle controller with USD interface, it is easier for allign  cutters than computer.

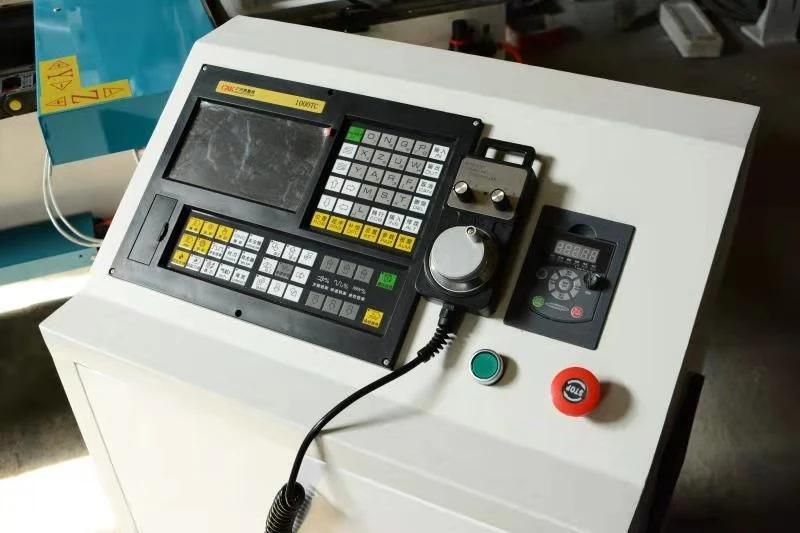

4).  Axis speed data is shown on the cabinet panel.

5). Compatible with several CAD/CAM design software, e.g. type3, artcam, etc.

We make our files  in AutoCAD and covert to a DXF file. The machine can read G code but we
have found that the DXF file is the easiest. We would be able to help you learn the basic functions

Main Parameters:


Contents	Parameter
Model	1530-Single axis double blades

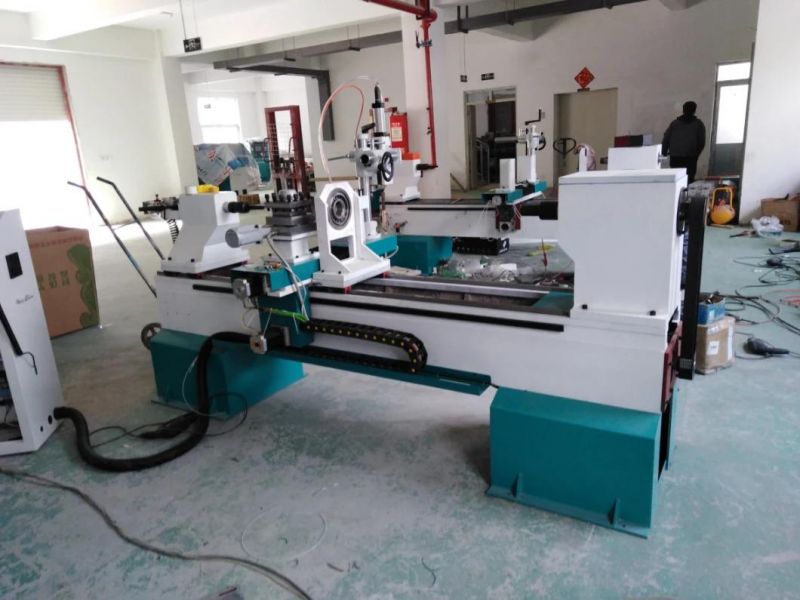

Type	Horizontal Wood CNC Lathe
Control System	DSP remote System
Drive System	Stepper Motor
Working Length	1500mm
Quantity of spindle	1Spindle
Spindle Speed	24000 rpm
Max. turning diameter	300mm
Feed Mode	Mechanical
Accuracy	0.10 MM
Spindle power	4 KW
Overall Dimension	3100X1100X1700 mm
Net Weight	1500 KG
Power Mode	Electric Power
Max feed rate	2000mm/min
Processing Length	20-1500 MM
Max.turning length	1500 MM
Total Power	7 Kw
Air pressure	0.6-0.8 Mpa
Working supply	380v, 3 phase
Frame	Cast Steel structure
