Rosewood Furniture Engraving CNC Router (DW1325)
Jinan Dwin Technology Co., Ltd.- Type:Engraving Router
- Spindle Layout:Vertical
- Spindle Number:Single-Spindle
- Feed Mode:Manual
- Controlling Mode:CNC
- Certification:CE
Base Info
- Model NO.:DW1325
- Customized:Customized
- Condition:New
- Color:Customized
- Working Size:Customize Accepted
- OEM:Accepted
- Atc Tools Number:8 Pieces
- Atc Mode:Linear
- Driving Motor:Japan Yaskawa Servo Motor
- Inverter:Taiwan Delta Inverter
- X,Y,Z Rail:Taiwan Hiwin or PMI 25mm Linear Guide Way
- Transport Package:Plywood Box, Free From Fumigation
- Specification:CE, FDA, SGS
- Trademark:Dwin Made In China
- Origin:Jinan, Shandong, China
- HS Code:846599
- Production Capacity:50sets Per Months
Description
working area
1500X3000X500mm
Max moving speed
40000mm/min
Max Engraving Speed
25000mm/min
Reposition Accuracy
<0.05/300mm
Spindle
9KW Italy HSD ATC spindle
Inverter
11kw Taiwan Delta inverter
Spindle rotation:
6000-24000rpm
Tool magazine and number of tools
linear ATC, 8 tools
Tool diameter
2mm-20mm
Transmission
X, Y axis: High precision helical rack; Z axis: imported Taiwan TBI Ball Screw
X, Y, Z Rail
Taiwan HIWIN or PMI 25mm linear guide way
Beam
cast Steel
Frame
Tube structure
Table surface
vacuum & T-slot combined
Control System
Germany Siemens 808D Control System
Typeset software
Type3, Art CAM
Motor/ Driver
1kw Siemens servo(Japan YASKAWA servo for option)
Voltage:
AC380V/50HZ
ATC CNC Router machine Features:
1, Welded structure by thick profiled steel
2, Assembled with precise parts.
3, Automatic lifting device for vacuum suckers allows the easy operation for the job on the side of working pieces. Vacuum working table is with double cavities and bakelite material with high absorption power.
4, Imported Germany Siemens high performance control system, separated keyboard control, color LCD display.
5, With Italian combination drills, the machine can finish various processes one time including drilling, edge cutting, engraving, slotting, and lock hole making and expanding for the wooden door panels with complicated processing requirement.
Applications:
1. WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2.Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal wordmaking, blaster molding, and other advertising materials derivatives making.
3.Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
4.Relief sculpture and 3D engraving
5.Cylindrical object

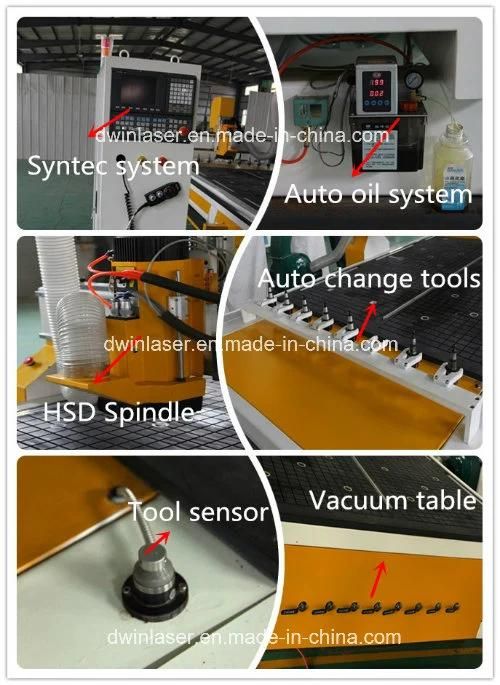

Machine parts
Samples:
After-sale service:
1, Within 7 days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts hav
e any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, email
5, Our technician can give you remote guide online(Skype or MSN) if you have any question
6, We can record videos of operating the cnc router
7, Free training course in our factory
8.Machine will be adjusted before it is delivered , operation disk/CD was included.
