Plywood Log Core Veneer 4FT CNC Spindleless Peeling Machine

Linyi Sin San Lin Smart Machinery Co., Ltd.
  • Certification：CE, ISO, FDA
  • Type：Floor Lathe
  • Voltage：380V
  • Power Source：Electric
  • Control Mode：CNC
  • Body：Fine Cast Steel Body

Base Info

  • Model NO.：BXQ1814,14A
  • Auo Hydraulic Knife Clamping System：N,Normal Mechanical Change Knife
  • Transport Package：Container
  • Specification：4600× 1850× 1700
  • Trademark：METRO
  • Origin：China
  • Production Capacity：10 Sets, Month

Description

Basic Info.

Model NO. BXQ1814/14A Auo Hydraulic Knife Clamping System N/Normal Mechanical Change Knife Transport Package Container Specification 4600× 1850× 1700 Trademark METRO Origin China Production Capacity 10 Sets/ Month

Product Description

Product Description4FT Wood Veneer CNC Spindleless Rotary Peeling Machine1. Product Features:
1.The peeling Speed can be changed automatically according the Program setting.
2.Automatic knife cutter peeling angle adjustment,the veneer surface finish is very smooth, increase the quality of the veneer.
3.CNC knife peeling angle control,the veneer thickness can be changed by touch screen.
4.The after angle of knife cutter are designed to change with the log diameter.
5.By using ball screw.
6.The worktable movement use Precision linear guide rail.

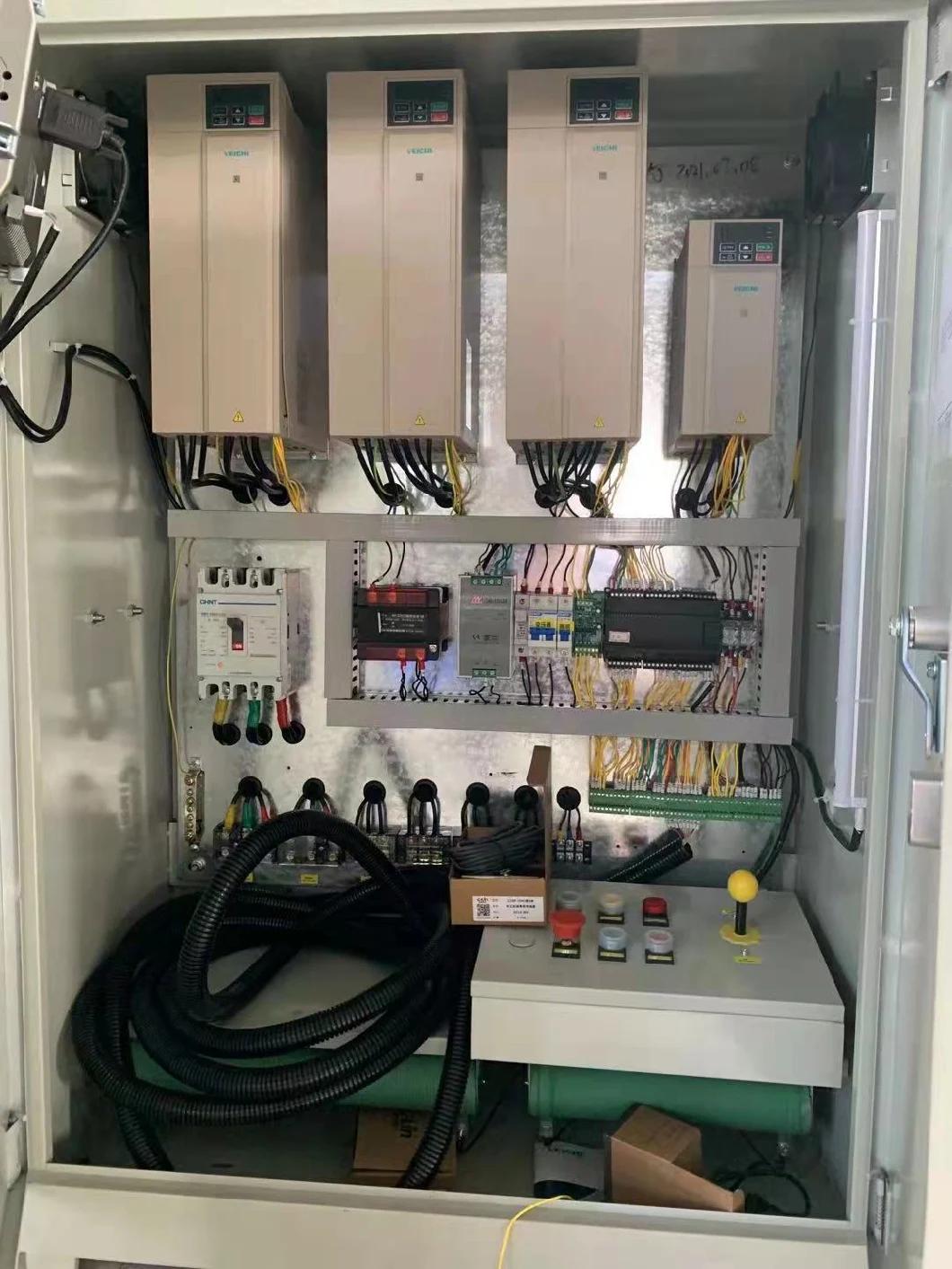

7.Electric parts use Schneider.
8. The machine has Automatic Hydraulic Knife Change system, Japan Real Mitsubishi Servo System,Siemens Motor. And the machine is Casted Iron Body.

2. Parameters:
Max. working length1400mm
Max.Working diameter500mm
Max. working speed30-90m/min
Veneer thickness0.15~7mm
Double rollers motor power7.5kw x 2sets
Single roller motor power7.5kw x 2sets
Screw Feeding motor power11kw
Rotary clipper motor power2.2kw
Rubber belt conveyor motor2.2kw
Machine size4700x1900x1500mm
Machine weight7000kgs
Total power45.4kw

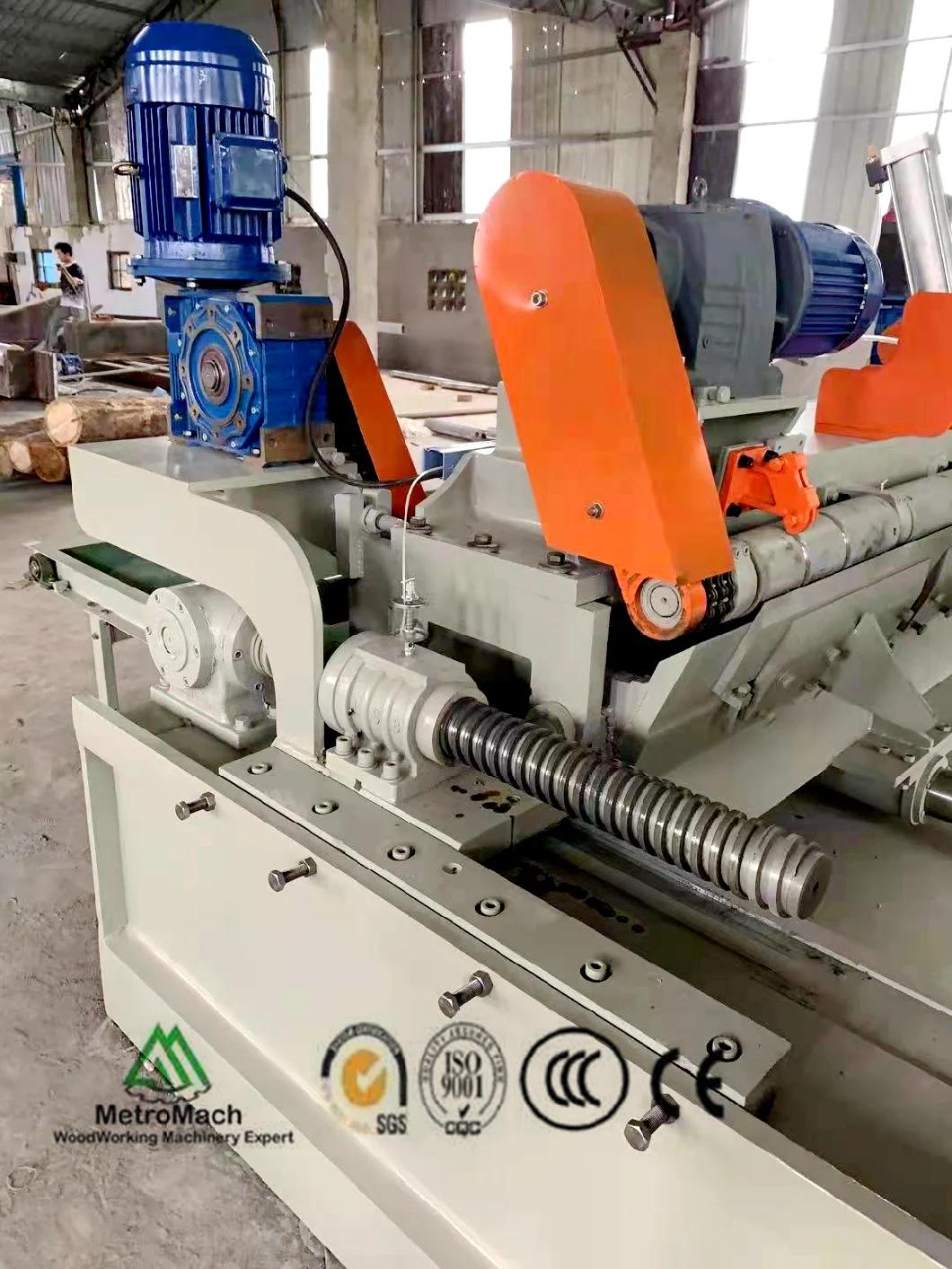

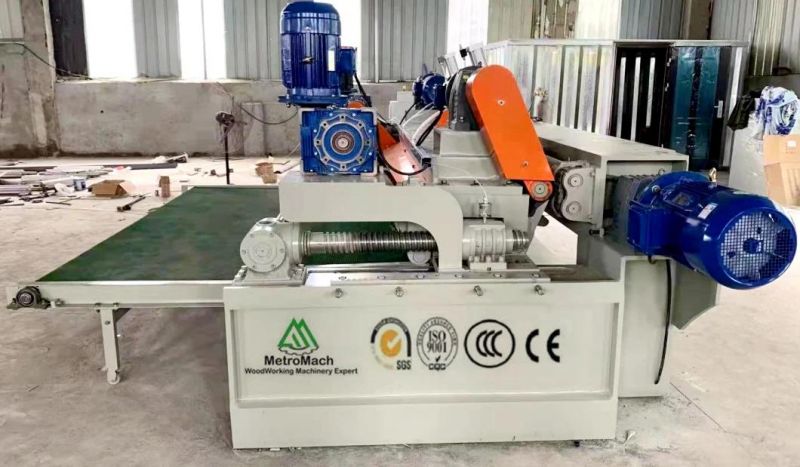

3. More Pictures:
Plywood Log Core Veneer 4FT CNC Spindleless Peeling MachinePlywood Log Core Veneer 4FT CNC Spindleless Peeling MachinePlywood Log Core Veneer 4FT CNC Spindleless Peeling Machine
Plywood Log Core Veneer 4FT CNC Spindleless Peeling Machine
Plywood Log Core Veneer 4FT CNC Spindleless Peeling MachinePlywood Log Core Veneer 4FT CNC Spindleless Peeling Machine
Plywood Log Core Veneer 4FT CNC Spindleless Peeling Machine
Plywood Log Core Veneer 4FT CNC Spindleless Peeling Machine


4. Service:

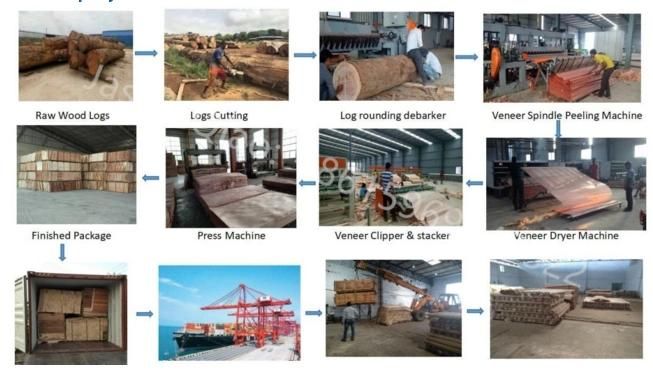

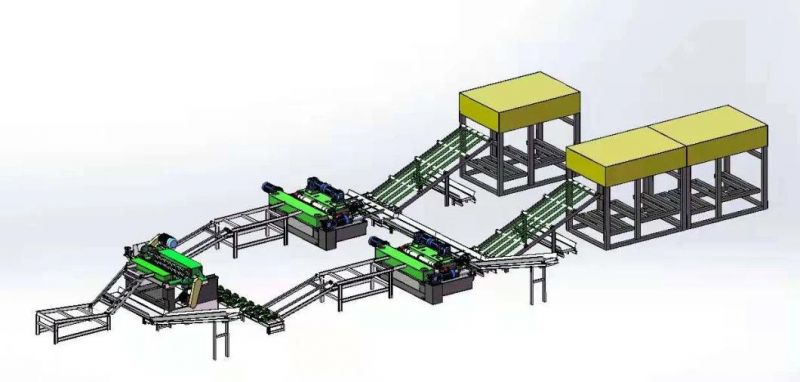

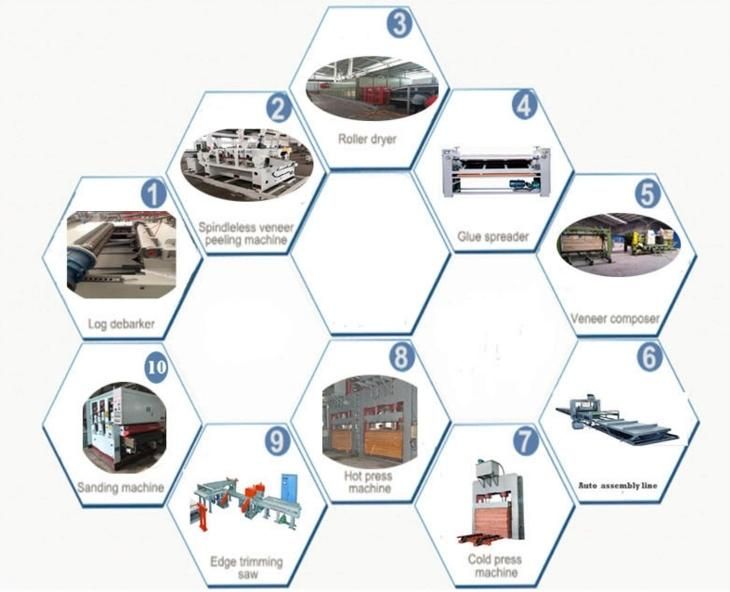

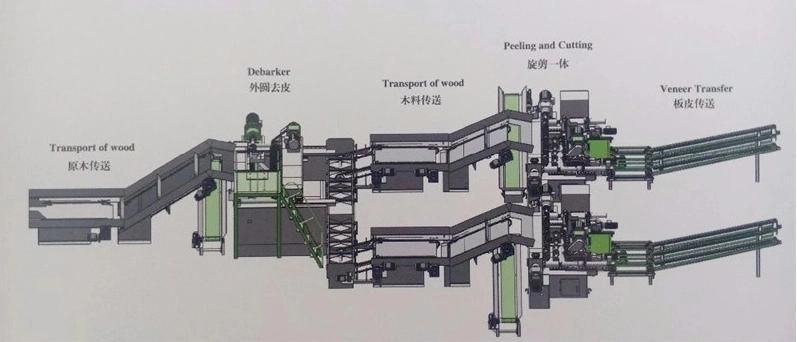

1. We supply full core/face veneer production line according to customer's demand, fully/semi-automatic avaliable.
2. One year guarantee of machines, and lifetime after-sales service and information consult.
3. Our technical people have much experience in installation, debugging, run testing all kinds of machine in different countries.
4. Our company attends most of the international exhibitions every year, and will visit the local customers to collect customer's feedback and suggestions on our machines, then we can update our machines continuously.
