• Model NO.：Z 700
• Capacity：15-20t,H
• Keyword1：Wood Debarker
• Keyword2：Wood Peeling Machine
• Keyword3：Wood Peeler Machine
• Keyword4：Wood Bark Peeling Machine
• Transport Package：Tandard Export Package Wooden Case
• Specification：CE, SGS
• Trademark：AG
• Origin：China
• Production Capacity：10sets Per Month

Basic Info.

Model NO. Z 700 Capacity 15-20t/H Keyword1 Wood Debarker Keyword2 Wood Peeling Machine Keyword3 Wood Peeler Machine Keyword4 Wood Bark Peeling Machine Transport Package Tandard Export Package Wooden Case Specification CE, SGS Trademark AG Origin China Production Capacity 10sets Per Month

Product Description

Hot Sale Factory Direct Price Wood Bark Peeling Machine made in China
Specifications
1. Low power computations, low invest, high efficiency
2. compact structure
3 Rotary teeth wood log debarker machine ,
4 Suitable for most kinds of wood especially wood with lots of fiber

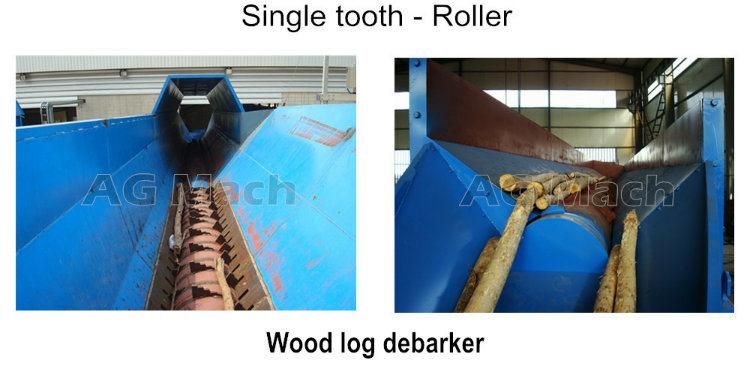

Wood Peeler/Double Roller Debarker/Barking Machine
Double roller Wood peeling machine, debarker,wood debarker,log debarker,wood log debarking machine
We offer different types of the wood debarkers

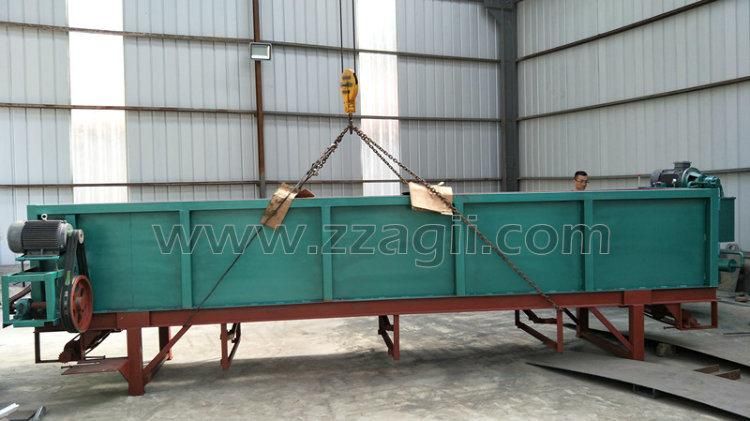

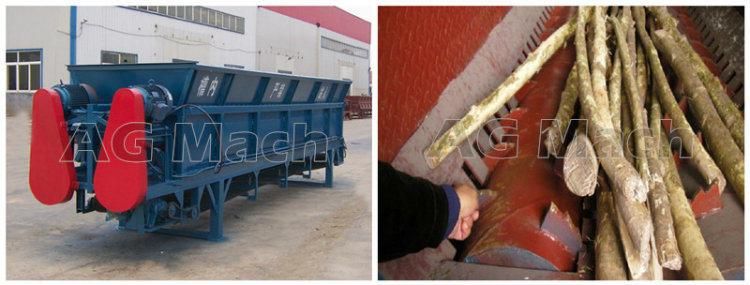

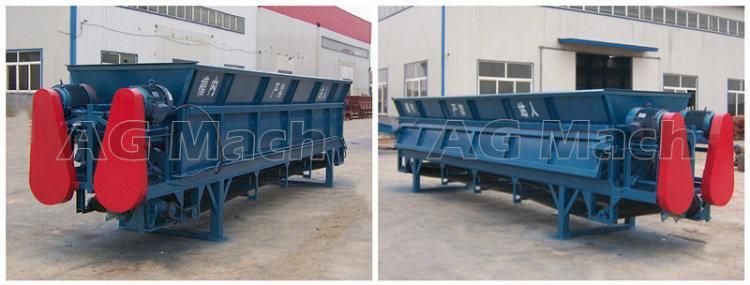

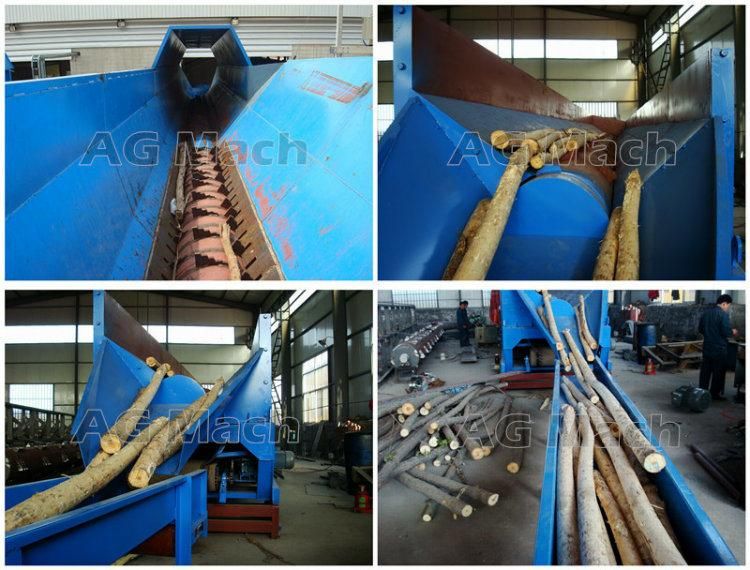

Product Details

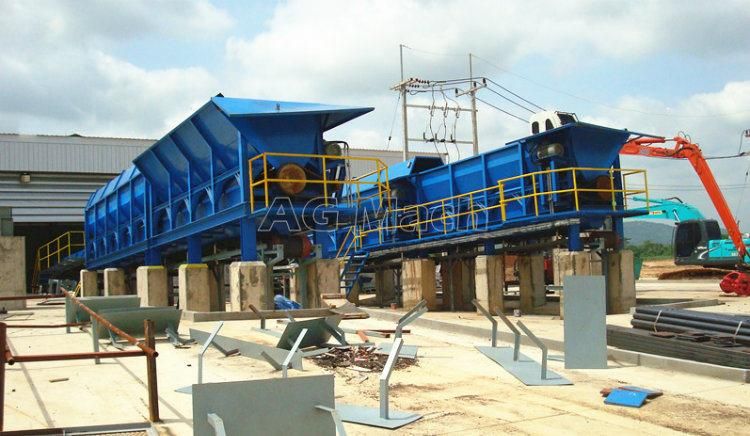

Line of production

Work Principle
The machine is using special force to let the wood doing circle movement in the hopper tank plate, and also around its own axis to do turning motion segment and irregular beating. The force is caused by the rotor which is with ladder type peel teeth. So that wood and teeth, wood and wood, wood and hopper tank,pectin friction, strike, extrude and peel off ceaselessly, Lead to bark and tree trunks are broken down and stripped fast, So as to achieve the effect of stripping efficiency.


Features:
1 Adopt opened groove hopper, which makes one end for feeding, and the other end for discharging, which greatly improves work efficiency.
2 As the teeth impact the timber section, the logs section is rotating around itself and cycle moving with high efficiency, so that it also has a better net rate of striping.
3  It is available for many kinds of tree species, diameter, length and shape.
4 The net rate of peeling logs bending is much higher.
5 It with lower consumption, low failure rate and little maintenance workload


Model	Roller Q'ty	Power	Output	Max Log Diameter	Length of Roller	Peeling Rate
Z-600DQ	Double	7.5+7.5+2.2 kw	3-4 t/h	200mm	6m	>95%
Z-600D	Double	11+11+2.2 kw	6-8 t/h	300mm	6m	>95%
Z-700D	Double	18.5+18.5+3 kw	10-15 t/h	350mm	7m	>95%
Z 800S	Single	37+3 kw	12-15 t/h	400mm	8m	>95%
Z 900S	Single	37+3 kw	18-20 t/h	400mm	9m	>95%

Advantage:
In contrast of the rotary log debarker, the double roller debarking machine can work continuously in the whole process. Because the wood can be rotated with irregular movement in the log peeler, so the recess of the curve wood can touch the sheller teeth, the bark can be shelled much more easily then other log peelers. The log peeling machine is easy to maintain,featured with small consumption,low failure rate,low noise and vibration
