• Model NO.：JBT101
• Panel Thinkness：0.3-3.0mm
• Min.length panel：40mm
• Min.width panel：40mm
• Manufacturing Principles：Glue Tank Overhead
• Customized：Customized
• Min Edge Diameter：40mm
• Motor Power：20W
• Banding Width：10-45mm
• Feeding Speed：0.5-8m,Min
• Operating Temperature：120-170ºC
• Total Power：620W
• Glue Pot Volume：300ml
• Weight：10kgs
• Machine Size：380*330*380mm
• Independent Packing Size：380*300*420mm
• Transport Package：Wooden Case
• Specification：3CBM
• Trademark：QDZD
• Origin：Qingdao
• HS Code：84659400
• Production Capacity：500sets

Basic Info.

Model NO. JBT101 Panel Thinkness 0.3-3.0mm Min.length panel 40mm Min.width panel 40mm Manufacturing Principles Glue Tank Overhead Customized Customized Min Edge Diameter 40mm Motor Power 20W Banding Width 10-45mm Feeding Speed 0.5-8m/Min Operating Temperature 120-170ºC Total Power 620W Glue Pot Volume 300ml Weight 10kgs Machine Size 380*330*380mm Independent Packing Size 380*300*420mm Transport Package Wooden Case Specification 3CBM Trademark QDZD Origin Qingdao HS Code 84659400 Production Capacity 500sets

Product Description

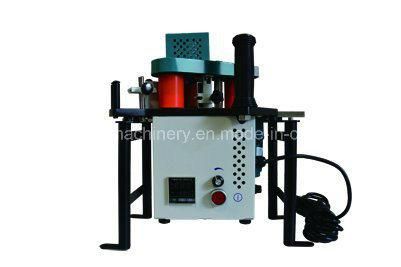

JBT101 Portable Edge Banding MachineAutomatic Edge Banding Machine

Type	JB101
Min edge diameter	40 mm
Feeding speed	0.5-8 m/min
Banding thickness	0.3-3.0 mm
Banding width	10-45 mm
Operating temperature	120-180ºC
Motor power	20w
Total power	620 w
Glue pot volume	300 ml
Weight	10 kgs
Machine size	380*330*380 mm
Independent packing size	380*300*420 mm
Whole package size	465*430*515 mm
0-45°Tilting	no
Double Surface Gluing	no


Solutions:

The perfect solution for edge banding of all sizes ! The edge bander can be used for large sized wooden boards and half-finished wooden products. The board can be fixed in place while the hand-held edge bander proceeds.It can also be used for small sized wooden boards while the machine is fixed onto a conveyor belt or table with stand. The process of edge banding is the same for normal sized loads.

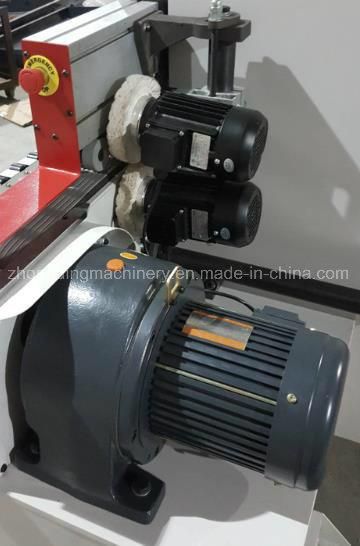

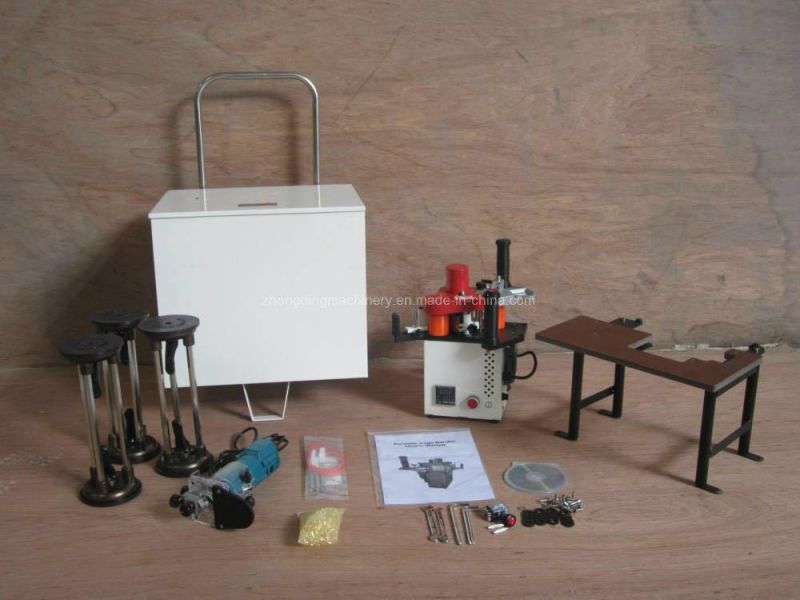

Product details:





Other information:
1) Term of payment: T/T, 30% deposit and the balance is paid before delivery
2) Delivery: 25days
3) Machine voltage: optional
4) Warranty: 1 year
5) MOQ: 1 Set
6) OEM service is ok
7) HS code: 84659400
8) Certificate: CE&ISO 9000 Certificate

Qingdao Zhongding Machinery Co., Ltd is a leading company of specializing in manufacturing and exporting woodworking machine, and we are able to offer professional woodworking machines to customers. Our company has professional technology, full range of testing lines and pipelining, and four professional production lines of woodworking machine. It is located by the beachside of the Yellow sea, which is a place of strong competitive power, beautiful natural environment, and easy traffic of air, land and sea transportation.
Our products mainly include Precise Panel Saw, Edge Banding Machine, Multiple Drilling Machine, Press Machine etc., which have been exported to lots of countries and regions, such as Europe, Russia, Southeast Asia, Middle East, North America, and Australia.
We have established complete sales system. Our company takes the principle of quality first and customer foremost and we are strict with quality control. Meanwhile, we develop and manufacture new products positively, and provide perfect pre-sale and after-sale services. At the same time, our company has got ISO9001 international system certificate and CE security certificate.
  Qingdao Zhongding Machinery is looking forward to establish long-term strategic cooperation relationship with you and offer you high quality products and perfect service system.
