• Model NO.：1325, 1530
• Type：Engraving Router
• Spindle Number：2-4
• Customized：Customized
• Color：Customized
• Feed Mode：Mechanical

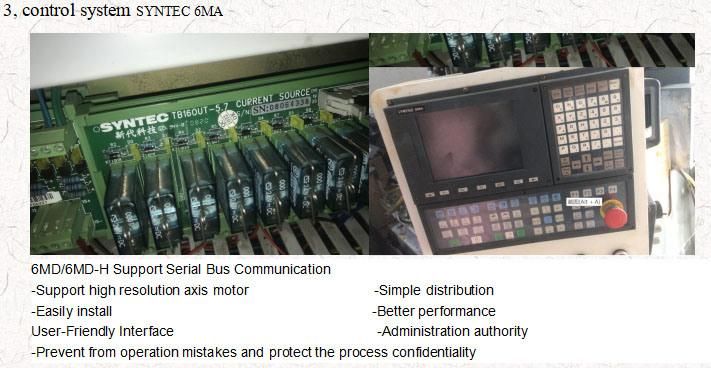

• Control System：Syntec 6MB Control System
• Inverter：5.5kw E Type Taiwan Delta Inverter
• Linear Rail：Taiwan PMI 25# Linear Guide
• Rotary Device：Diameters: 200mm
• Dimension(L*W*H)：3050*1940*2200mm
• Transport Package：Plywood Box
• Specification：3050*1940*2200mm
• Trademark：sea eagle
• Origin：China
• HS Code：84659900
• Production Capacity：2000sets,Year

Working area

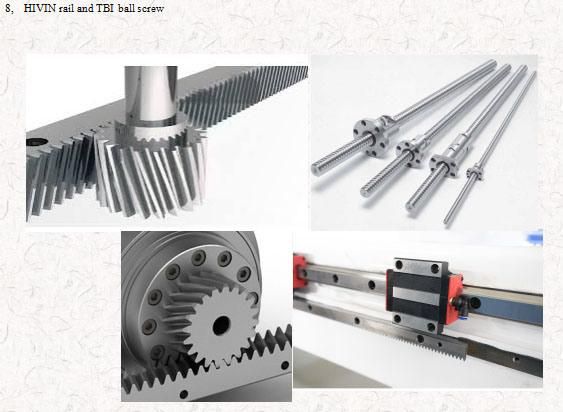

Working areaX1,300mmY2,500mmZ210 mmTransmission systemXHiwin square rail,-No.25, Helical - Rack & PinionYHiwin square rail,-No.25, Helical - Rack & PinionZball screw ,Hiwin square rail.SpindlePower6 kw HQD Spindle , 4 sets;  or 4.5kw ,2 sets, 6kw 2 setsInverterYaskawa or FullingRotating Speed24000rpmCooling Typewater- cooling or air-coolingDrive systemsX,Y,ZYaskawa or leadshinePrecision<0.01mmPositioning accuracy<0.01mmidling speed0~24000mm/minMax speed90m/minWorking speed40m/min

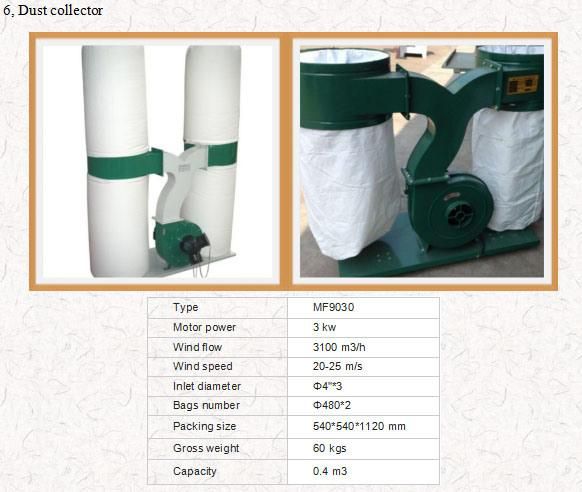

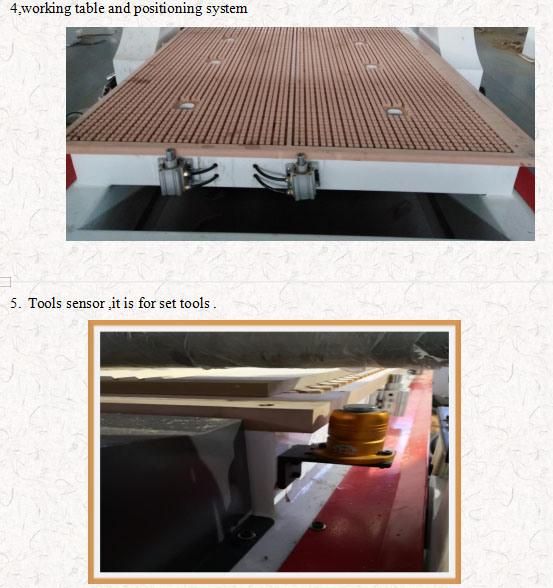

Machine bodySteel structure Table,Seamless welded steel structure / Lathe bed welded with thick square tube and slot steel,tablevacuum adsorption table.Control SystemLNC control system, or SYNTEC system, mach3Working VoltageAC380V±30V, 50HZCommand CodeG Code, *.mmg, *.plt, *.engTool sensor systemAvailablePackingPlywood  caseNet Weight3600KGPacking Size4000*1970*1930(mm)Gross Weight3000KGdust collector4.0 kw  380VReducer systemTiming Pulley

Give me your inquiry for machine catalog and quotation details
We can make machine following your demand!!!








samples

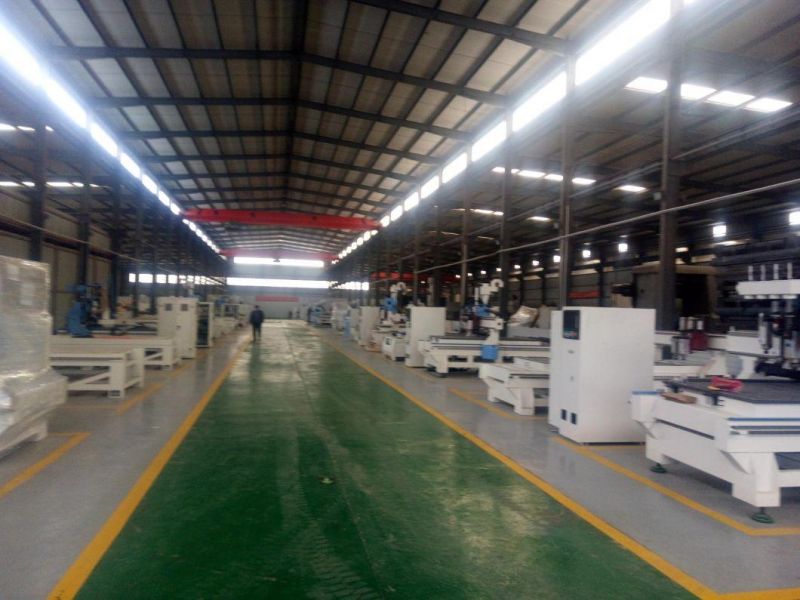

our workshop


Give me your inquiry for machine catalog and quotation details
We can make machine following your demand!!!
