• Model NO.：BY214X8
• Work Mode：Period
• Controlling Mode：CNC
• Automatic Grade：Automatic
• Certification：CE, ISO, FDA
• Customized：Customized
• Voltage：380V,410V,440V
• Layers：3,6,8,10,12,15,Customized
• Cylinder Number：2,4,6,8,Customized
• Pressure：100,400,500,600,800,1000,Customized
• Spear Parts：Cylinder,Hot Plate,Motor
• Feature：High Efficiency
• Type：Double Column Hydraulic Press
• Transport Package：Container
• Specification：3590x1370x4570mm
• Trademark：METRO
• Origin：China
• HS Code：8465990000
• Production Capacity：700sets,Year

Model No.BY214×8/8-15IIdPressure800TBoard infeed directionHorizontalDaylights15 layers (16 platen)Layer Spacing 100MMHot platen size2700*1370*52mmCylinder number4Cylinder Diaφ320MMCylinder stroke1050MMProof Pressure≤25MpaSynchronizing System rack and gear body synchronizationNo-load closing timearound 29 sAllowable pressure≤5MpaHigh pressure pump flowaround 35L/MinLow pressure pump flowaround 355L/MinUnit slab pressure24.2kgf/cm²Slab size1280x2560MMUpper/lower cross beam1000, 900MMThickness of steel plate40,30,25,12MMColumn thickness400MMMoved cross beam30,20MMTotal Power11Kw*2+7.5KWWeight48TControl methodautomatic pumping stationDimensionaround 3590x1370x4570mmFrame schemeportal frame

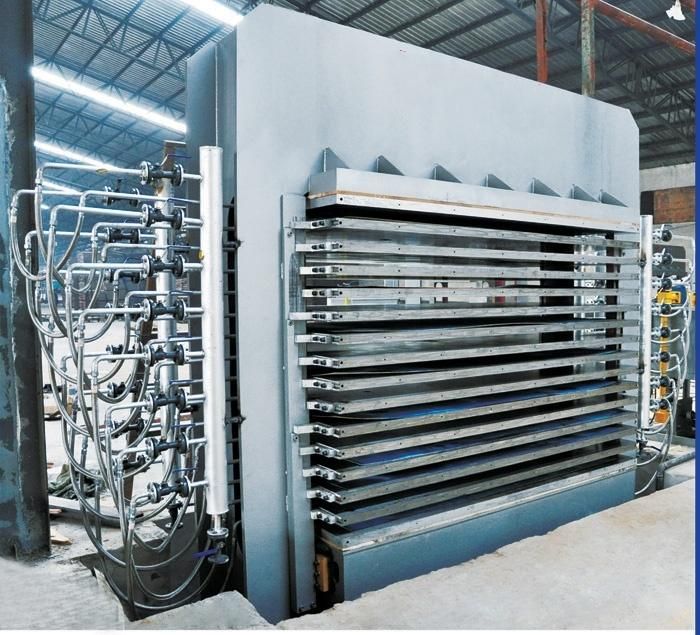

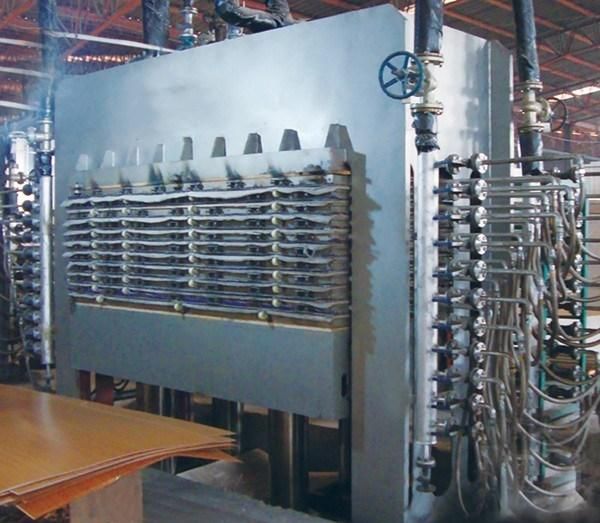

3. MOre Pictures:





4. Services:
1.We will send our engineer under your indications to  your  factory  for  installing,  debugging  and  maintaining,  you only need to afford the cost of the flights, and  the engineer's accommodation .
2.If you are experienced in installing jobs,  we will provide ongoing  technical support for you.
Guarantee time for the main parts of the machine will be 12 months, in this period, if the machines itself  have the problem, we will freely maintain it, but not including the problem caused by the wrong or rough operation.
3.The buyer sends people to seller's factory for study:
one month and one person. The buyer should pay for the round air fare, and the seller arrange for food and accommodation, and the service including: the machine's fixing, debugging, operating, maintaining.
4.After the warranty, we can also supply the engineer service and the technical service, but  you need to  pay  the salary for the engineer! and afford the cost of the replaced aparts yourself. More service, you can get by send us an e-mail or a fax.
After Sale service:
Pre-sale services:
1) Provide the free consultation of the equipment
2) Provide the standard device and the flow chart
3) According to the clients' special requirement, offering the reasonable plan and free design to help to select the equipment.
4) Welcome to visit our factory
Services during the sales:
1) Inspect the machine before leaving the factory.
2) Oversea install and debug the equipment
3) Train the first-line operator.
After sale services:
1) 24 hours online service
2) Provide the VIDEO with Install and debug the equipment
3) Provide technical exchanging
4) Door to door service is possible
