Woodworking Plywood Core Veneer Automatic Composer Jointer Machine

Linyi Sin San Lin Smart Machinery Co., Ltd.
  • Condition：New
  • Certification：ISO, CE, FDA
  • Power Type：Electrical
  • Voltage：380,415V
  • Speed：0-48m,Minute(Adjustable)
  • PLC：Japan

Base Info

  • Model NO.：PBJ-4X8
  • Motor：Siemens Servo Motor
  • Rotary Actuator：Festo (Germany)
  • Transport Package：Container
  • Specification：12000*2600*2500mm
  • Trademark：METRO
  • Origin：China
  • HS Code：846599000
  • Production Capacity：300set,Year

Description

PBJ-4X8
Whole machine
 Length10000mmWidth2600mmHeight2300mm


Drive motors

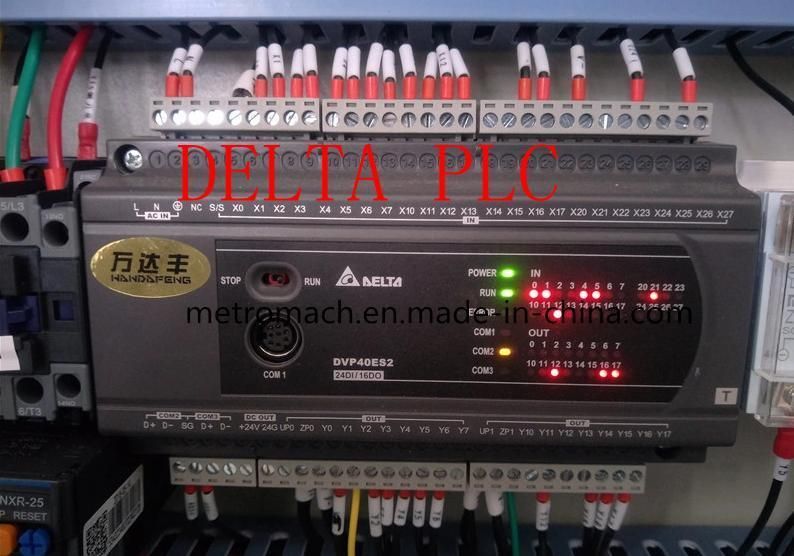

 Front drive motor3Kw x 1setBack drive motor3Kw x 1setFront cutting knife3Kw x 1setBack cutting knife3Kw x 1set1# Belt conveyor motor1.5kw x 1set2# belt conveyor motor1.5kw x 1setLifting motor of stacker3Kw x 1setGlue tankGlue thread4KwGlue point4KwTotal motor power26KwElectricsAC ContactorSchineiderPLCDELTAAC conditionerGREECutting knife length1400mmWorking thickness range1.2-3.5mmWorking capacity250-300sheets of 4x8FtMachine installation size14000mm Length x 4000mm widthMachine weight5800Kgs
3. Advantage:
1.One operator, no overlap and seamless, no break;
2. Save 70% of core finishing
3.Save 80% assembling workers
4.Save 50% puttying workers

4. Working principle:
core veneer (1.2-3.6mm thickness) after dying may have different length and thickness, and the shapes may get irregular. This machine can detect the width, thickness, cavities of the panels, and have them rimmed, glued, spliced, cut to length and stacked automatically. with this machine, customized board of different sizes an be spliced.

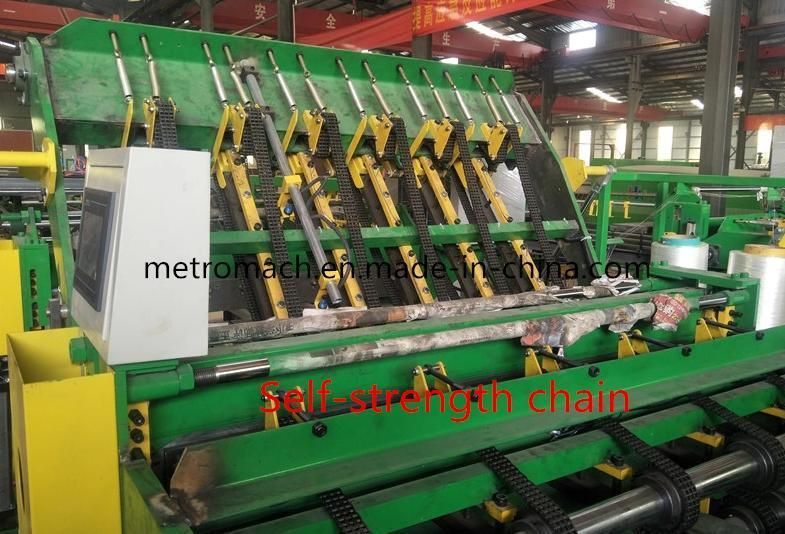

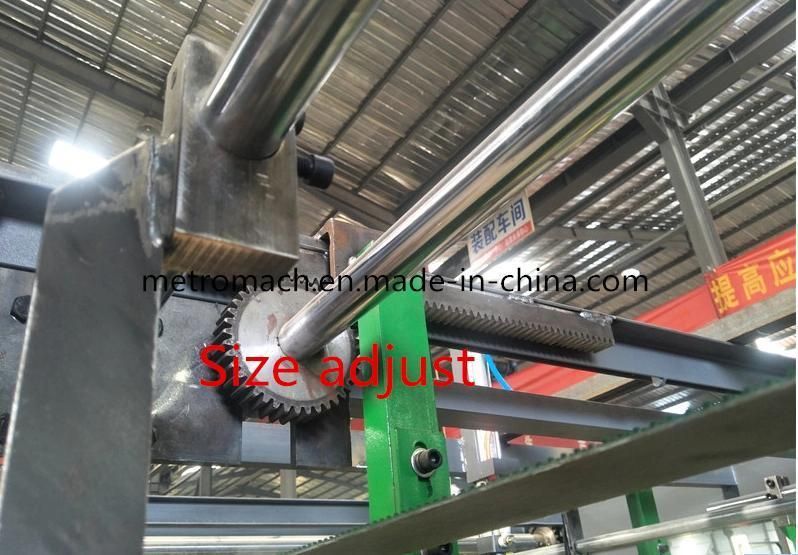

5. More Pictures
Woodworking Plywood Core Veneer Automatic Composer Jointer MachineWoodworking Plywood Core Veneer Automatic Composer Jointer Machine
Woodworking Plywood Core Veneer Automatic Composer Jointer MachineWoodworking Plywood Core Veneer Automatic Composer Jointer MachineWoodworking Plywood Core Veneer Automatic Composer Jointer Machine
Woodworking Plywood Core Veneer Automatic Composer Jointer Machine
