• Model NO.：R-RP1300
• Condition：New
• Color：Customized
• After-sales Service：24hours Online
• Name：Calibrating Wide Belt Sanding Machine Sander
• Max. Working Width：1300mm
• Min. Working Length：500 mm
• Working Thickness：2.5-80 mm
• Belt Size：1330*2200 mm
• Total Power：57kw
• Products：Plywood, MDF, Door
• Weight：3500kg
• Transport Package：Stretch Film or Wooden Case
• Specification：2100*2600*2150
• Trademark：SOSN
• Origin：China
• HS Code：84659300
• Production Capacity：200 Sets,Month

Basic Info.

Model NO. R-RP1300 Condition New Color Customized After-sales Service 24hours Online Name Calibrating Wide Belt Sanding Machine Sander Max. Working Width 1300mm Min. Working Length 500 mm Working Thickness 2.5-80 mm Belt Size 1330*2200 mm Total Power 57kw Products Plywood, MDF, Door Weight 3500kg Transport Package Stretch Film or Wooden Case Specification 2100*2600*2150 Trademark SOSN Origin China HS Code 84659300 Production Capacity 200 Sets/Month

Product Description

Plywood Heavy-duty Wide Belt sanding machine for woodworking

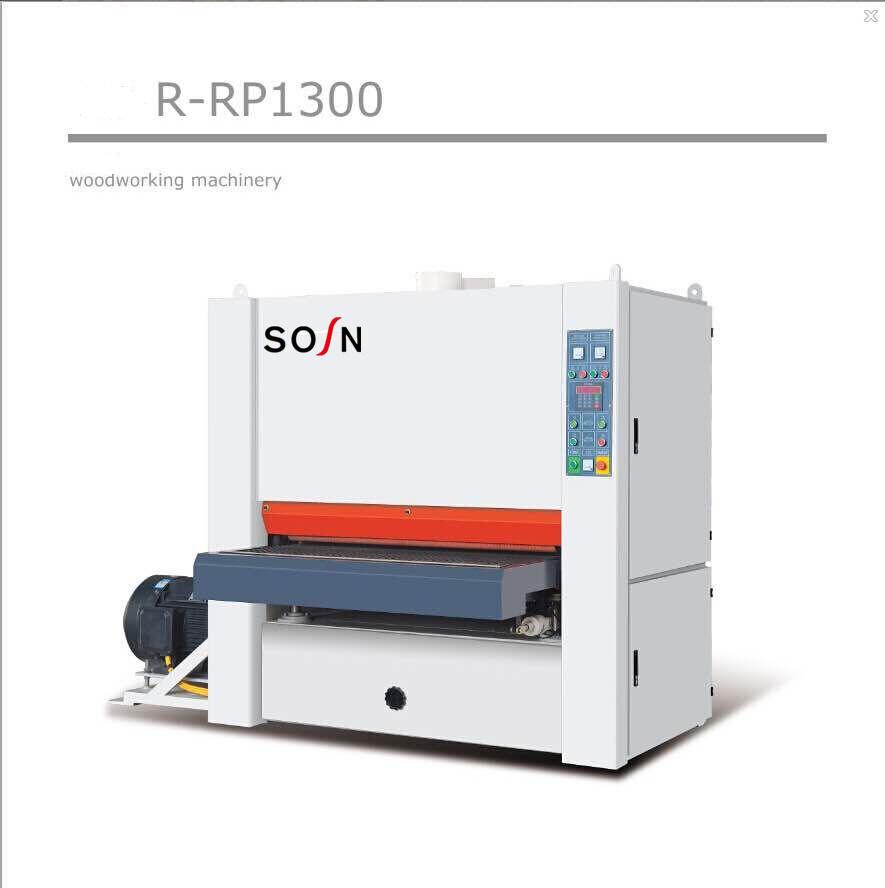

Calibrating Wide Belt Sanding Machine Sander

feature :

The front roller is adjustable steel rollers,the back one is rubber roller with sanding pad, this structure is suitable for thickness-fixed sanding and fine polishing of all kinds of boards.

main parameter:

Working width	1000mm	1300mm
Working thickness	2-110mm  (option 2-350mm)	2-110mm  (option 2-350mm)
Speed of feed belt	5-25m/min	5-25m/min
Total motor power	27.93kw(15/11/0.25/0.18/1.5)	57kw(30/22/0.37/0.63/4)
Size of sanding belt	1020*2000mm	1330*2200mm
Working air pressure	≥ 0.55MPa	≥ 0.55MPa
Overall dimension(L*W*H)	1780*1560*2005mm	2600*2000*2100mm
Weight	2000kg	3500kg

machine configuration:

1) Star delta starting on main motor

2) Digital thickness display

3) Feeding belt automatic entering

4) Protector for sanding elt break down and utension

5) Board thicknesss setting device

6) Emergeny button for safety , it can stop at once

7) Penumatic pad

8) Photoelectric and double contact cylicder control vibrating of abrasive belt along center

9) The second contact roller up and down automatically

10) Front press roller use on way bearing avoid injuring workers

11) Plc control (optional)

12) Vacuum table (optional)

13)  automatic air blower on first belt (optional)

14) Automatic air blower on second belt (optional)

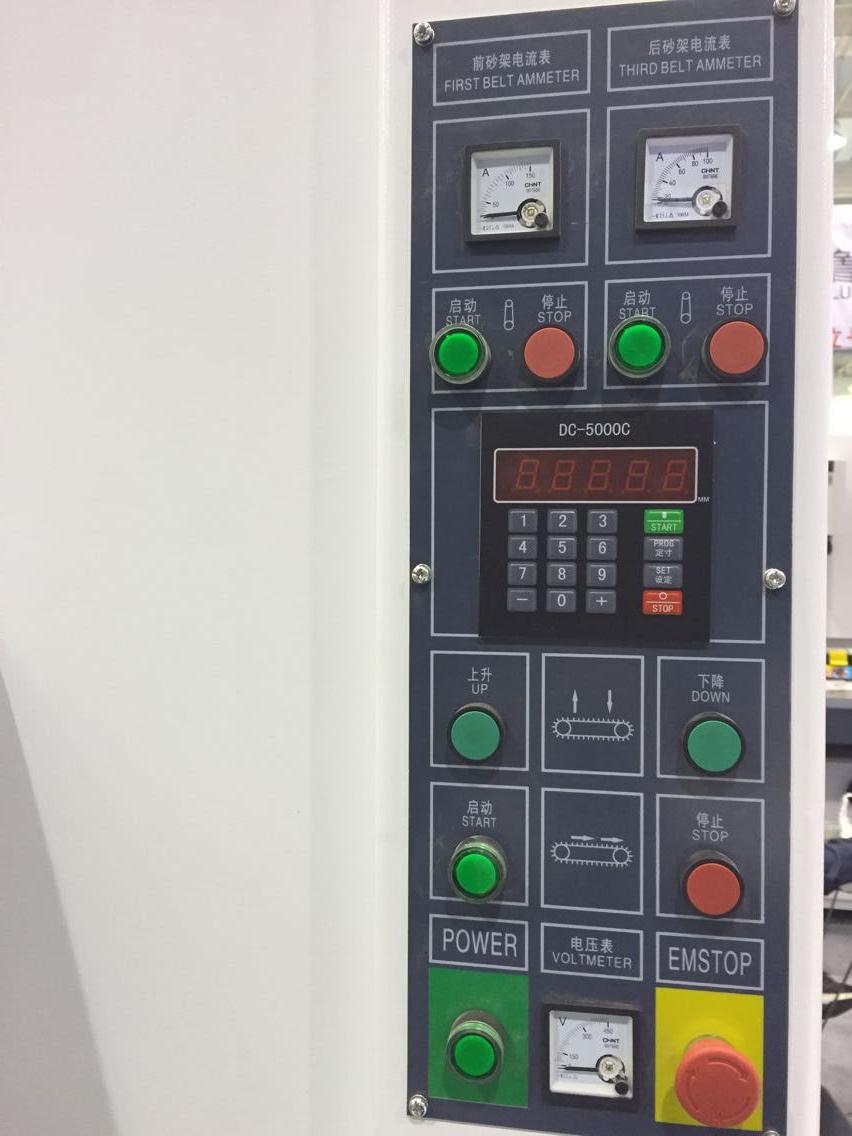

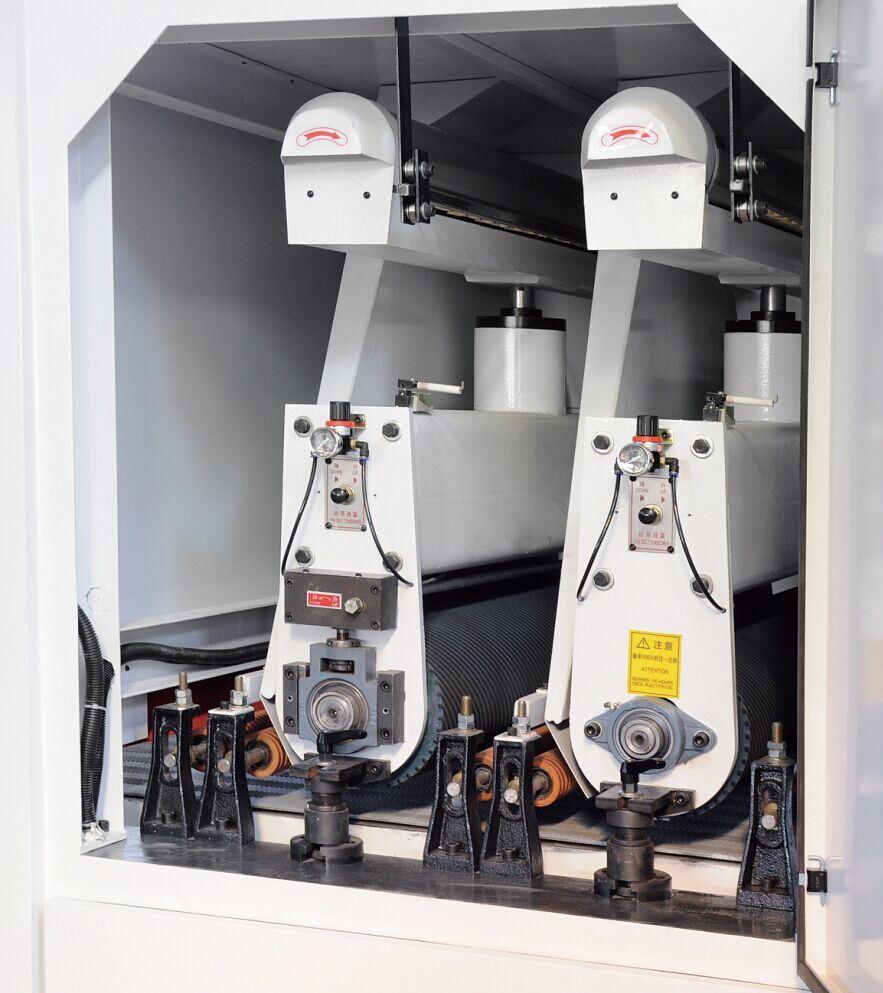

machine details ;

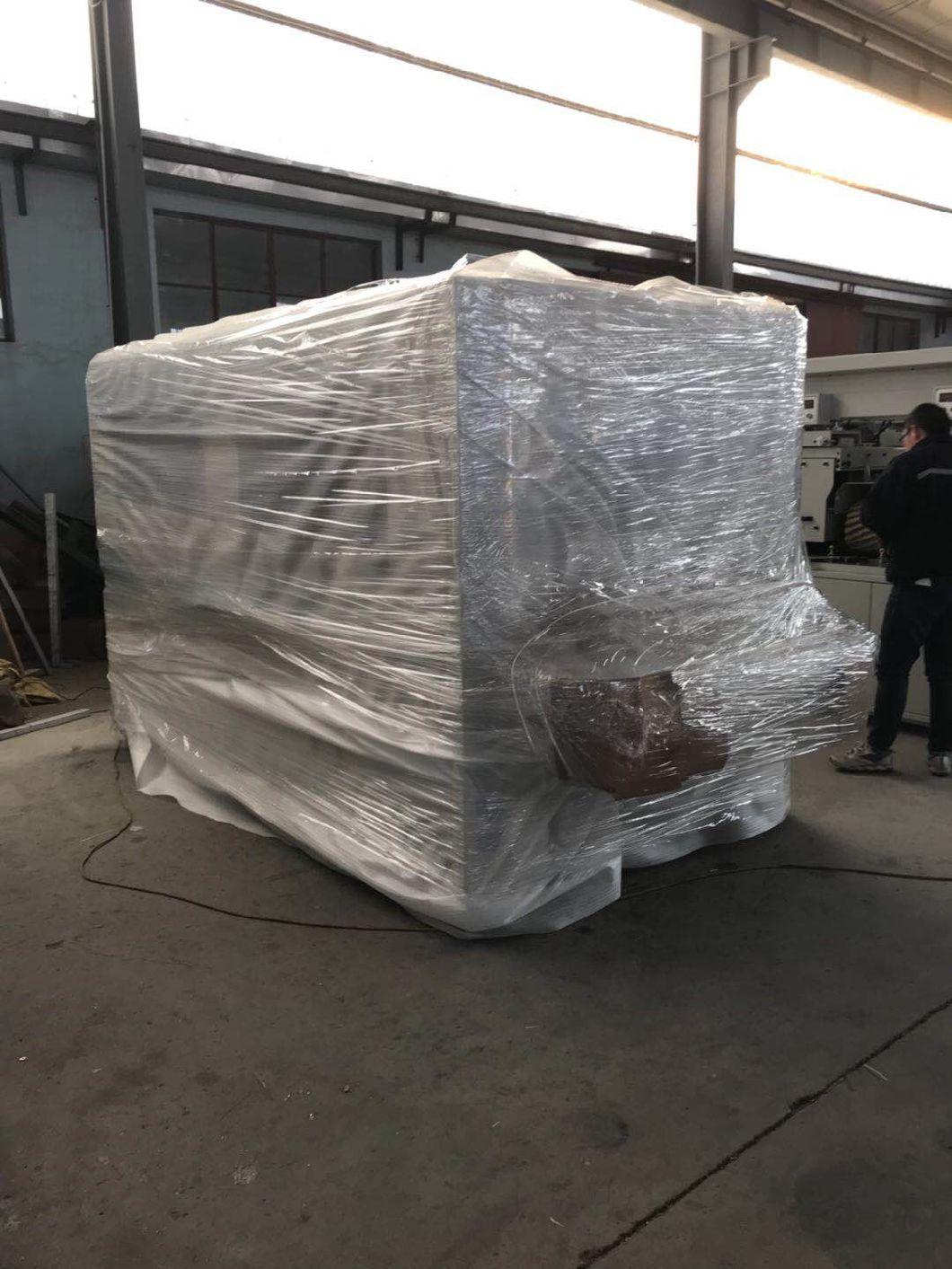

package :


Have any need, pls feel free to tell me
We will try our best to supply you the considerate service
