• Model NO.：FX1325ATC
• Driver：Anchuan (Yaskwa, Japan)
• Spindle：9kw Hsd Air Cooling Spindle with Auto Tool Changer
• Controlling Mode：CNC
• Feed Mode：Mechanical
• Spindle Number：Single-Spindle
• Spindle Layout：Vertical
• Color：Customized
• Customized：Customized
• Transport Package：Plywood
• Specification：1325
• Trademark：FLYING
• Origin：China
• HS Code：84649090
• Production Capacity：100PC,Month

Basic Info.

Model NO. FX1325ATC Driver Anchuan (Yaskwa, Japan) Spindle 9kw Hsd Air Cooling Spindle with Auto Tool Changer Controlling Mode CNC Feed Mode Mechanical Spindle Number Single-Spindle Spindle Layout Vertical Color Customized Customized Customized Transport Package Plywood Specification 1325 Trademark FLYING Origin China HS Code 84649090 Production Capacity 100PC/Month

Product Description

China leading manufacturer for cnc router and laser engraving cutting machine

Applications:
1. The model is a professional and efficient woodworking engraving machine, it suitable for large-volume, Joint processing of multi-model tool. Can be applied to furniture industry, solid wood furniture, solid wood doors, decorative materials, cabinet doors, computer tables, panel furniture, office furniture, wood Furniture industry, wood door, cabinets, kitchen, Chairs, decoration business, solid wood doors, Mould industry, wood panel, wave board processing, screen, calligraphy tablet design, relief, PVC and MDF sheet carving, Speaker system, kitchen utensils, and other wooden furniture processing.

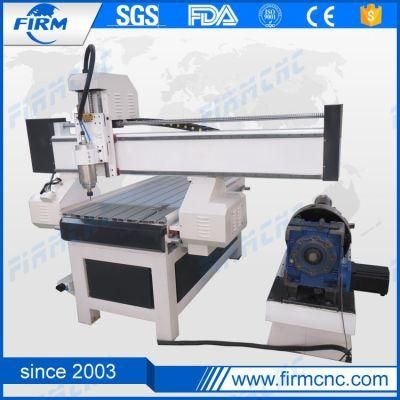

2. With the rotary axis, the machine also can do 3D engraving. Such as arts and crafts making, wooden pen holder engraving, bamboo and gift boxes engraving, handrails and railings engraving, table legs and bed legs engraving and so on.

Features:
Taiwan high precision H25 linear guide rail.

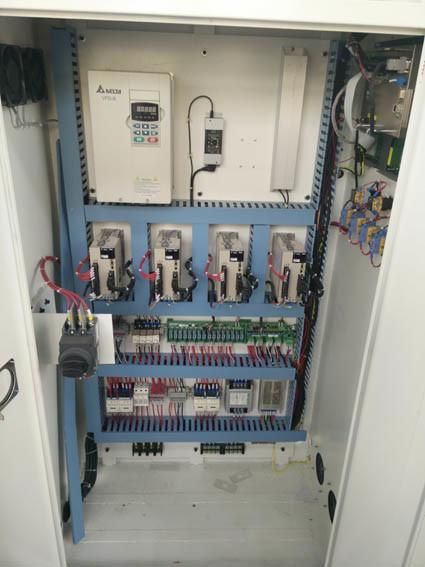

Anchuan (Yaskwa, Japan) servo motor, driver.
Syntec controlling system from Taiwan, easy to operate.

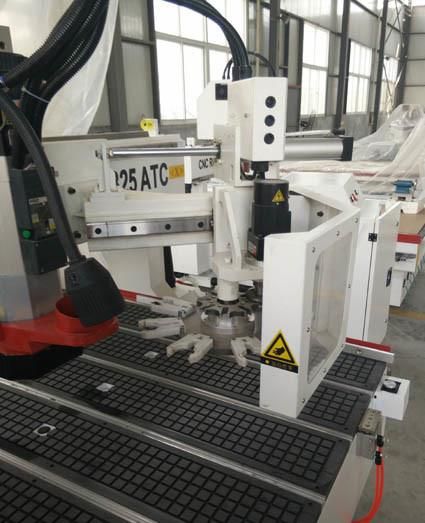

Cloak style automated ATC system, eight knives in storeroom, just eight seconds for one change.
6kw spindle imported from Italy(9kw/12kw as option).
Double rails and double sides driving system, heavy-cutting working machine.
High adsorption vacuum, reach 230 cube/hour

Specifications:

Working Area	1300*2500mm
Table Size:	1350mm*3100mm
Table Structure	Vacuum Table, T-Slot
Guide way	Taiwan HIWIN Square linear Guide Rail
Transmission	X Y Rack Pinion, Z Ball Screw
Processing Precision	0.01mm
Repositioning Precision	0.03mm
Self-consuming Power	2.8kw
MAX Speed	60m/min
Vacuum performance	230L/h

Spindle Power	Italy 9.0KW HSD Air Cooling Spindle
Spindle Speed	24000rpm/Min
Tool Magazine	Drum Type ATC, Capacity-8 Tool Changing Time-8 seconds
Driving System	YASKAWA Servo Motor System
Working Voltage	AC380V/3pH/50Hz
Operating System	Taiwan Syntec
Net Weight	2000KG
Gross Weight	2300KG
