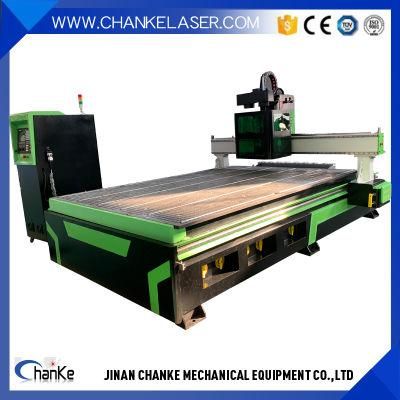

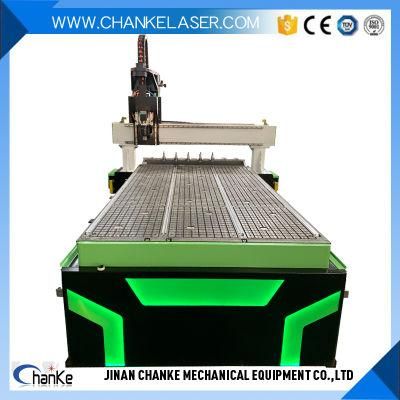

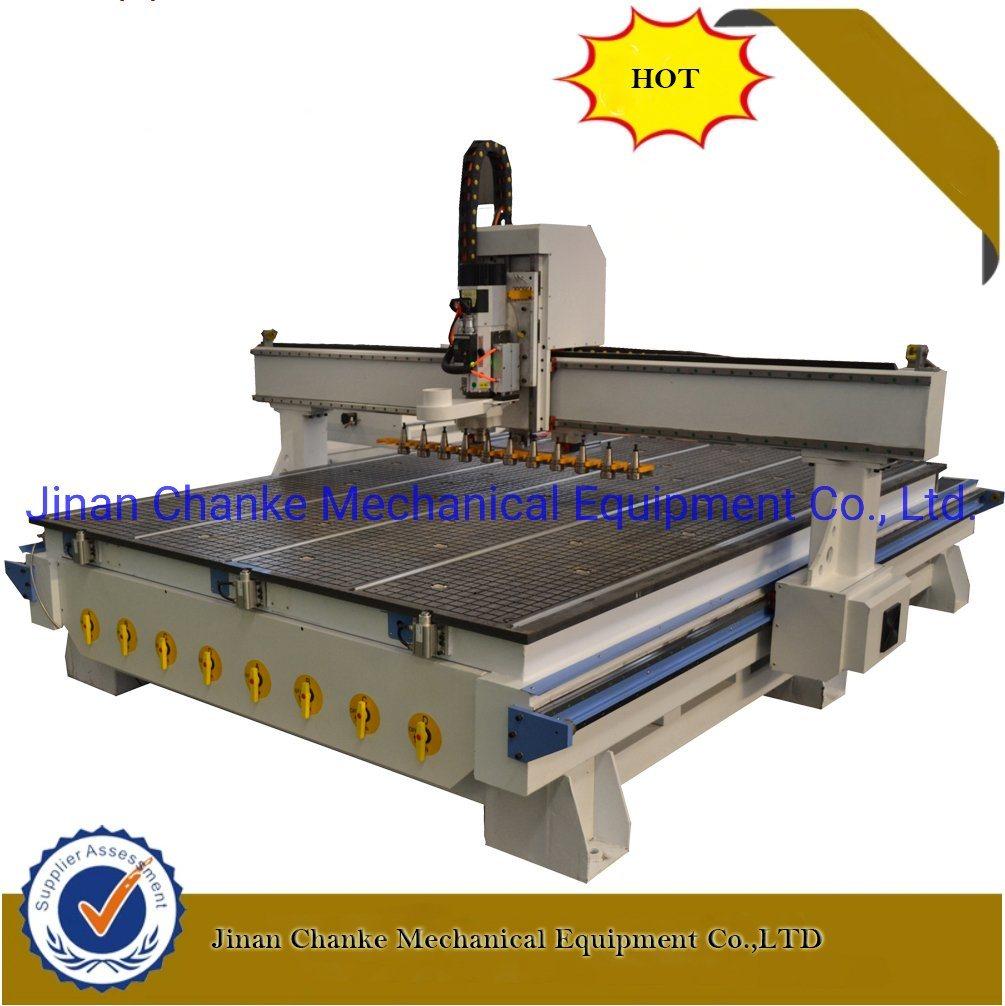

Ck1325 Atc 8 Bits Wood Acrylic MDF CNC Router for Furniture Producing
Jinan Chanke Mechanical Equipment Co., Ltd.- Condition：New
- Certification：ISO, CE
- CNC or Not：CNC
- Voltage：380V
- Transport Package：Plywood Packing
- Specification：3200x2800x500mm
Base Info
- Model NO.：CK1325
- Trademark：CHANKE
- Origin：Shandong China
- HS Code：8465990000
- Production Capacity：50 Set,Year
Description
Model
chanke-1325 ATC cnc router
X, Y Working size
1300*2500mm
Z feed Height
200mm/300mm
Table Surface
Vacuum table+ T solt
X, Y Structure
Rack and Pinion, Taiwan 25 Linear Square Guide Rail
Max. Power Consumption
(Without spindle) 2.0Kw
Max. Rapid Travel Rate
35000mm/min
Max. Working Speed
25000mm/min
Spindle Power
9 KW HQD air cooling spindle
Spindle Speed
0-24000RPM
Drive Motors
Working Voltage:
AC 380V /50/60Hz
Command Language
G code
Control System
SYNTEC 11MA/march 3 /NC studuio
X,Y,Z repositioning Accuracy
±0.01mm
X,Y Resolution
<0.01mm
Software
Artcam
Running Temperature
0 degree - 45 degree
Relative Humidity
30% - 75%
