• Model NO.：CK2030
• Origin：Shandong China
• HS Code：8465990000
• Production Capacity：50 Set,Year

Basic Info.

Model NO. CK2030 Origin Shandong China HS Code 8465990000 Production Capacity 50 Set/Year

Product Description

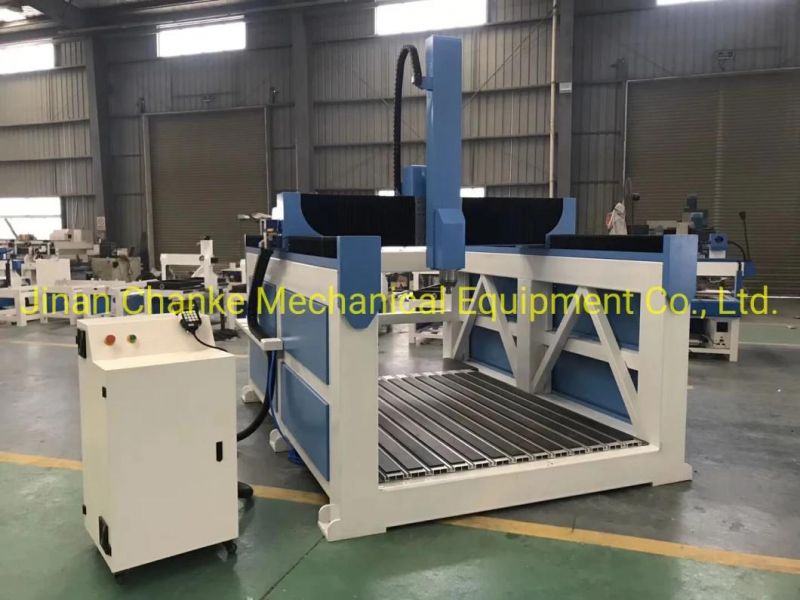

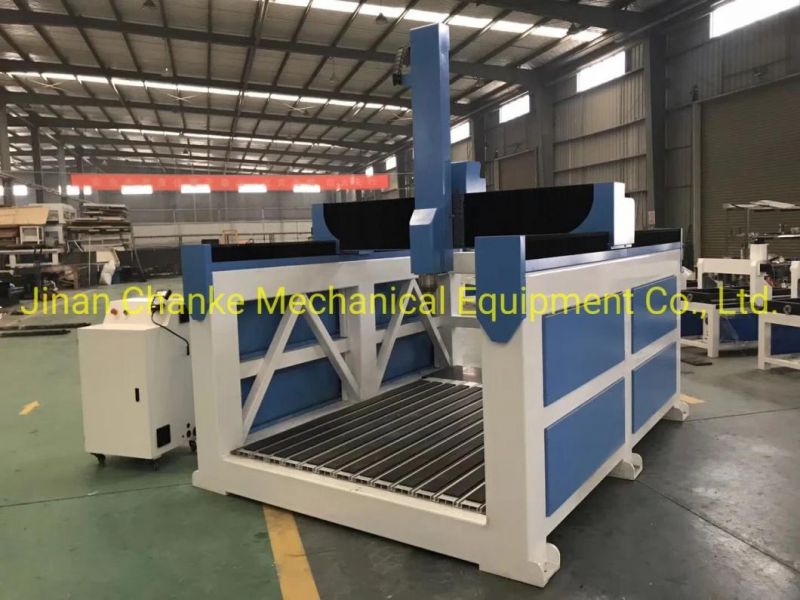

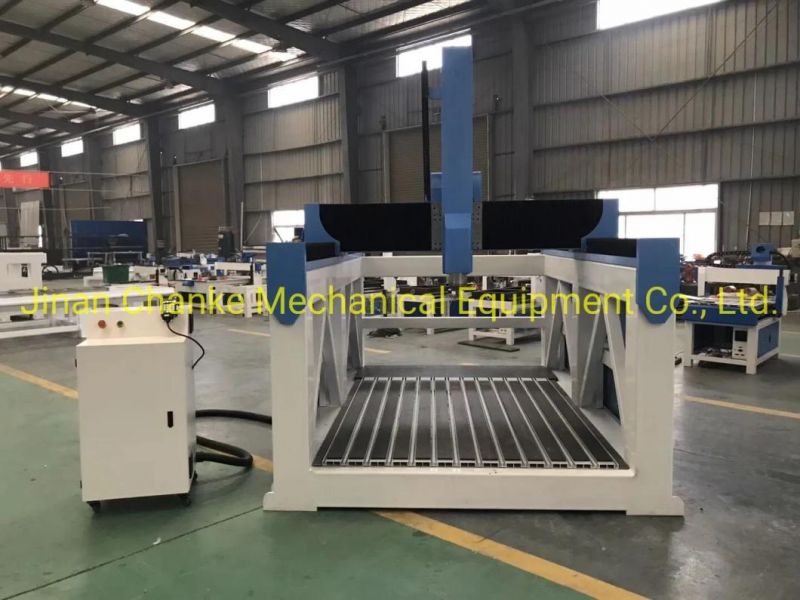

Styrofoam cnc router features

1. Whole machine is welded with seamless steel structure, with aging treatment.

2.Adopt Taiwan HIWIN high precision linear orbit. X and Y axes adopt rack and pinion transmission, fast working, high efficiency . Z axis adopts Germany and Taiwan ball screw,with high precision and long life time.

3. Well compatibility: CAD/CAM designing software e.g. Type 3/ Artcam/ Castmate/ Wentai etc.

4. The function of re-carving after break point and power failure. Has the function of forecasting process time.

5.Can choose updated DSP or Original Nc Studio control system.

6. Perfect oil-inject system makes maintenance much easier.

7. Good dust-collect function and Considerate Oil plate to keep the table always clean.

8. We provide the DSP operating instruction in English, a set of cutters, software, necessary tools and accessories for free.Technical Parameter

X,Yworking area	3000*4000mm
Lathe bed structure	T-extrusion,Thick Steel frame
Table surface	Aluminium T-slot with clamps
X structure	Rack and pinion, HIWIN linear square rail
Y structure	Rack and pinion, HIWIN linear square rail
Z structure	Ball screw, HIWIN linear square rail
Resolution	±0.02mm
Reposition accuracy	±0.05mm
Max. rapid	0-60000mm/min
Max. working speed	0-30000mm/min
Spindle power	6KW Air Cooling Spindle
Spindle speed	0-24000RPM
Working mode	Servo Motor &Driver
Working voltage	3 phase AC380V 50HZ/60Hz
Command code	G code(*uoo,*nc,*mmg, *plt)
Operating system	NCstudio/DSP/Syntec
Collet	ER32

Application & Sample

Styrofoam cnc router Application

1. Wood, EPS and non-metalic carbon hybrid materials.


2. Die and mold industries:
No-metalic mold: the machine is particularly suitable for automotive mold, Wooden ship model, wooden model aviation, trains and other wooden mold.


3. Musical instrument industry:
Can carve three dimension musical instrument, contour cutting.
