• Model NO.：RML9430M,9440M
• Origin：China
• Production Capacity：500 Sets,Month

Basic Info.

Model NO. RML9430M/9440M Origin China Production Capacity 500 Sets/Month

Product Description

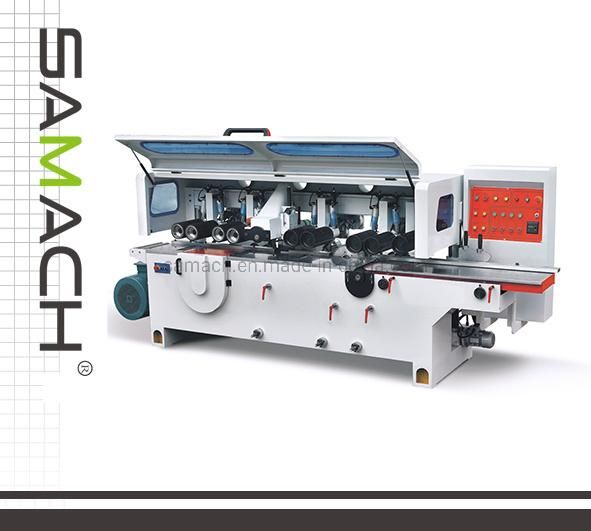

High Effiect Solid Wood Processing Machinery Planer Saw Machine

RML9430M/9440M

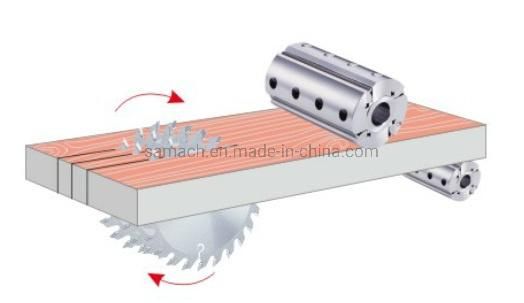

Diagram



Parameters


Technical data	RML9430M	RML9440M
Working width	300mm	300mm
Working thickness	20-100mm	20-100mm
Feeding speed(frequency)	6-18m/min	6-18m/min
Diameter of upper spindle	50mm	50mm
Rotating speed of upper spindle	6000r/min	6000r/min
Power of upper motor	7.5kw	11kw
Diameter of bottom spindle	50mm	50mm
Rotating speed of bottom spindle	6000r/min	6000r/min
Power of bottom motor	4kw	5.5kw
Diameter of spindle	50mm	50mm
Rotating speed of spindle	3600r/min	3600r/min
Diameter of blade	300-350mm	300-350mm
Power of spindle motor	30kw	37kw
Power of lifting motor	0.37kw	0.37kw
Power of feeding motor	5.5kw	5.5kw
Power of lifting motor	0.75kw	0.75kw
Total power	48.12kw	60.12kw
Air pressure	0.6Mpa	0.6Mpa
Overall size	4000x1250x1600mm	4000x1350x1600mm
Weight	3600kg	4200kg

Exhibition



Packing and transportation




Factory



Samach'S Service and dominants:

1: Professional team of techniques study and research, guarantee the Machine latest
and improving efficiency.

2.Knowing China and world markets well, offer professional soluttions.

3.Fast market reaction,  guarantee our partners always in front edge.

4.Supeiror Guarantees,quality of our machine and sell-after services.

5.OEM/ODM are available.

6.Principle: One cooperation, forever partners.

Contact us and Enjoy our Happy Coopperation Together.  Thank you for your time ^_^ !
