Chinese Manufacturer of High Quality CNC Double Face Milling Machine

Qingdao Samac International Trading Co., Ltd.
  • Type:Wooden Mold Router
  • Spindle Layout:Vertical
  • Spindle Number:Double-Spindle
  • Feed Mode:Mechanical
  • Controlling Mode:CNC
  • Certification:ISO

Base Info

  • Customized:Customized
  • Condition:New
  • Color:Customized
  • Transport Package:Soft Package
  • Specification:9400*3600*2200mm
  • Trademark:SAMACH
  • Origin:China
  • Production Capacity:300 Sets,Month

Description

Basic Info.

Customized Customized Condition New Color Customized Transport Package Soft Package Specification 9400*3600*2200mm Trademark SAMACH Origin China Production Capacity 300 Sets/Month

Product Description

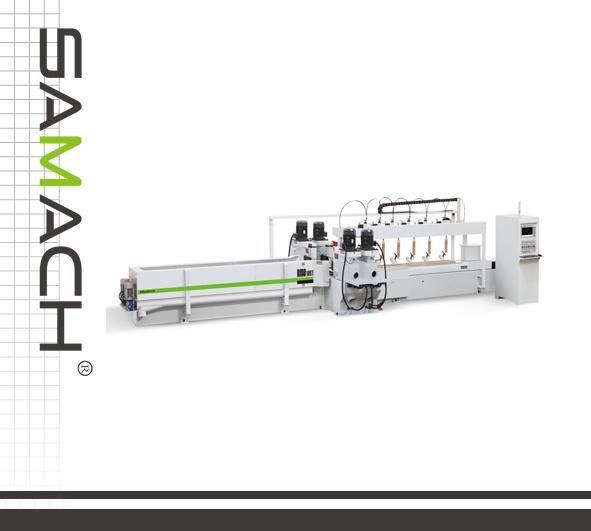

CNC Double-side Milling Machine RMJ-2TS/4TS/6TS/8TS
Chinese Manufacturer of High Quality CNC Double Face Milling Machine
Product parameters:
ModelRMJ-8TSRMJ-6TSRMJ-4TSRMJ-2TS
Processing length2500mm2500mm1500/2000/2500mm1500/2000/2500mm
Processing width15-400/15-600mm15-400/15-600mm15-400/15-600mm15-400/15-600mm
Processing height200mm200mm200mm200mm
Processing speed1-20m/min1-20m/min1-20m/min1-20m/min
Return speed100m/min100m/min100m/min100m/min
Tool shaft power7.5kw*4 /8kw(2p/4p)*47.5kw*4 /8kw(2p/4p)*47.5kw*4 /8kw(2p/4p)M7.5kw*4/8kw(2p/4p)*4
Knife shaft speed9000r/min-3000r/min9000r/min-3000r/mirt9000r/min-3000r/min9000r/min-3000r/min
Spindle diameterΦ40Φ40Φ40Φ40
X-axis transmission power2kw/3kw2kw/3kw2kw/3kw2kw/3kw
Y_axis transmission power1kw*81kw*61kw*41kw*2
Total power72kw55kw38kw20kw
Dimensions9400*3600*2200mm9000*3600*2200mm6600*3600*2200mm
7600*3600*2200mm
8600*3600*2200mm
5500*3600*2200mm
6500*3600*2200mm
7500*3600'2200mm
Weight9.5t7.8t5.5t3.6t

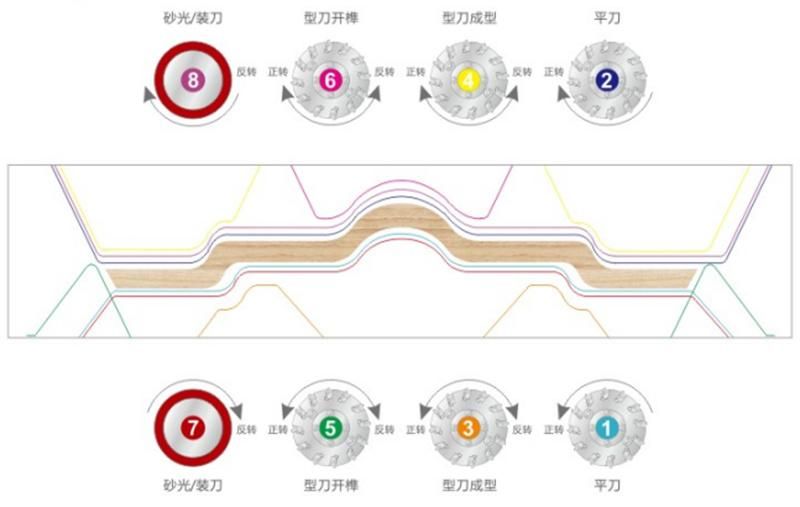

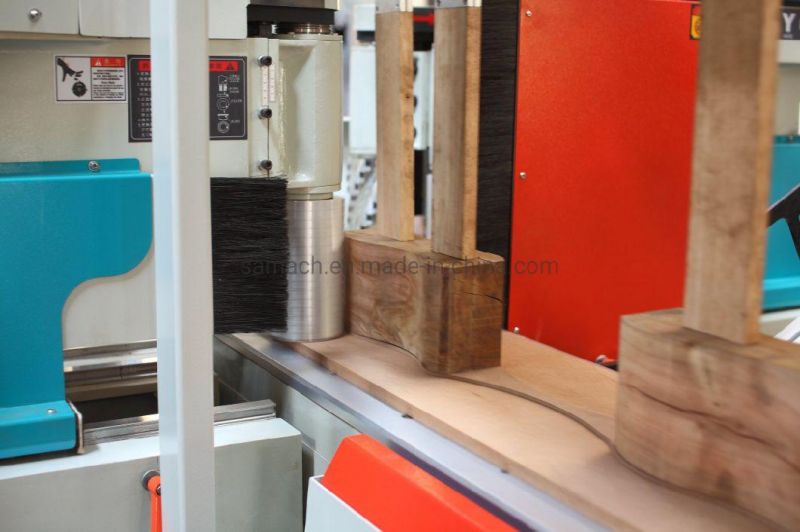

Machine Processing Diagram:
Chinese Manufacturer of High Quality CNC Double Face Milling Machine
Chinese Manufacturer of High Quality CNC Double Face Milling Machine

Machine Performance Characteristics
1. Numerical control equipment for bilateral precision milling, forming, tenoning and sanding of special-shaped products.
 2. Germany original beckhoff (Beifu) CNC system, with independent research and development of operating software, easy to learn and understand, simple and fast operation, powerful control, high precision, responsive, can be connected to the external network, remote control equipment, equipment Perform remote maintenance.
 3. One-piece body design with imported transmission accessories, making the processing stable and durable, to achieve high-speed precision machining.
  4. Europe imported cutting power assembly, the main shaft is made of German mold steel grinding, with Swedish SKF high-speed bearings.

5. Shaft steering mode: specially designed for anti-loose function (the cutter shaft can be rotated forward and backward), the shaft can be selected according to the direction of the wood grain, the plane profile processing, forming, sanding, overcoming the reverse grain, chamfering angle, and improving the processing effect.

6.  The processing efficiency is 3-5 times higher than the traditional processing efficiency, and the production cost is lower and the efficiency is higher.


Machine Configuration

1. Independent research and development operating software.

Chinese Manufacturer of High Quality CNC Double Face Milling Machine

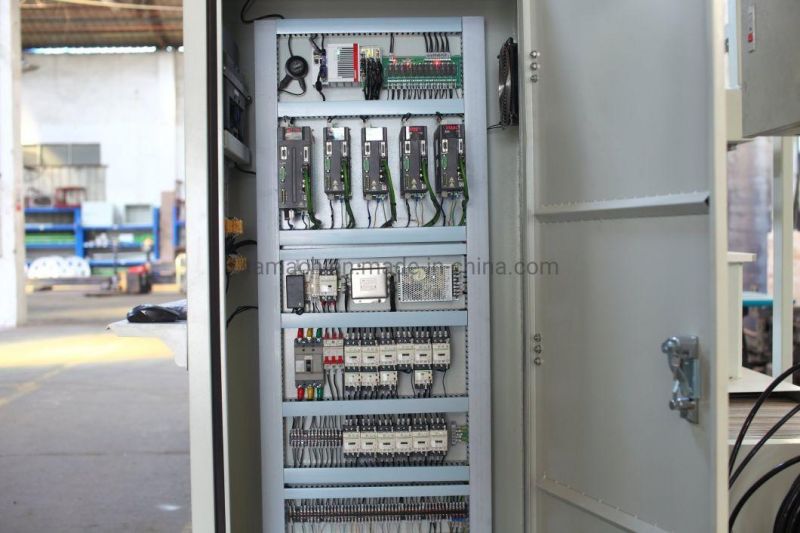

2. Germany beckhoff system, Taiwan delta drive system.

Chinese Manufacturer of High Quality CNC Double Face Milling Machine

3. France schneider electric components.

4. One-piece high-speed mechanism design


Chinese Manufacturer of High Quality CNC Double Face Milling Machine

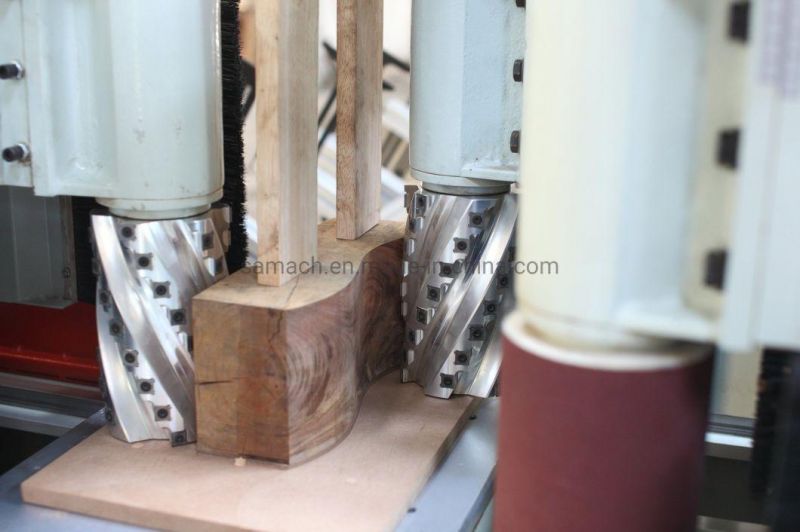

5. Heavy cutting mechanism.

6. Sanding mechanism.


Chinese Manufacturer of High Quality CNC Double Face Milling Machine

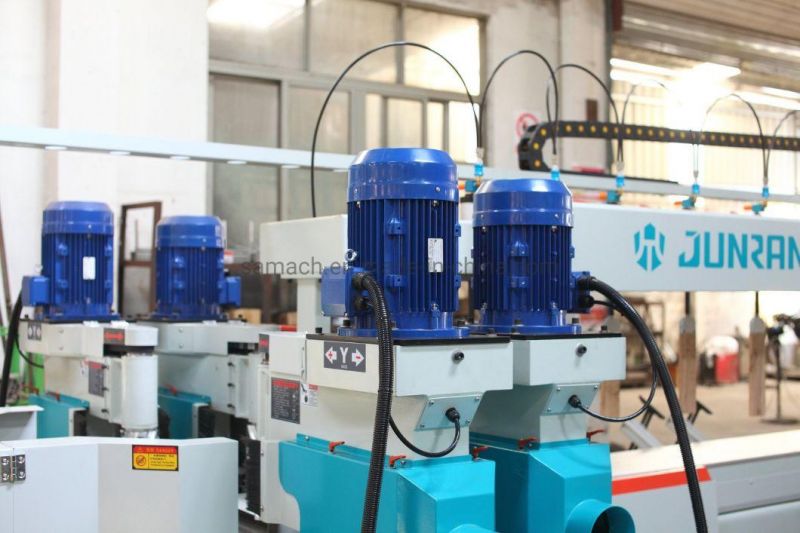

7. European imported two-speed moto.

Chinese Manufacturer of High Quality CNC Double Face Milling Machine

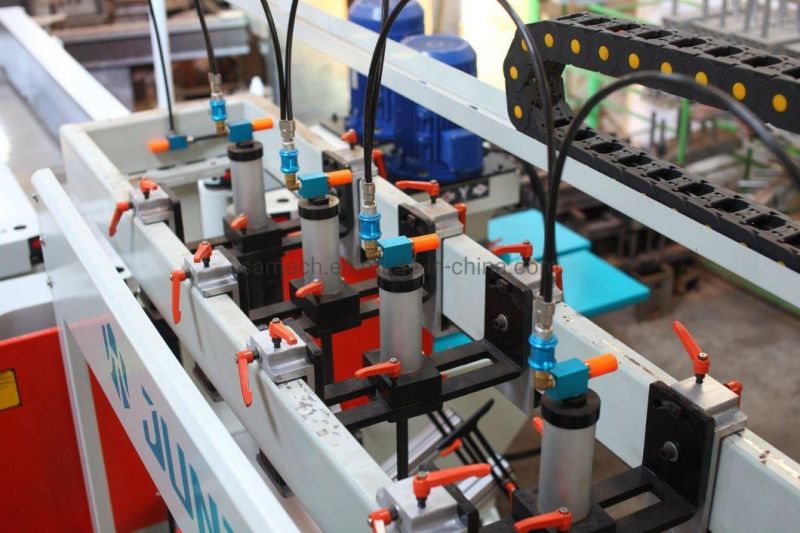

8. Multi-directional pressure cylinder with fast valve.

Chinese Manufacturer of High Quality CNC Double Face Milling Machine
9. Dust removal system adopts automatic spiral dust collection.

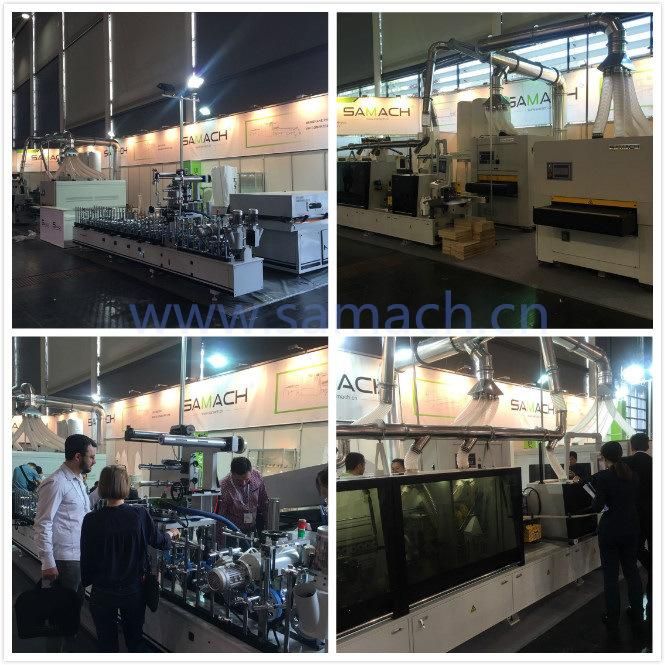

Exhibition

Chinese Manufacturer of High Quality CNC Double Face Milling Machine

Packing and transportation

Chinese Manufacturer of High Quality CNC Double Face Milling Machine

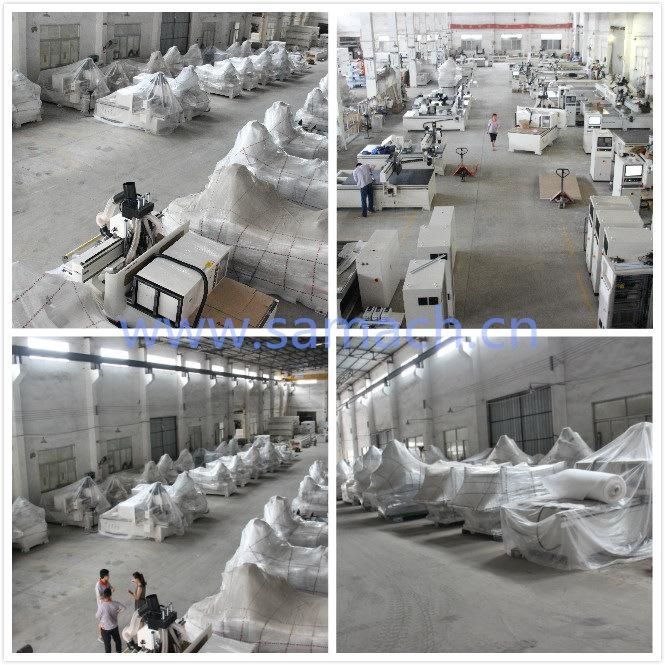

Factory
Chinese Manufacturer of High Quality CNC Double Face Milling Machine
Samach'S Service and dominants:

1: Professional team of techniques study and research, guarantee the Machine latest
and improving efficiency.

2.Knowing China and world markets welloffer professional soluttions.

3.Fast market reaction guarantee our partners always in front edge.

4.Supeiror Guarantees
,quality of our machine and sell-after services.

5.OEM/ODM are available.

6.Principle: One cooperation, forever partners.

Contact us and Enjoy our Happy Coopperation Together.  Thank you for your time ^_^ !
