• Model NO.：MAC4,6-8A
• Control：Delta PLC
• Color：Costomized
• Speed Control：Yes
• Transmission Speed：0-35m,Min
• Working Efficiency：300 PCS, Hour
• Drive Reducer：Newstart Reducer
• Finished Panel Counter：Yes
• Transport Package：Standard Export Packing
• Specification：13000mm*4000mm*2600mm
• Trademark：METROMACH
• Origin：Linyi City, China
• HS Code：846599000
• Production Capacity：300set,Year

Basic Info.

Model NO. MAC4/6-8A Control Delta PLC Color Costomized Speed Control Yes Transmission Speed 0-35m/Min Working Efficiency 300 PCS/ Hour Drive Reducer Newstart Reducer Finished Panel Counter Yes Transport Package Standard Export Packing Specification 13000mm*4000mm*2600mm Trademark METROMACH Origin Linyi City, China HS Code 846599000 Production Capacity 300set/Year

Product Description

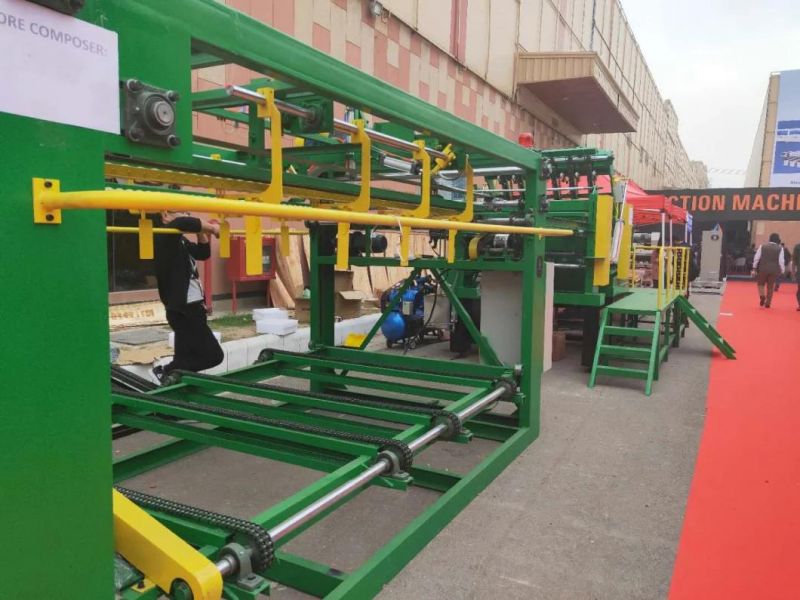

Product DescriptionPlywood Core Veneer Automatic Composer Machine
1. Product Features

1. Simple operation and labor saving. From feeding, correction, cutting to gluing, splicing, stacking. All of them are finished one-time automation.
2. The whole machine servo drive, precise control, save materials, increase speed and reduce cost.
3. High-precision control of the servo motor combined with a unique synchronous drive ensures effective control of overlap and separation.
4. Dedicated high temperature, high strength wire enhances the product's longitudinal tensile strength and toughness. The effct used on thin plate is more significant.
5. The rapid cooling system allows the hot melt adhesive line to be more evenly attached to the bottom of the board.
6. High-precision encoder counting, the finished product cutting error is smaller.
7. Touch operation sets the same head, tail size, cutting width and other parameters, more convenient and flexible.
8. After using the middle plate splicing machine, the labor will be greatly saved (Save 70% assembling work, about 80% plate repair workers, and about 50% putty workers) and improve the product quality and grade of the finished board.

2. Technical Parameters

Items	MAC4/6-8A
Transmission Speed	0-35m/min Adjustable
Composing Machine Length(mm)	3600
Composing Machine Height(mm)	2500
Composing Machine Width(mm)	2600
Stacker Length(mm)	4000
Stacker Height(mm)	2500
Stacker Width(mm)	2200
PLC Computer Model	DELTA PLC(Tai wan)
Front Driver	Siemens servo motor 3.5kw
Rear Driver	Siemens servo motor 3.5kw
Edge Cutter Driver	Motor + CHAIN TAIL clutch brake (Tai wan)
Front driver reducer	Newstart reducer 8/1 (CHINA)
Rear driver reducer	Newstart reducer 8/1 (CHINA)
Rotary actuator	FESTO (Germany)
Working efficiency	300pcs /hour
4*4-4*8 electric conversion	Yes
Overall Dimension	13000mm*4000mm*2600mm
Weight	6500kg
The Total Power	16.5kw

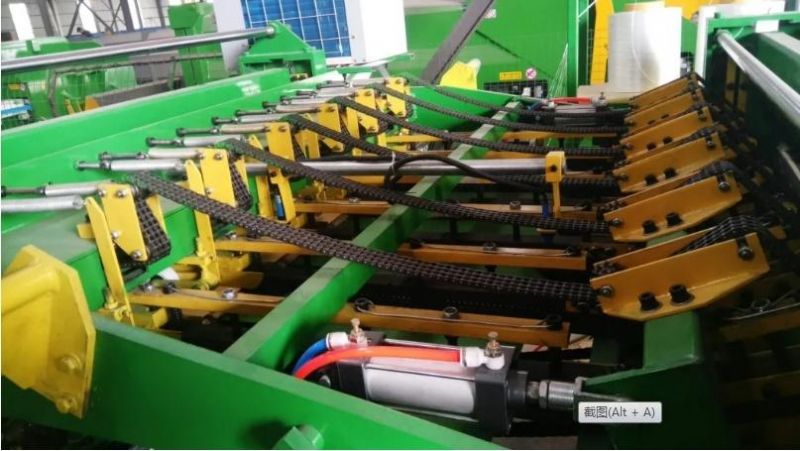

3. More Pictures
